45mm Auto LED Pixel Light

Application:

1. It's widely applicated on the game machine ,
2. Bumper cars,
3. Carrousel,
4. Scooter car,
5. Luna park sign etc...
Email: inquiry@ipixelleds.com
Share to

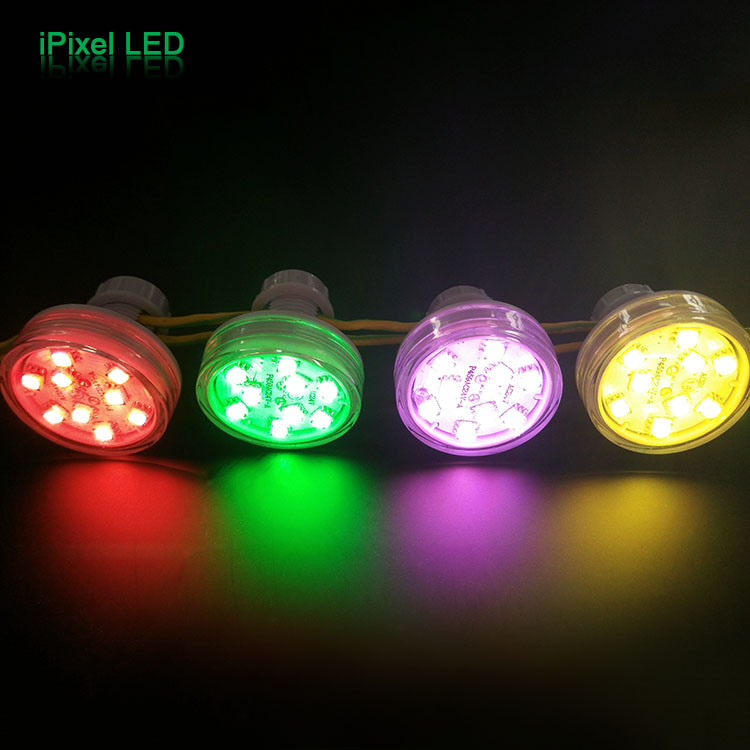

45mm Auto LED Pixel Light
Product Parameter:
P/N Light source LED Qty
Diameter Beam angle Voltage
Power
(W/PCS)
Control
MCD/
PCS
Waterproof
P459ACV24 5050 RGB 9pcs
45mm 140 deg. AC24V
1.8W
Automatic
R6300/G14400/
B4 600
IP:20



Features:

1.Color inside the Micro chip each circulation lasting 8 minutes ,16 pcs LED per set;
2.The control chip has memory function,when you stop and restar the light;
3.All color will runing at the stop status;
4.The main Advantage compare to our other pixel :dont request any controller;
5.AC24V,2 wire , easy and simple connection;
6.It's non-waterpoof for indoor only;

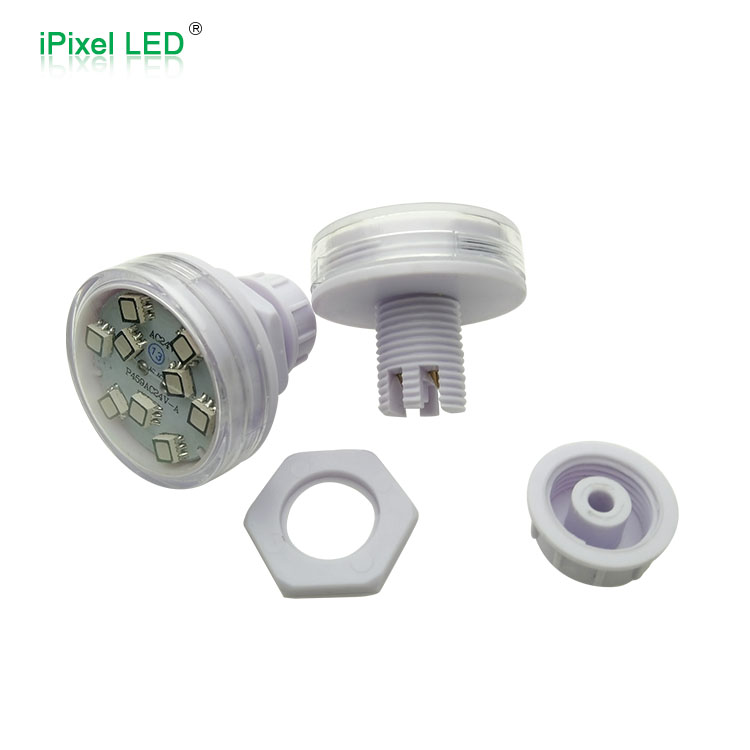

7.Each pixel included 1 plastic screw and 1 screw cap.

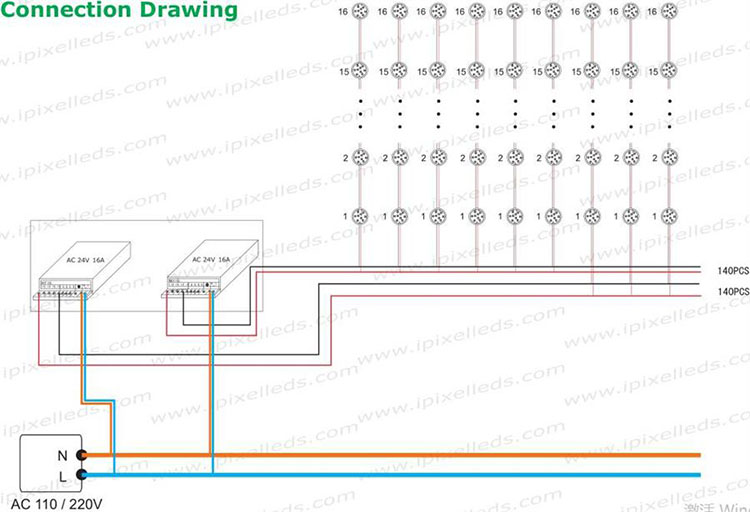

Connection:


Youtube's  Video
