LED Pixel Light
25mm LED pixel light

Application:

1. rides,carousels

2. amusement attractions
3. luminous signs
4. Luna Park signs

5. Casino lighting

Email: inquiry@ipixelleds.com

Share to

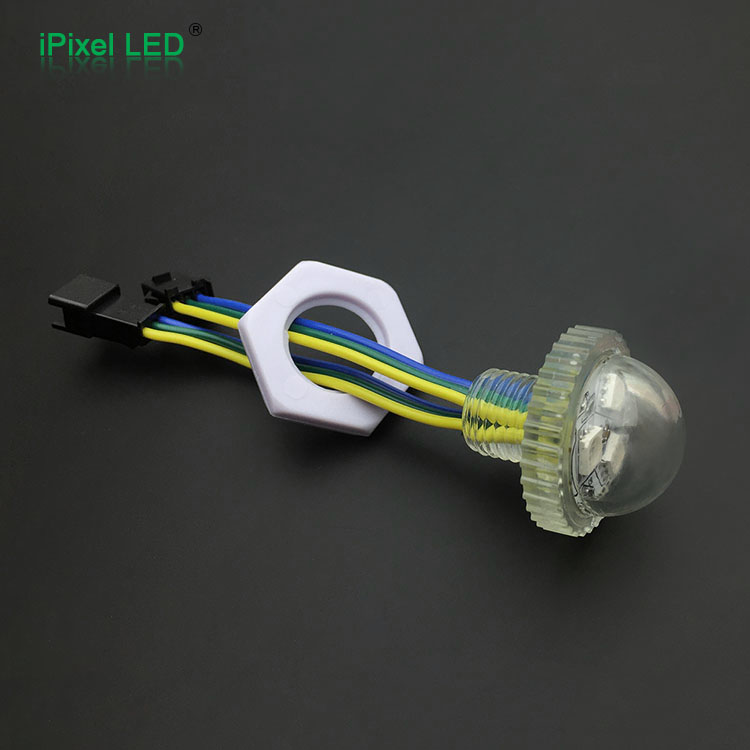

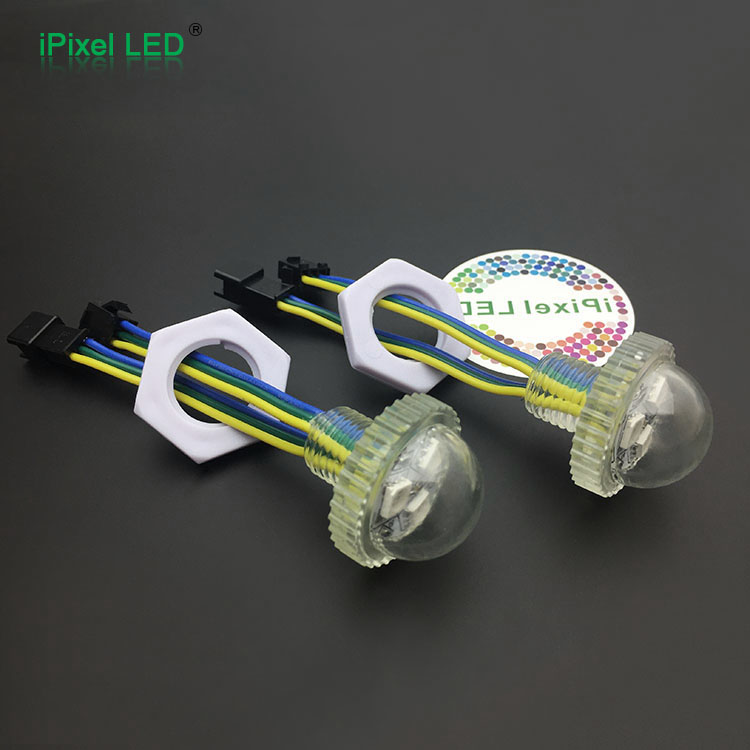

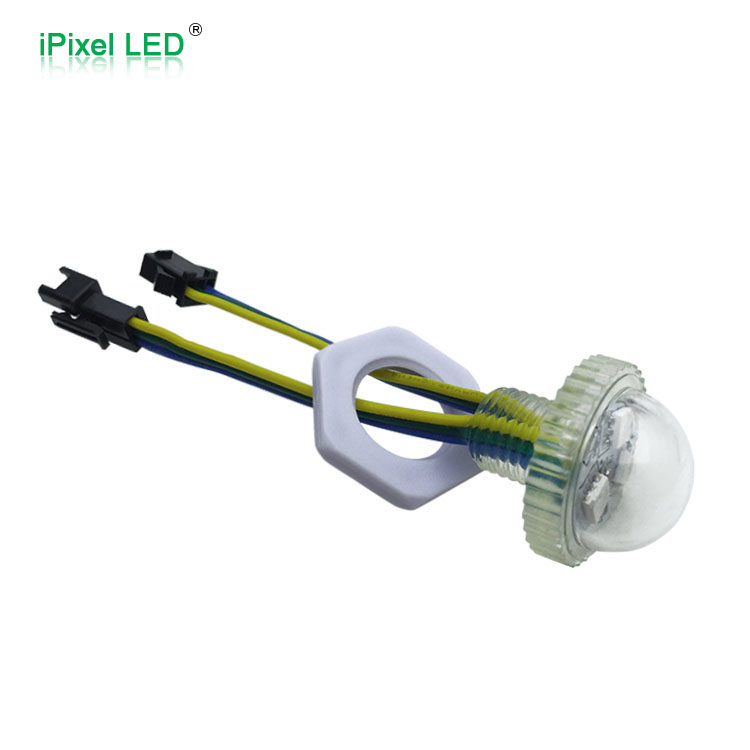

25mm LED pixel Light

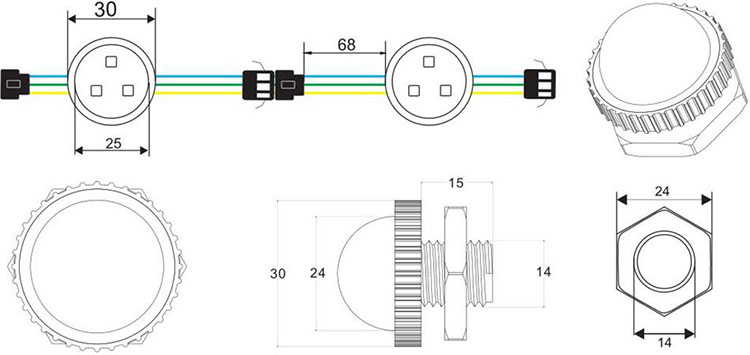

Product Parameter:

P/N LED
Quantity
Diameter
(mm)
Light source
Voltage
(v)
Power
(W/PCS)
IC module
Size(mm)   Waterproof
P25V12 3PCS Ø25
 5050 RGB 12
0.72W
UCS1903
H33*W30mm IP20


Features:
1.Clear PC body waterproof IP67,
2.Each pixel attached a pair JST SM Connector IP20,
3.Cable length can be customizable,

4.Control by SD controller or DMX device,


     New type 25mm led pixel developed based on our 26mm,Some customer post feedback that they have to drill a 26mm hole on the Panel for installtion, the big hole spent lots of time and waste material.So we changed the base (holder) to 14mm size.But the ic chip, leds are the same as old one which you can combine it Or you can replace the old one by new version.

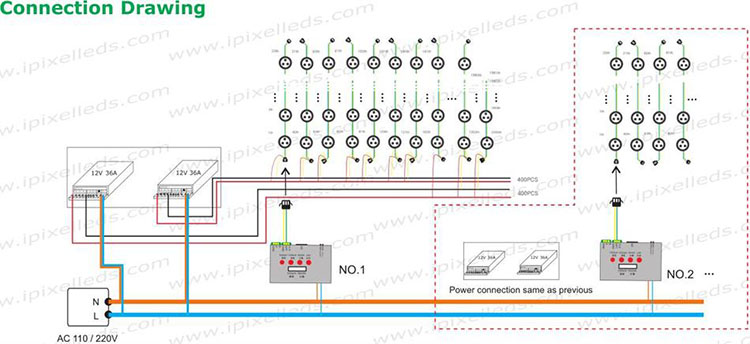

Connection:

Last: 38mm LED pixel Light
Next: 60mm Cabochon Cap LED Pixel
