Application:
1. Outdoor digital sign letters,
2. digital panel ,
3. Dance Floor ,
4. Christmas Tree lighting etc.

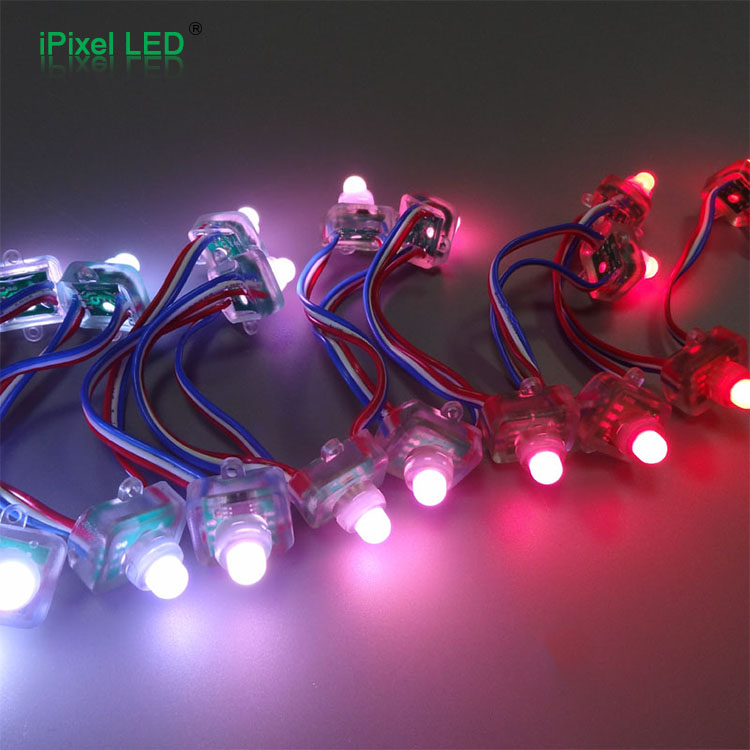

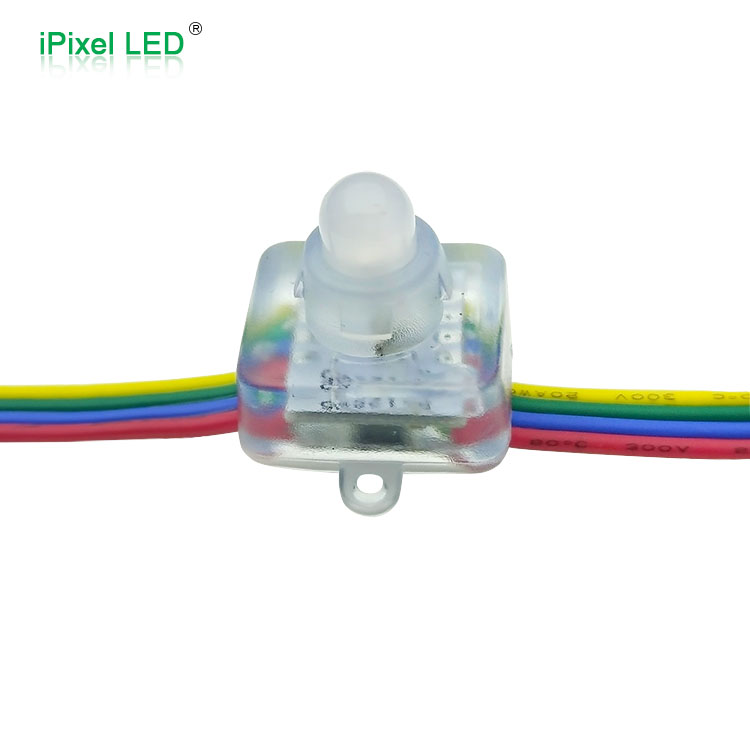

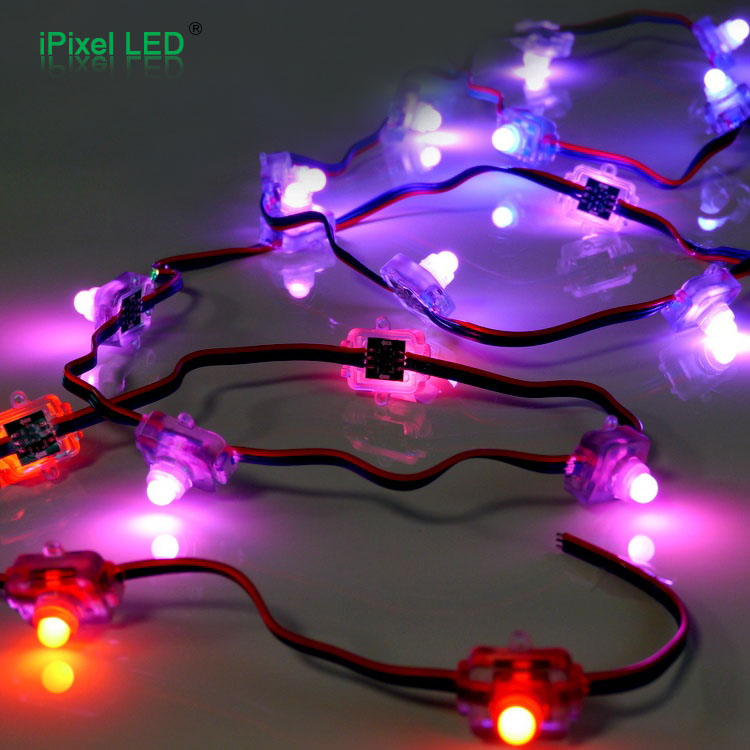

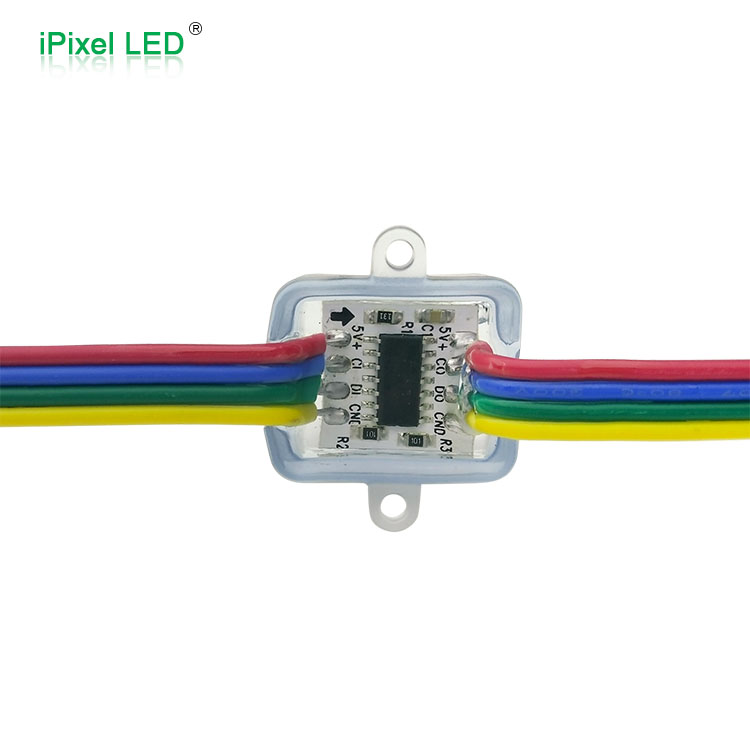

12mm Square LED Pixel Light
Product Parameter:
| P/N | VCC | LED Qty |
Diameter |
View angle |
Power | LED | Chip |
Lumen per
/50LED
|
IP |
| P12SV5 | DC5V | 50/chain | 12mm |
120 |
15W/chain | 5050RGB | WS2801 |
R35/G160/B27 lm |
IP67 |
1.This square (flat) pixel made by F8 DIP RGB LED and,
2.The drive by WS2801 chip cable length between each,
3.Pixel 8mm and stardard quantity its 50 pcs per chain,
4.It's Cut-able of each LED ,the Arrow on button of LED,
5.Directing the signal's input IP67 epoxy waterproof,
6.Control by:SD controller ,DMX decoder.
