Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

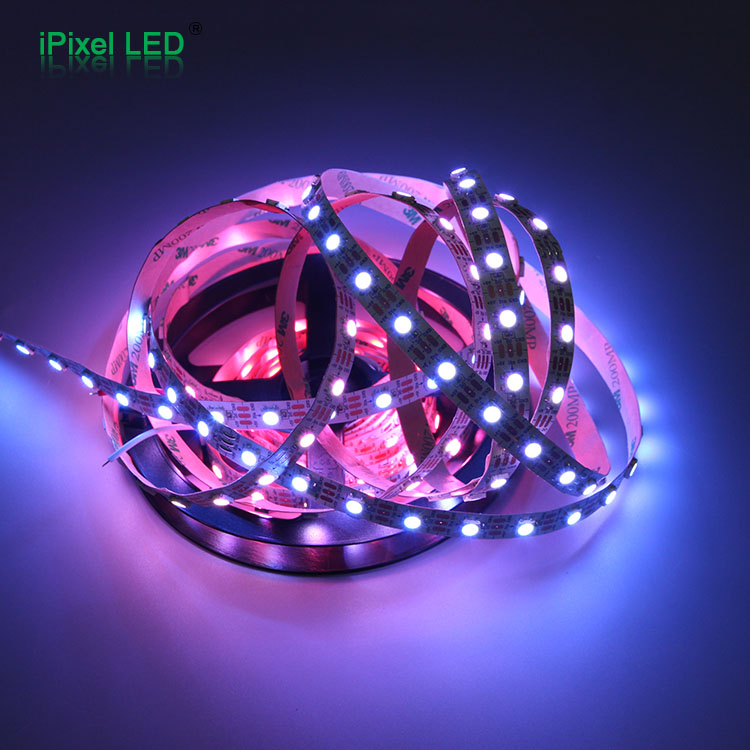

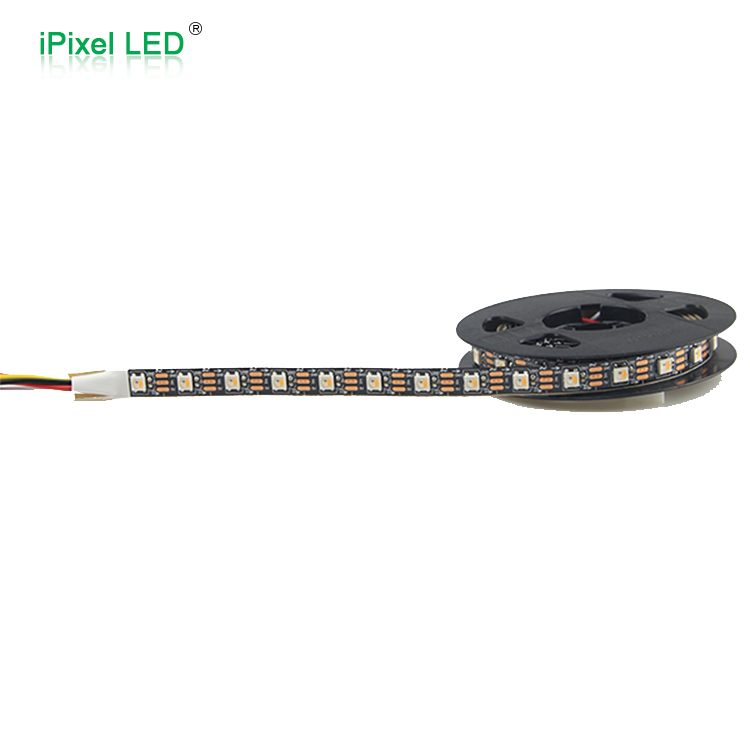

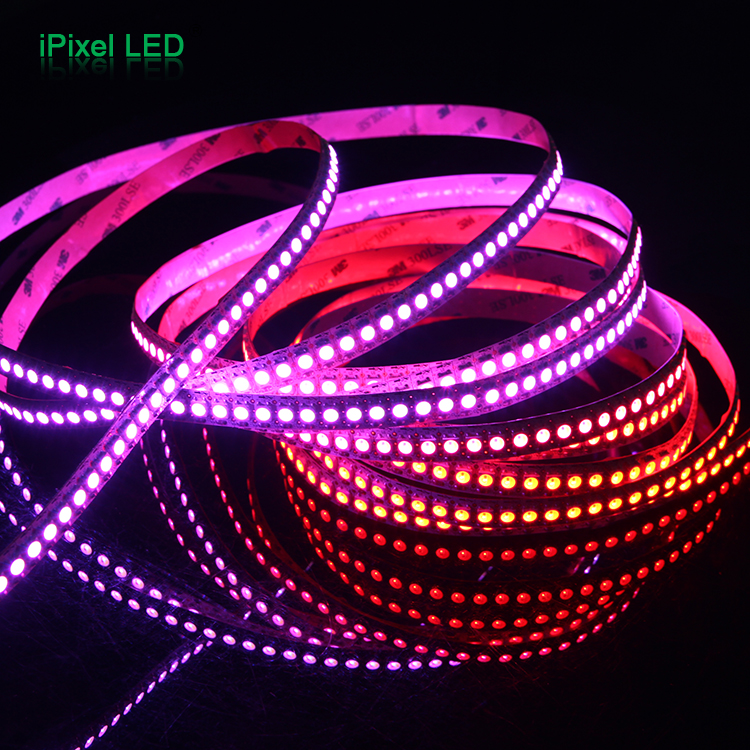

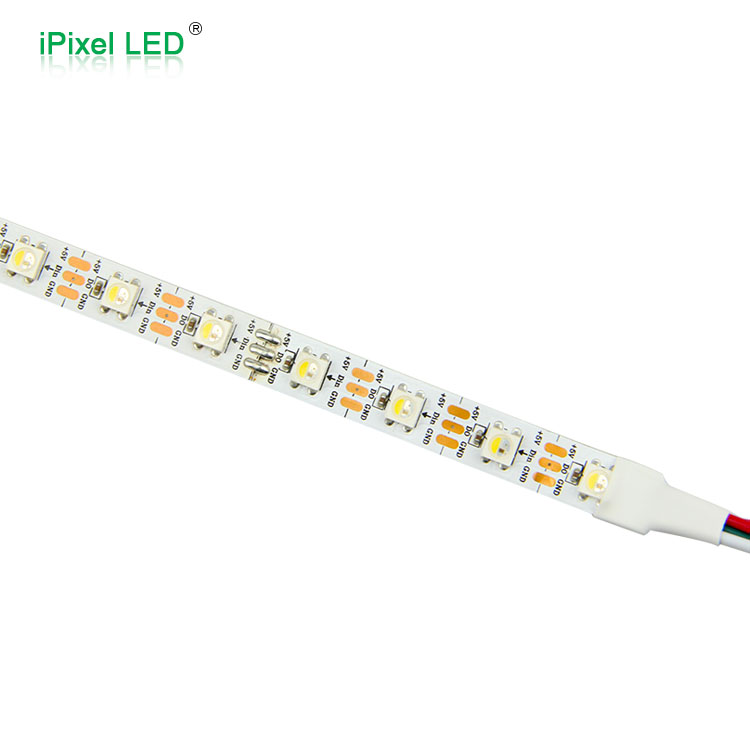

SK6812 RGBW/WW LED Strip
Product parameter:
|
P/N |
Beam Angle |
Light Source |
LED Qty |
Voltage |
Power(W/M) |
Emitting Color |
Luminance(K/m) |
Wavelength (nm/m) |
IP |
|
S012144CA4SA5 |
144 deg |
SK6812 leds |
144leds/m |
DC5V |
36w/m (max) |
RGBW |
6000-6500 |
R:620-630 G:515-525 B:460-470
|
IP20/IP65 |
|
SK606812 |
120 deg |
SK6812 leds |
60leds/m |
DC5V |
20±1W |
RGBW |
6000-7000 |
R:620-630 G:515-525 B:460-470
|
IP20/IP65 |
|
RGBWW |
2700-3200 |
Features:
1. Control IC included, supporting numerous .Color-change effects,
2. Pcontrol by SD controller,Arduino,DMX512,Artnet,
3. Flexible PCB 5V low voltage input,
4. PCB Color: White ,Black
5. Absolutely addressable ,each IC built inside RGB LED,
6. 5M per roll,Customised length available .

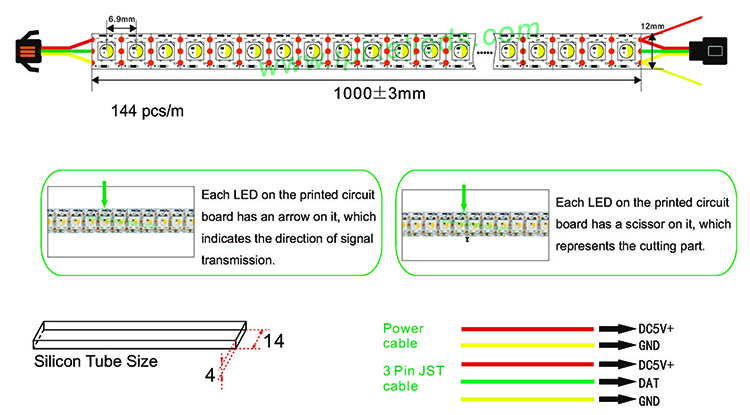

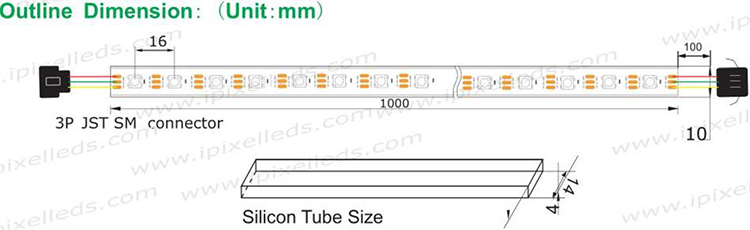

Connection:
S012144CA4SA5
SK606812
