Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
DMX LED Tube-16 Pixel
Product Parameter:

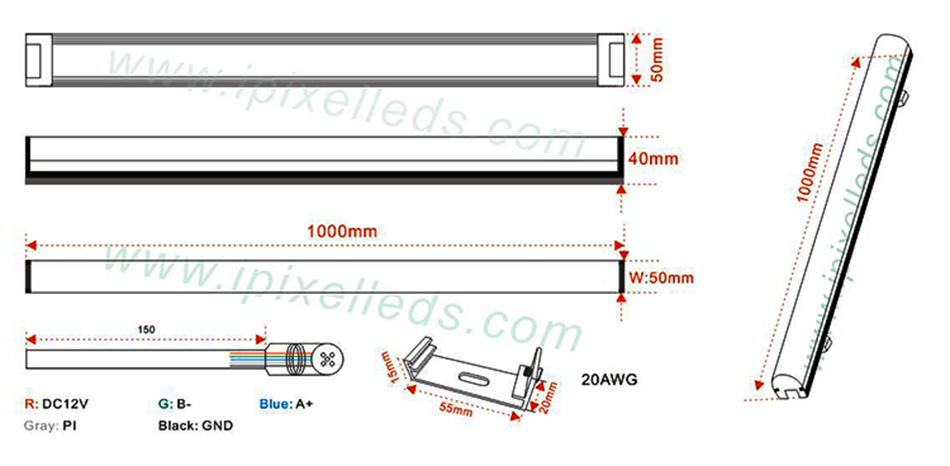

P/N | Size/m |
Beam Angle |
VCC | Power | Protocol | Channel | LED Qty/m |
MCD per LED |
IP |
B4816V12 | 1000*50mm | 140 deg | DC12V | 14W/M | DMX512 | 48CH | 3535 RGB 48leds | R800/G2100/B480 | IP65 |
B4808V24 |
1000*50mm |
140 deg |
DC24V |
14W/M |
DMX512 |
24CH |
5050 RGB 48leds |
R800/G2100/B480 |
IP65 |

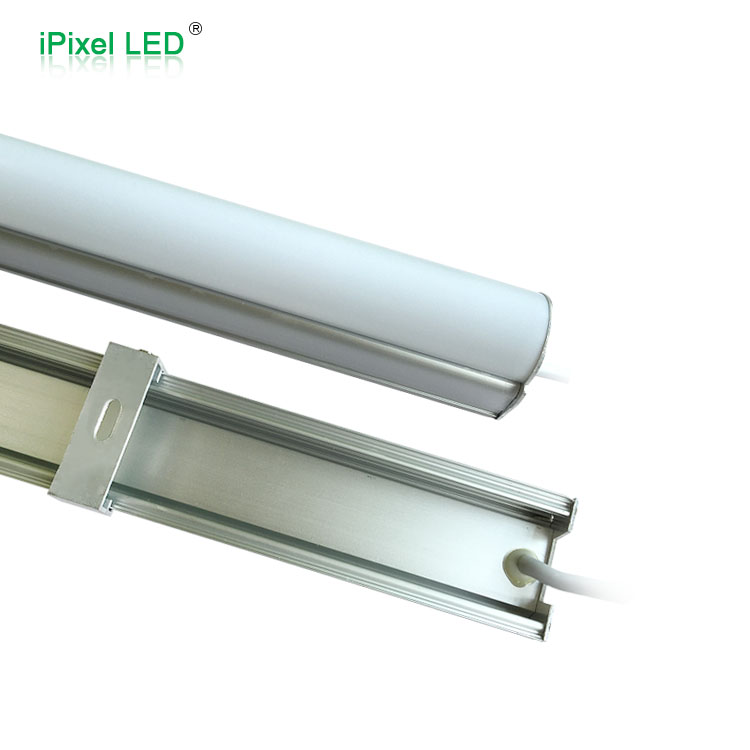

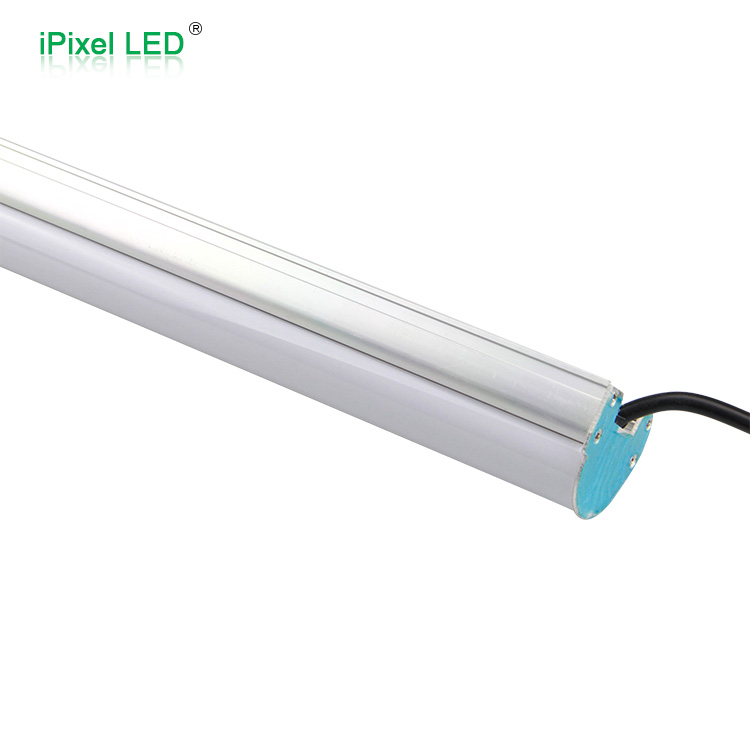

1.This DMX Control LED Tube designed by Aluminum case with a Milky,
2.white PC lens on top of the profile, but we also offer clear lens,
3.The whole tube had 16/8 Pixel which is 48/24ch DMX address,
4.48pcs supper bright Epistar SMD RGB LED,
5.each tube included 2pcs Aluminum clips,but without screw the clip can not change the angle after install to the wall,
6.every dmx tube attached a pair of waterproof 5Pin connector output from backside of profile, you can hide it with the power wire,
7.the length of connector 20cm,5Pin 20AWG copper wire in white PVC,

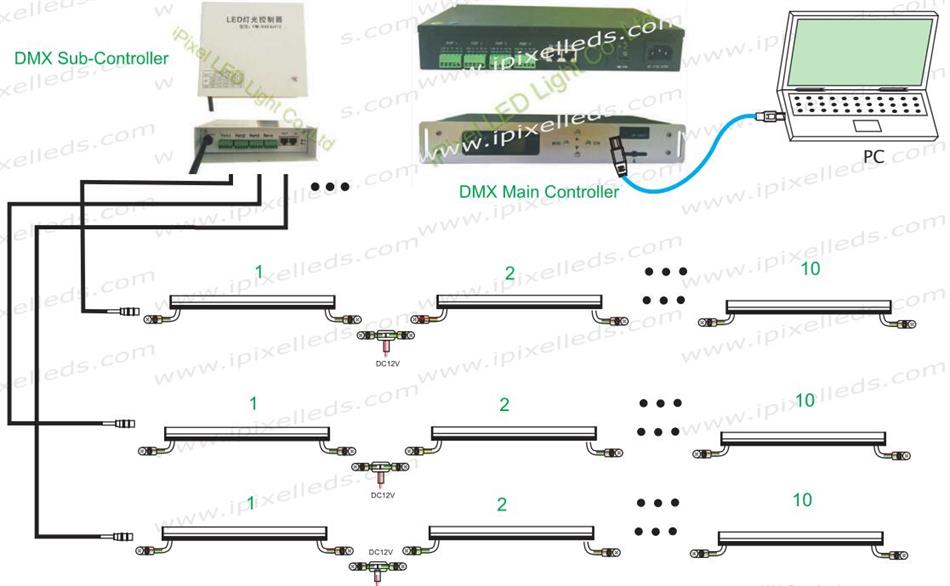

8.the tube didn't attach any T type (3 way) connectors for power injection it request to purchase seperately and we recommend every 5M tube supply power.
