1. Full color pixel light,pixel tube.
2. LED pixel light,led pixel module.
3. Pixel LED strip,led light bar.
4.Outdoor Lighting Engineering.
Supported chips:
LedEdit software that models
Single load number of lamp
TM1803,TM1804,TM1809,
TM1812,UCS1903
Support Chips
Notes
LPD6803,D705,1101,UCS6
909,UCS691
T-1000-6803
2048 pixels
LPD8806, LPD8809
T-1000-8806
2048 pixels
T-1000-TM
2048 pixels
TM1804 and TM1809 of high
speed
Standard DMX,HX512
T-1000-DMX
170/512 Pixel
Compatible with standard
DMX512 Protocol
WS2801,WS2803, WS2811
T-1000-WS
2048 pixels
TLS3001,TLS3002,TLS30
05,TLS3008
T-1000-TLS
2048 pixels
P9813
T-1000-P9813
2048 pixels
SM16715
T-1000-SM16715
2048 pixels
SM16716
T-1000-SM16716
2048 pixels
BS0815,BS0825,BS0901
T-1000-0815
2048 pixels

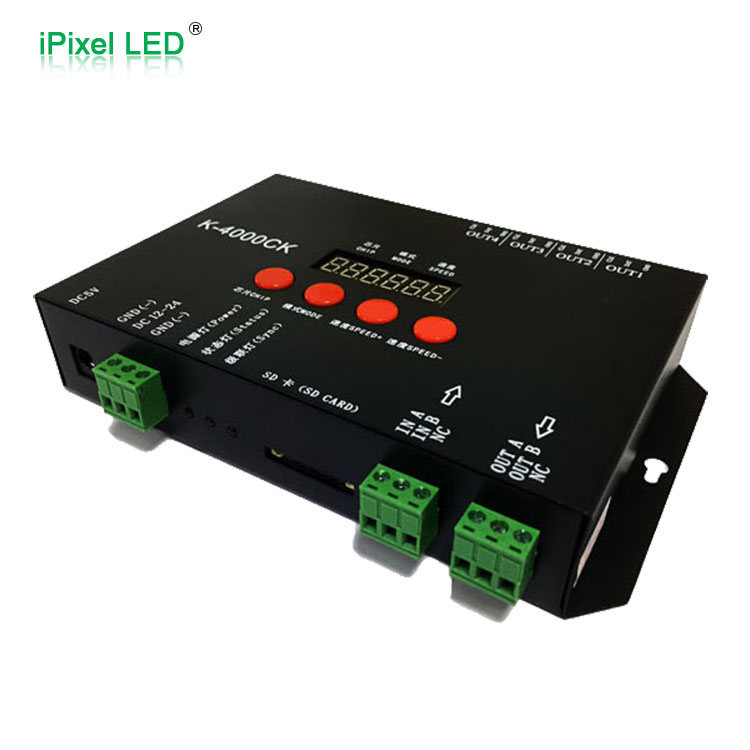

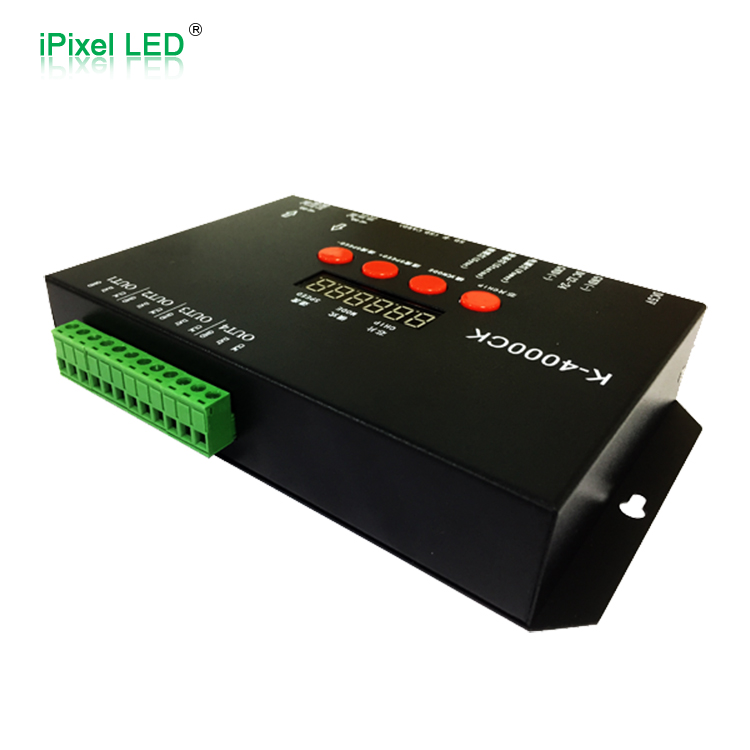

The characteristics of K-4000CK system
1. Level 32-65536 gray level control, software Gamma correction processing.
2. Supporting all kinds of point, line and surface light sources, supporting all kinds of rules and special-shaped processing.
3. The controller has 8 ports and each port can carry 1024 lights.
4. Play content is stored in SD card, which can store up to 32 effect files. SD card capacity supports 128MB-32GB.
5. The controller can be used in cascade. The cascade adopts photoelectric isolation mode: anti-interference and better stability. The cascade distance between the two controllers can reach 150 meters. It needs 0.5 square copper power supply lines.
6. Controller on-board chip can lock the on-board IC in software or not in software. It is more flexible and convenient to select the on-board IC by adjusting the chip keys of the controller.
7. The controller has 22 kinds of test results.
