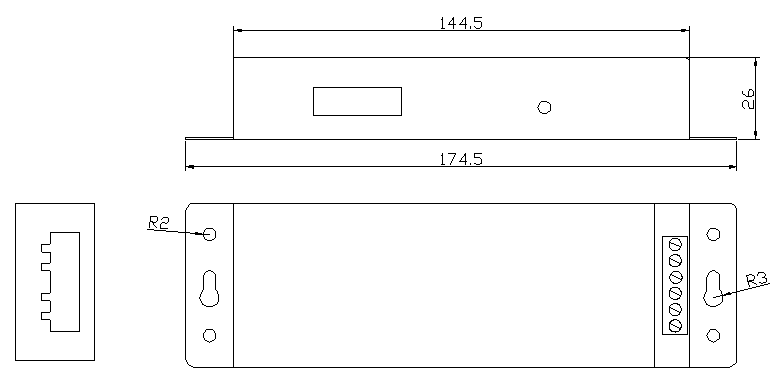

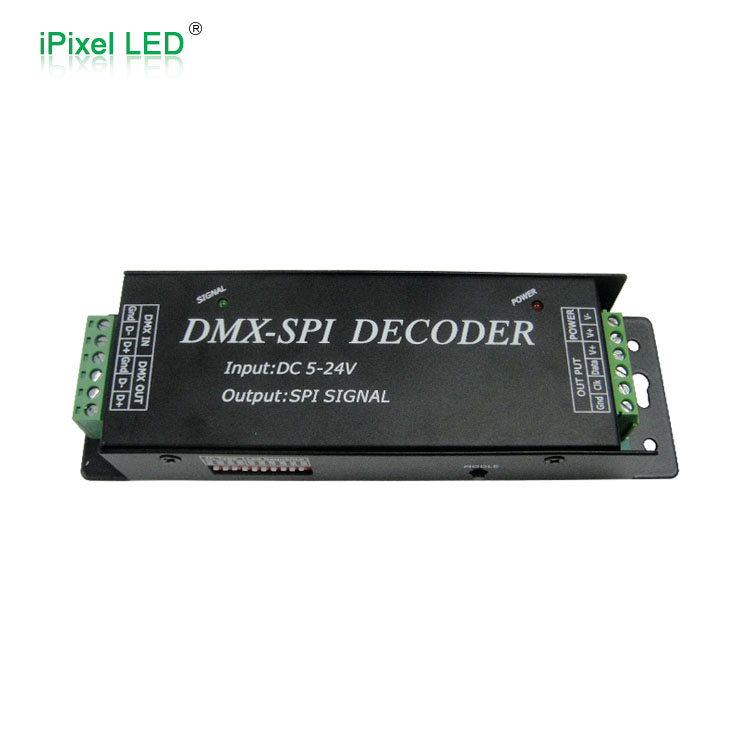

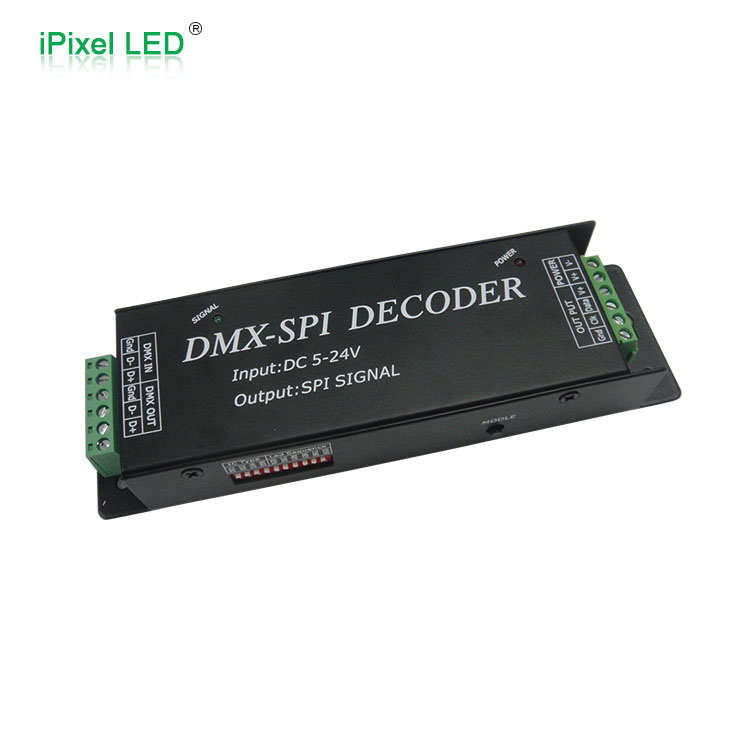

Power and load output adopts the 6PIN green terminal, wiring is as
follows:
POWER: input interface of power, V+ should be connected
with positive of power, V- connected with negative of power, the range of supply voltage is DC5-24V
OUT PUT: load output interface, V+ should be connected with the positive
of light, GND connected with negative, DATA connected with data interface of
light, CLK connected with clock interface of light.
Parameters Settings of Decoder:
You can modify the light type that decoder supports through the DIP switch.
The decoder can support 10 kinds of SPI strips in market. As follows:

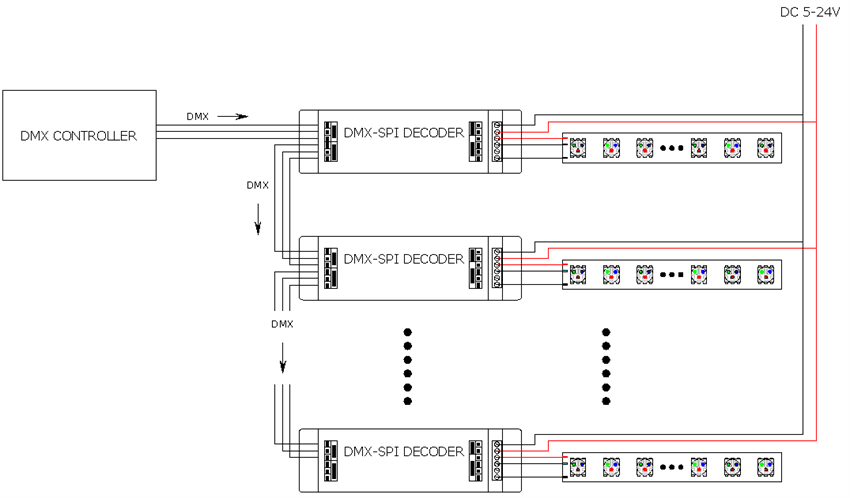

If there are 2
signal lines, then you need to connect the ground wire, clock line, data line
with GND、CLK、DATA; if it is 1 signal line, then just need to connect the ground
wire, data line with GND、DATA.
Remark: if the V+ voltage of strip is the same with controller input
voltage, then it can directly connect with the controller V+; if not, you need
to connect another power supply.
Since the specifications of light in the market are different, the sequence
of RGB may be different, the sequence of some lights is RGB, some sequence is
RBG, GRB and so on, so the DIP switch provides modification of RGB
sequence.

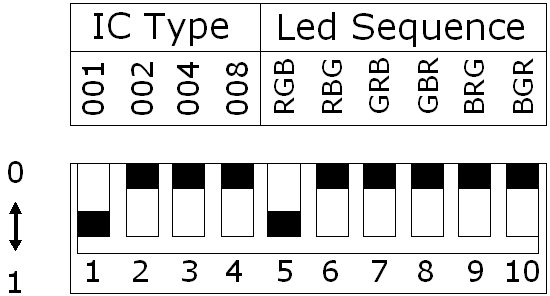

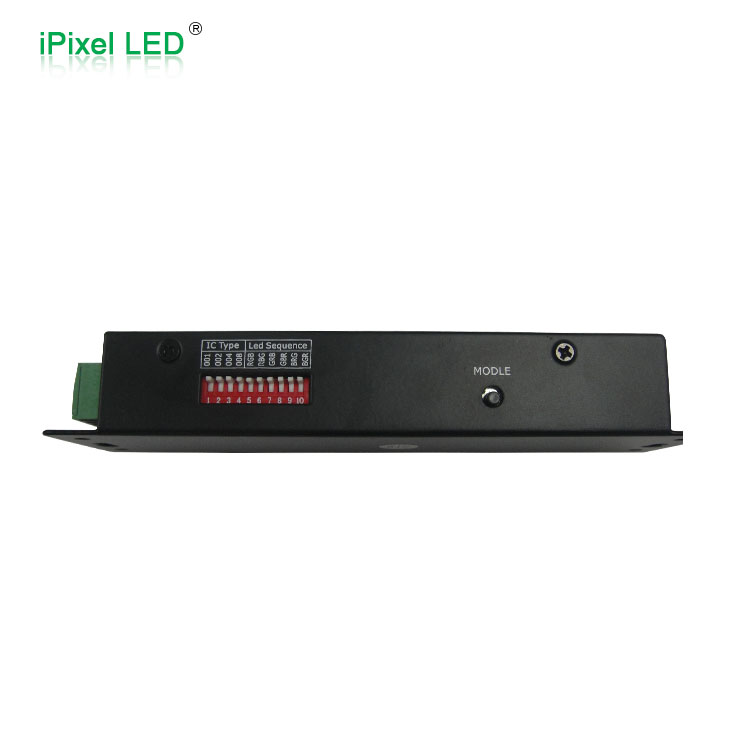

DIP switch is shown as below:
IC type: selection of light type. The accumulation of first four DIP is
1*1+2*0+4*0+8*0=1, lookup the table, you can find it is LPD6803.
LED Sequence: selection of RGB sequence. DIP 5 above is pressed, it
indicates that the color sequence of light is RGB.
Remark: if the accumulation of IC type is more than 10, such as 12, 14, the
default is 10, that is P9813; when LED sequence, there are two or more DIP are
press, such as 5, 7, 9 are pressed simultaneously, default it will take the
largest value 9, that is BRG.
Indicator description: the signal lights up indicates that it detectes
button is pressed, the signal is off indicates there is not button
pressed.
Buttons can only be used when the controller is not connected with DMX
signal, when controller is connected with DMX console, the mode of console is
priority, and the buttons will not have any effect.
