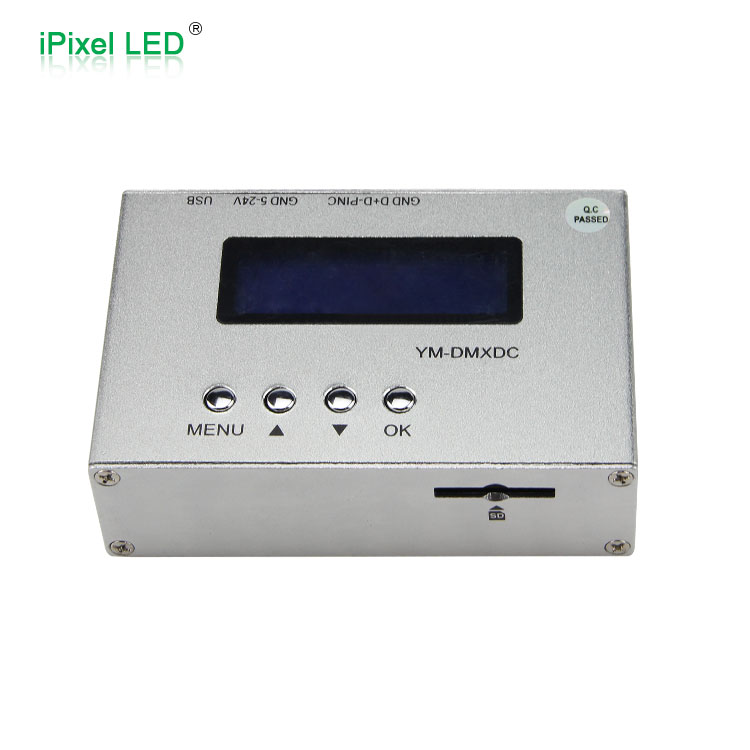

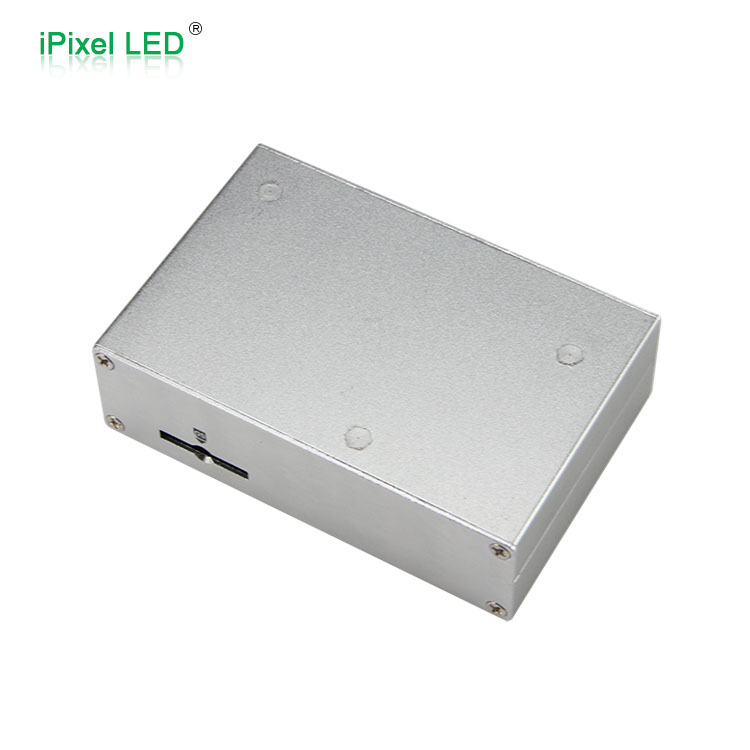

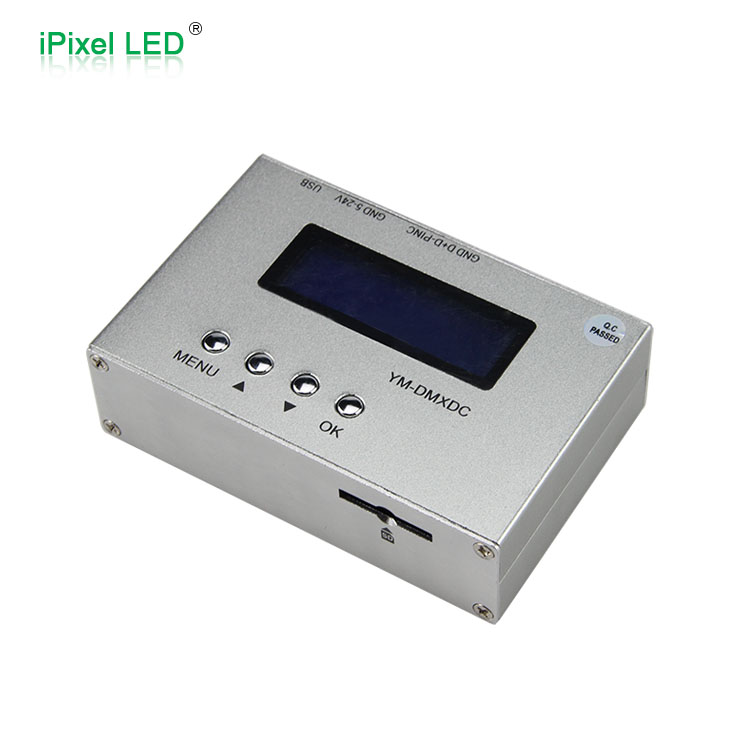

Product
Specifications：
1. Dimensions 115 * 77 * 34mm
output data signal RS485.
2. Weight 200g storage interface
SD card.
3. Exterior color gray 256 gray
levels for each RGB.
4. Power Supply DC 5-24V
Operating temperature -20 ~ 65 ℃.
5. The maximum power consumption
of 5W Ambient temperature -20 ~ 65 ℃.
6. Output control port 1 port
supporting software LED control software.
7. Maximum control pixels by 512
pixels controlled IC: DMX512.
Output port connection: ( Figure )
Coded connection
Line -GND
Tier -D +
Three lines -D-
Four lines -PI
Five lines -NC
Note:
1.To reduce the risk of
electric shock, fire or personal injury , read and follow the warnings and
precautions in order to prevent the occurrence of such events.
2. Do not install this
controller in a magnetic and high-pressure environment.
3. To reduce the component due
to a short circuit caused the fire and the risk of damage , make sure the line
is connected securely connected .
4. Make sure the controller
altogether good ventilation and proper temperature environment.
5. Controller distance between
the lamp within 10 m spacing lamps and lighting fixtures , please consult the
manufacturer over the pitch range , you can add a signal amplifier.
6. Make sure the power supply
voltage DC5-24V.
7. Do not plug the power cable
in the open , be sure to turn on the power connection is secure and properly
before the power .
