| RGB LED Matrix |
| Release time:2016-09-14 11:28:05 | Browsing times： |

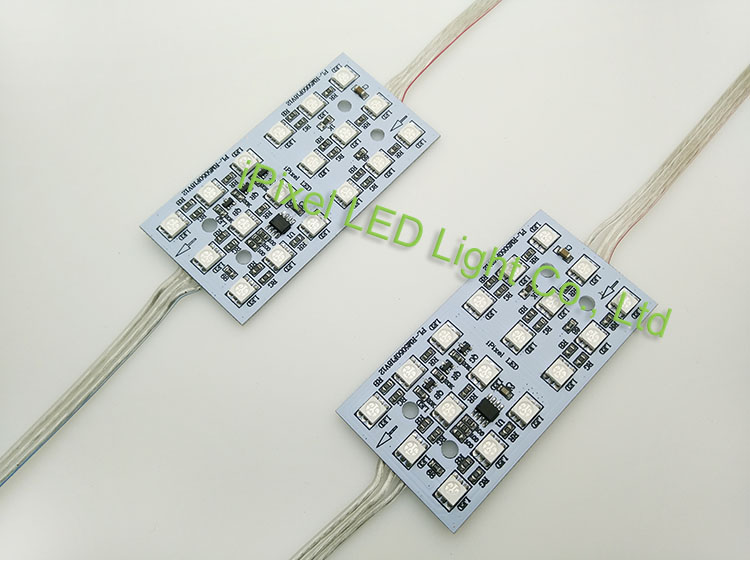

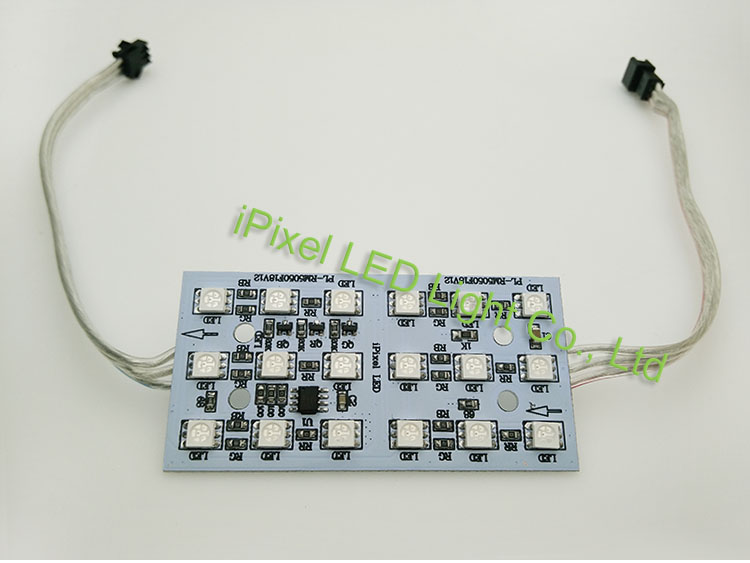

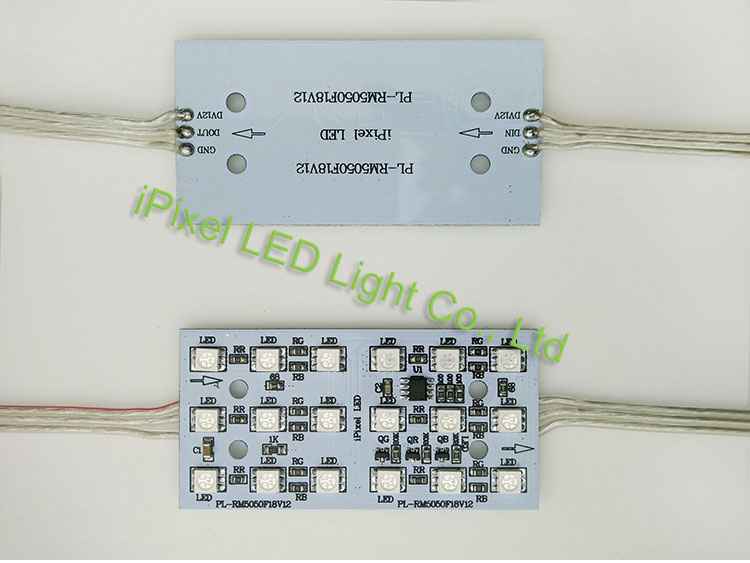

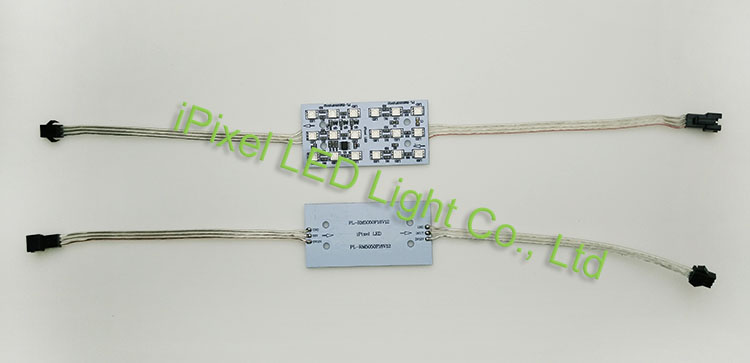

| This is another RGB LED Matrix ——PL-RM5050F18V12 we designed for customer. PCB size 40mm width*80mm Length by LED Pitch 13.3mm with 18pcs,SMD 5050 RGB LED ,drive by 1 pcs UCS1904 IC ,DC12V.Button side there are 2 soldering pad input and output . There are 2of 4mm diameter Hole are for installation use. It allows to drill screw or any other as you want,thickness of PCB 1.5mm.
PS: we dont sell this products as it's designed for customer. |
