Seamless Joint LED Rigid Bar
Release time:2016-12-06 18:17:10 | Browsing times:

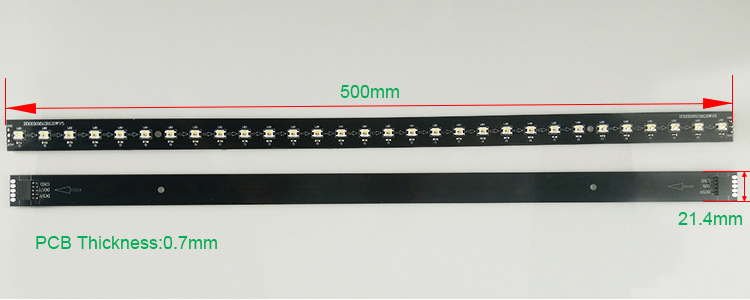

It's addressable SK6812 RGBW led rigid bar,DC5V, the PCB size is 500*21.4*0.7mm, each PCB has

30pcs LED chip.


The special place in:

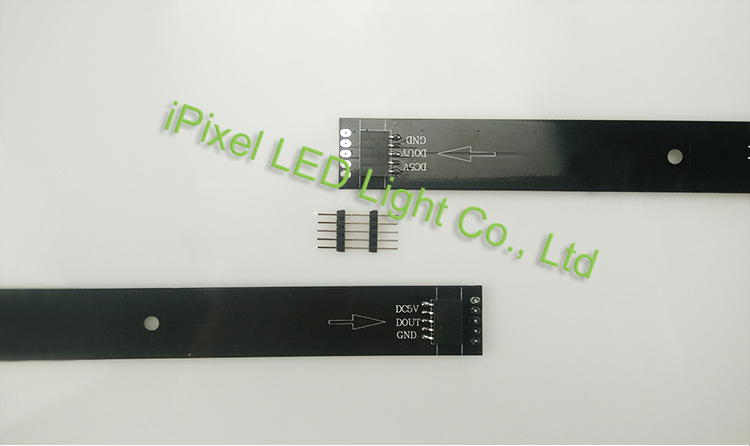

1.each PCB has 5 Bonding pad, 2 GND, 2 DC5V+, 1 DAT.

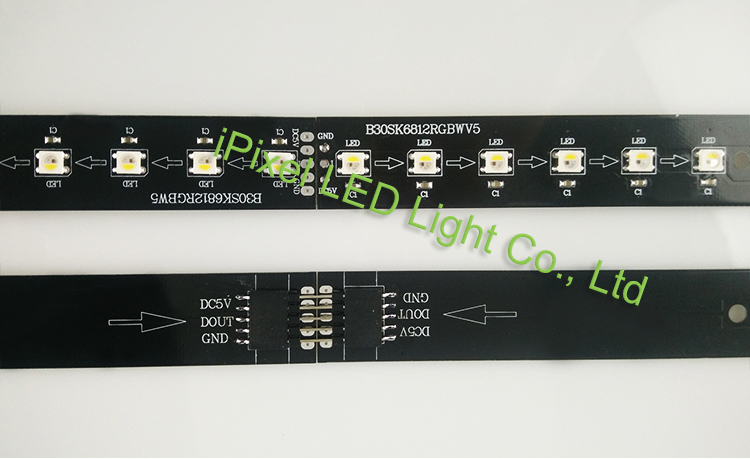

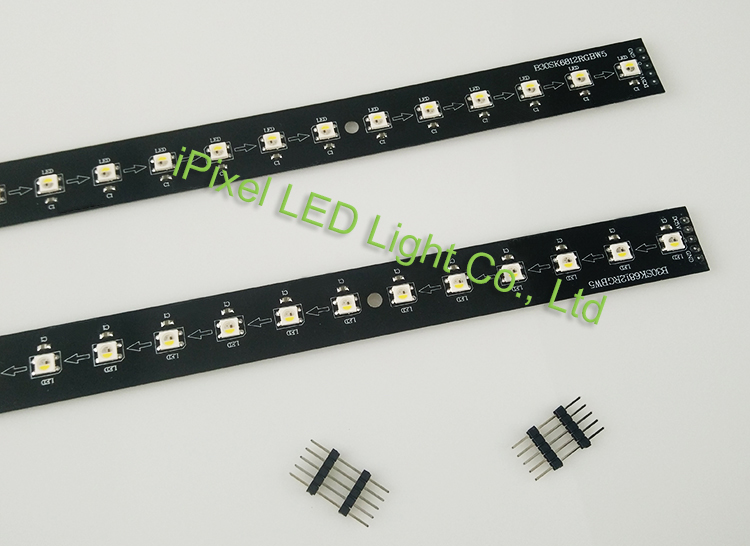

2.both end solder female connector, and connect 2pcs PCB via a male connector to achieve seamless joint.

Our customer will mounte these PCB in aluminum profile, and they don't like the connector over the end

of PCB, so we will design the bonding pad more inside, and select a longer male connecotor for fast and

easy connection.

Please notice, this is a customized product, we don't sell it,but warm welcome more of your good idea!
