DMX 35mm/39mm rgb led lamp

Release time:2017-01-07 11:30:40 | Browsing times：

We developed two new size dmx rgb led lamps for clients in Madrid, Spain.

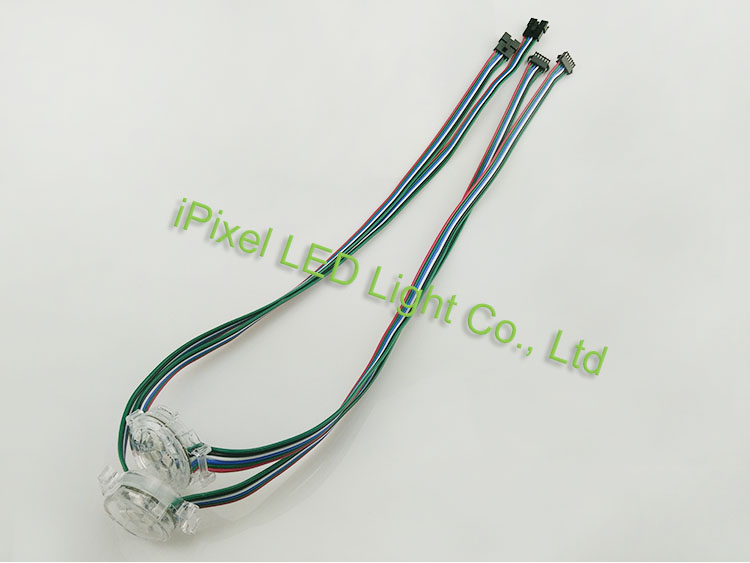

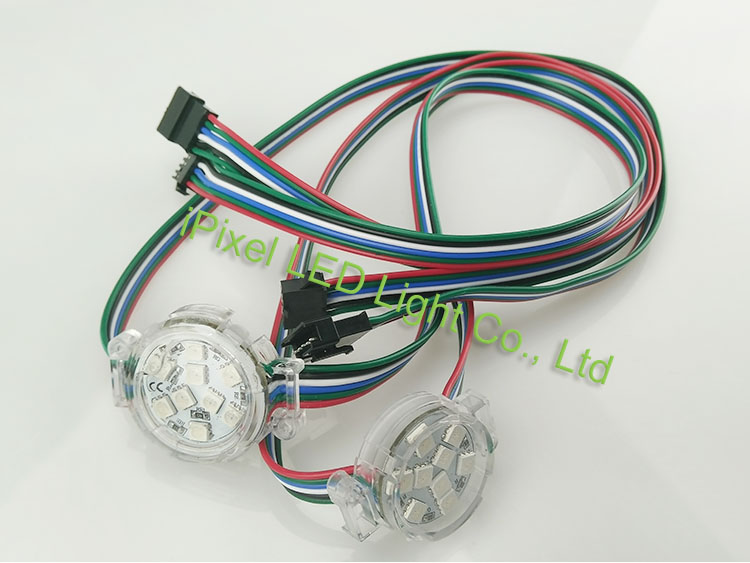

The special point is each pcs has 6pads: GND,D-,D+,PI,GND,DC24; 50cm 6pin female and male connector on each pixel.

LED Quantity : 9pcs SMD 5050 led chip;
Voltage :DC24V input;

Power : approx 3W/pcs, 90lm/pcs.

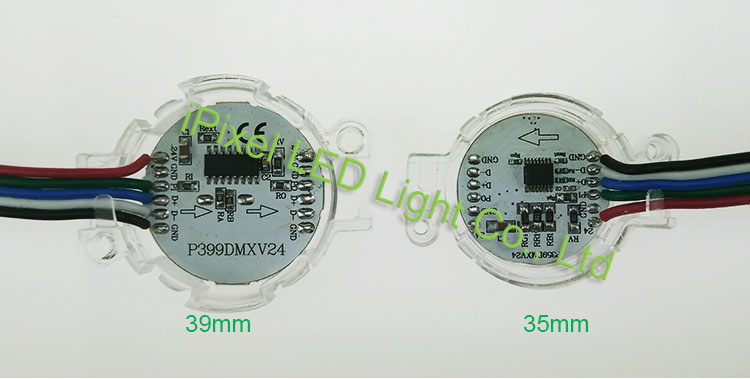

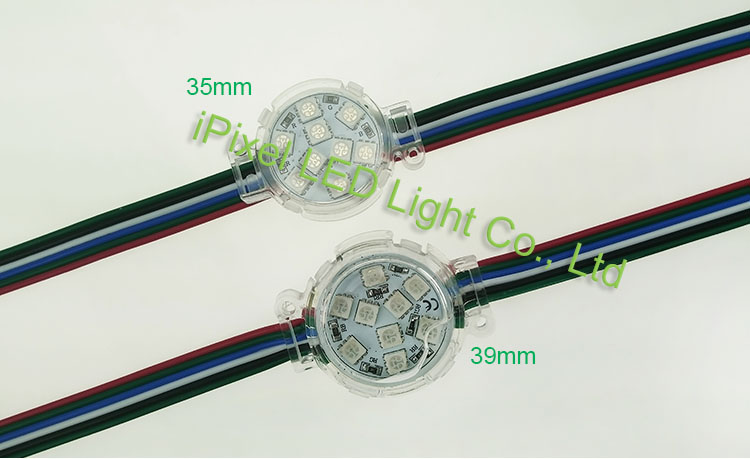

- 35mm diameter, the bare pcb size 28mm, the dmx IC type is UCS512.
- 33.5mm for the bare pcb size, diameter is 39mm, SM16512PK dmx IC type.

If you have special idea, welcome to contact us.
