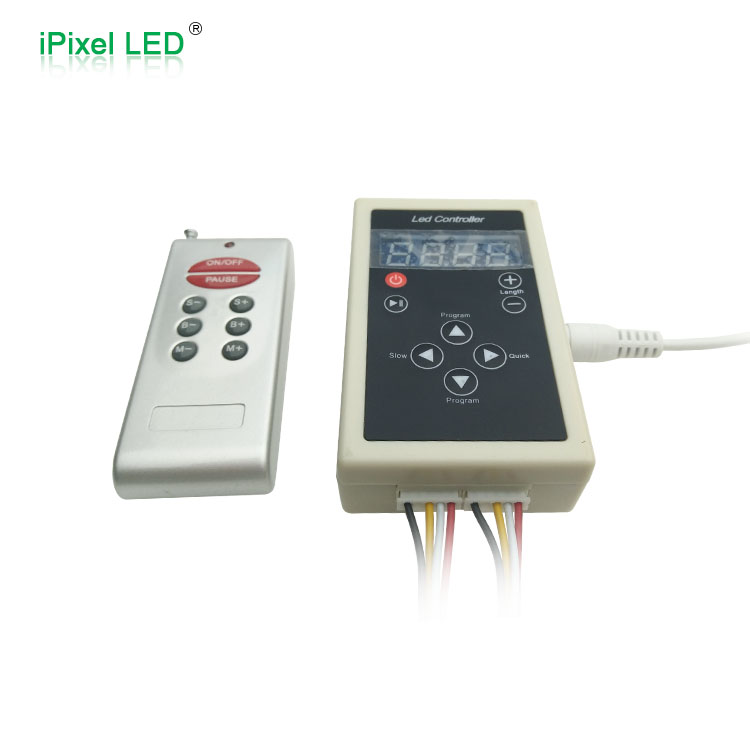

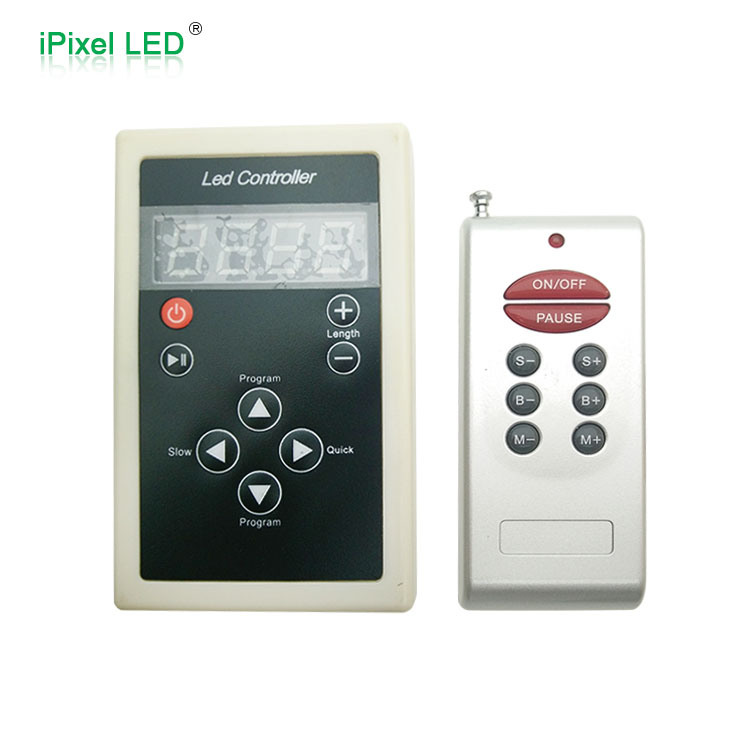

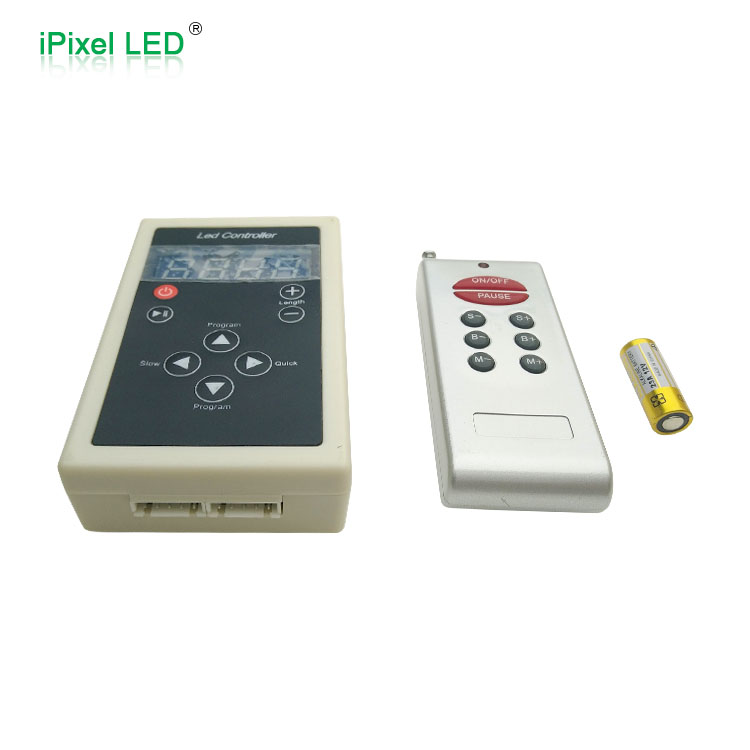

C-2048RF features:
Controller support strip IC type as follow:Magic color controller suitable for SPI signal direct drive LED applications; With 256 * 256 * 256 level gray, length setting function and power off memory function, built-in a variety of patterns to choose, and can through the RF remote control to adjust all kinds of dynamic lighting change effect. Can be applied to light box advertising, the stage, home decoration, etc. But this controller belong to upgrade edition, can support ten different IC strip, support the strip line sequence switch function, at the same time support the maximum pixel points is 2048.
Technical parameters:
| Supply voltage | DC5-24V |
| Rated power | 2.2W |
| Support the maximum pixel point | 2048 |
| Output | one groups SPI signal |
| External dimension | L94 Χ W59 Χ H25 mm |
| Packing size | L145 Χ W95 Χ H50 mm |
| Net weight | 126.3g |
| Gross weight | 166.8g |
| Working temperature | 20-60℃ |
Controller support strip IC type:
|
Model |
Signal line |
Model |
Signal line |
|
LPD6803 |
DATA、CLK |
WS2801 |
DATA、CLK |
|
TM1803 |
DATA |
TLS3001 |
DATA |
|
UCS1903 |
DATA |
TLS3008 |
DATA |
|
WS2811 |
DATA |
P9813 |
DATA、CLK |
|
TM1812 |
DATA |
LPD8806 |
DATA、CLK |
|
TM1809 |
DATA |
|
|

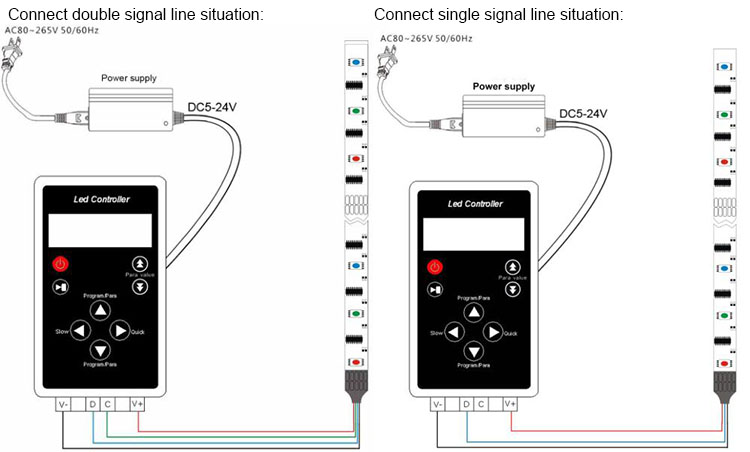

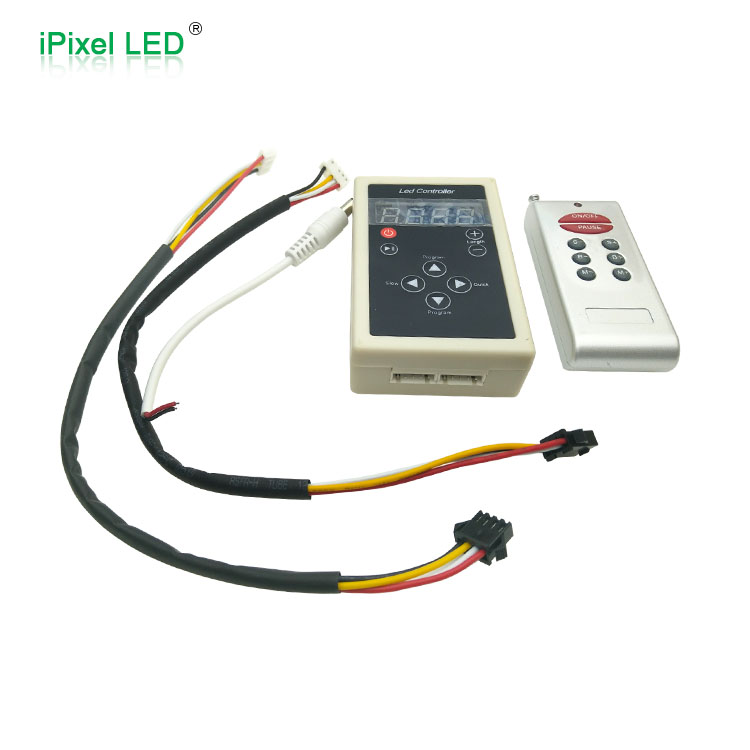

If the strip have 2 signal line, then need to connect the ground line, clock line, data line with controller V- 、CLK、DATA; if the strip have 1 signal line, then need to connect the ground line, data line with controller V- 、DATA is OK.
Note: If the Strip V+ port voltage is the same with controller input voltage, then you can direct connect it with controller V+ port, if it is different, then need to connect to other power supply.
