Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

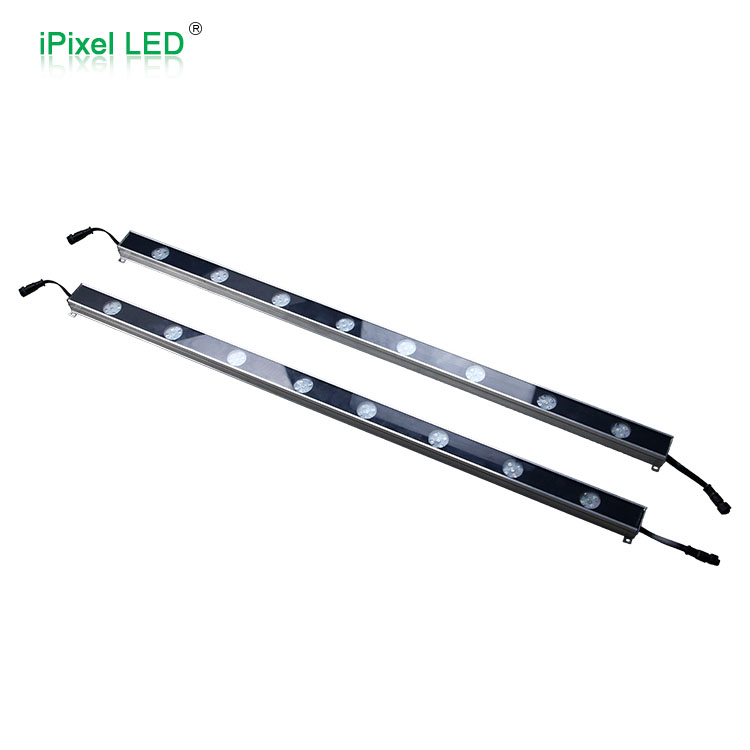

8 Pixel DMX LED Linear
Product Parameter:
| P/N |
LED Qty/PCS |
Size(mm) | Pixel | VCC | Power | Protocol | Pixel Pitch | Write Mode | IP Rate |
| B408V24-DMX | 5050 RGB 40leds | L1000*W45*H35 | 8 | DC24V | 10W/pcs | DMX512 | 120mm |
UCS-C (12 address codes) |
IP67 |

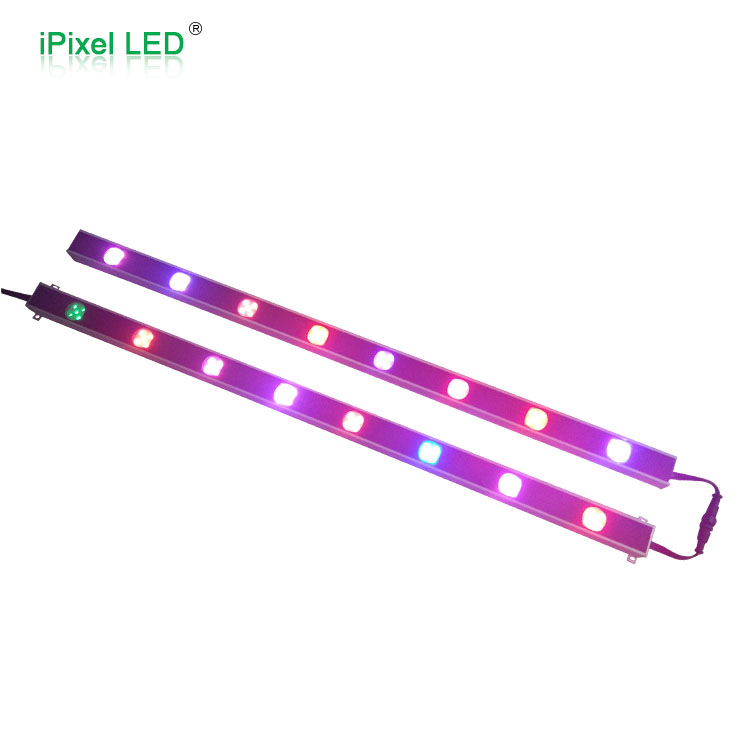

-This dmx linear has 24 dmx512 channel ,8 Pixel, every 5 pcs SMD RGB 5050 consist as a small circle and every LED covered
by a optic lens.

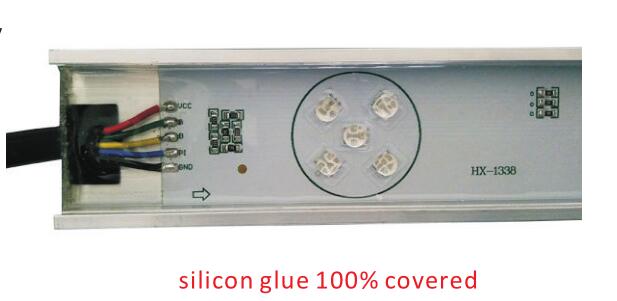

-Pixel Pitch 120mm，DC24V.-This linear bar completely waterproof Ip67 silicon glue 100% covered on surface of soldering pad and components.

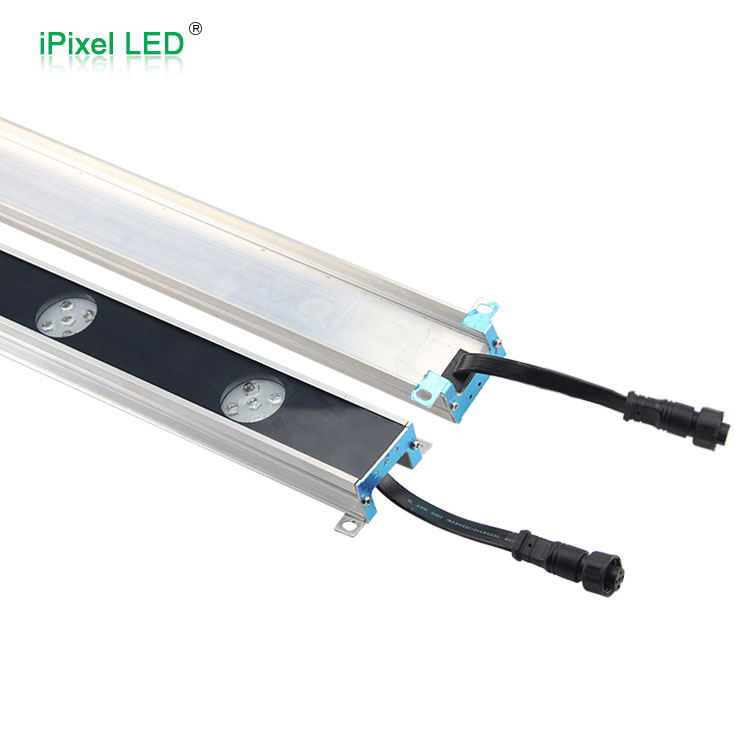

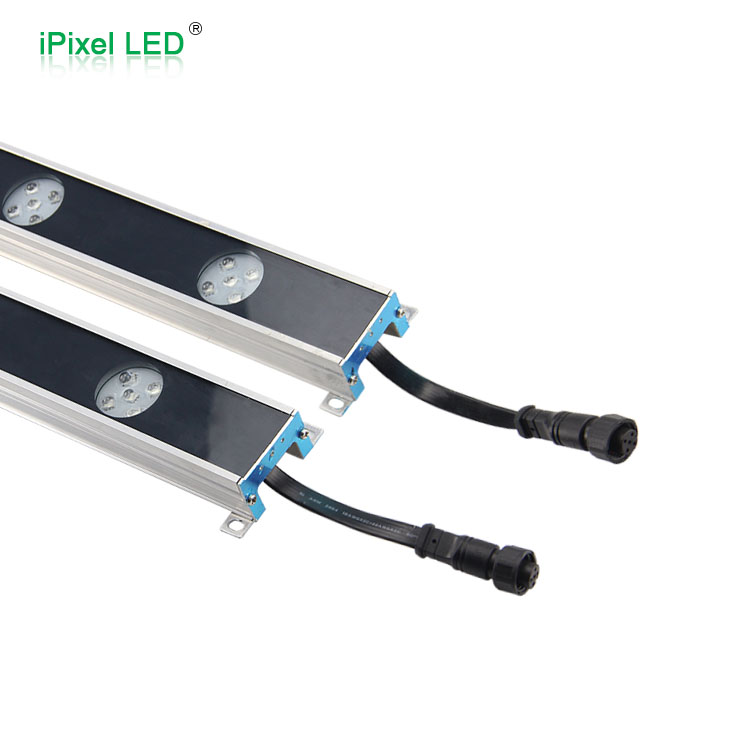

-5Pin high quality waterproof connector on each end of bar, wire length 12.5cm and both wire output from bottom side of bar you also hide it after installation.

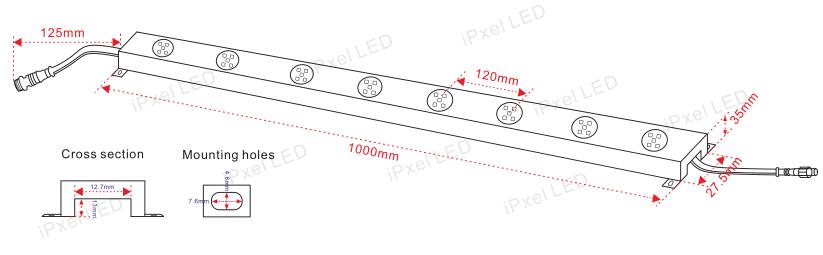

-The unit of PCB bar is 500mm, so we only could supply 500、1000、1500、2000mm length based on our stardard design.
-The mounting clip attached on the end cap with a 4.8 mm hole, we didn't provide screw it's a popular screw size.
