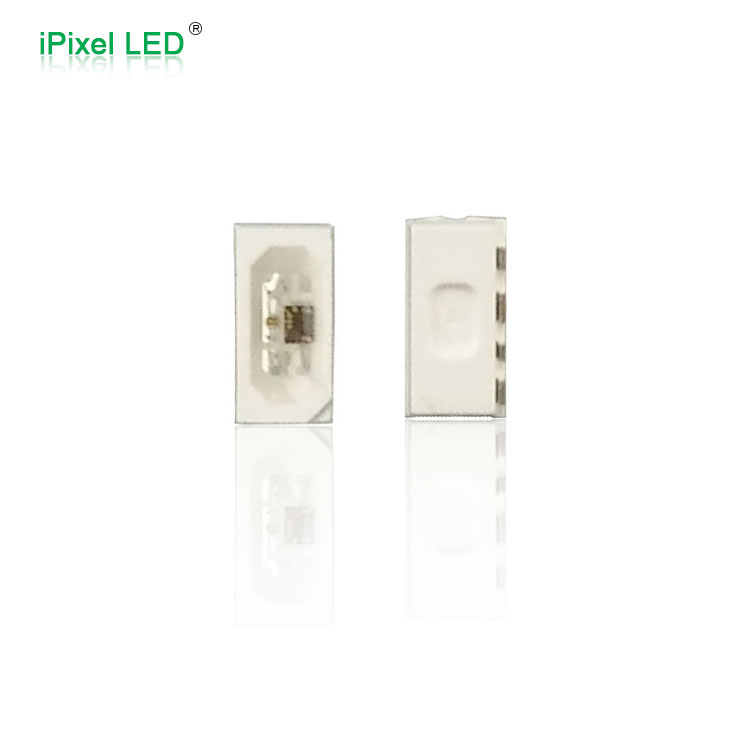

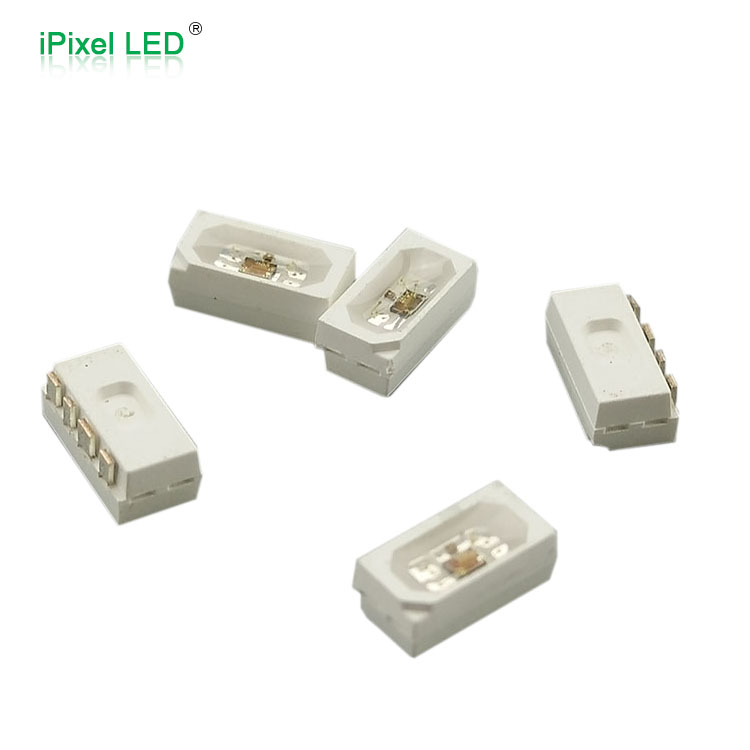

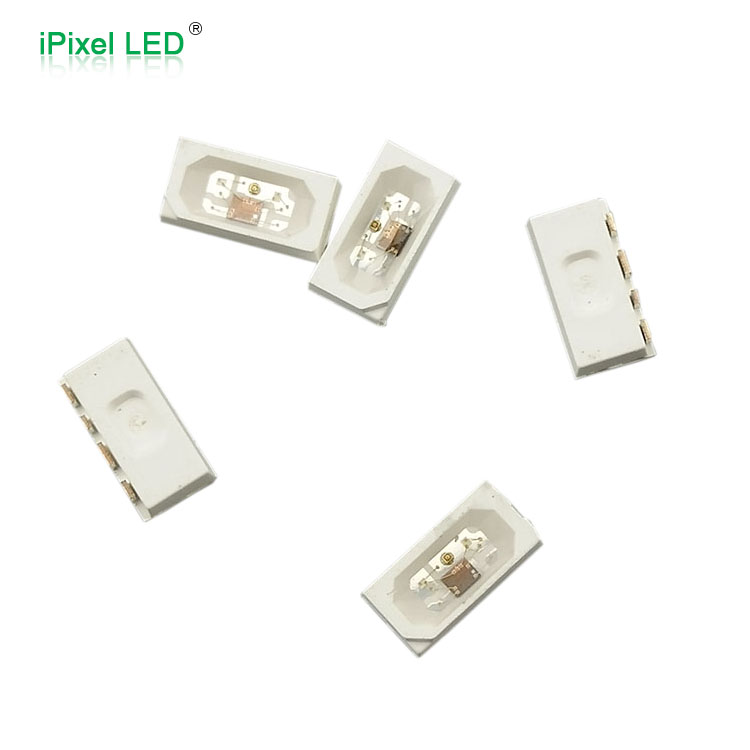

SK6812 Side LED Chip

Application:

1. Full color LED string light.
2. LED super hard and soft lights.
3. LED appearance / scene lighting.

4. LED point light, LED pixel screen.

5. A variety of electronic products,

Email: inquiry@ipixelleds.com

Share to

Intelligent control LED

Features:

1.Top SMD internal integrated high quality external control line serial cascade constant current IC; control circuit and the RGB chip in SMD 5050 components, to form a complete control of pixel, color mixing uniformity and consistency;

2.built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
3.The built-in power on reset and reset circuit, the power does not work;
4.gray level adjusting circuit (256 level gray scale adjustable);
5.red drive special treatment, color balance;
6.line data transmission;
7.plastic forward strengthening technology, the transmission distance between two points over 10M;

8.Using a typical data transmission frequency of 800 Kbps, when the refresh rate of 30 frames per sec.

Main parameters：

Parameter
Chip size	4.0x2.0x1.5mm
Power	0.2Watt
Quantity	1000pcs/roll
Parameter	Symbol	Range	Unit
Power supply voltage	VDD	+3.5～+5.5	V
Working temperature	Topt	-40~+85	℃
Storage temperature	Tstg	-50~+150	℃
ESD pressure	V ESD	4K	V

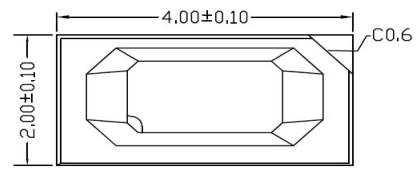

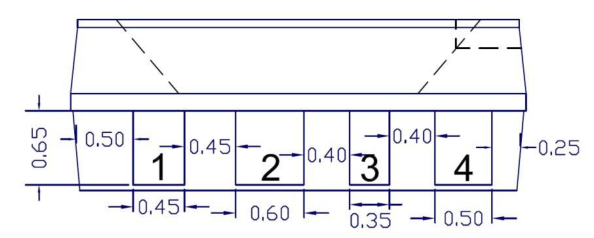

Mechanical Dimensions:

Notes:
1. All dimensions are in millimeters.
2. Tolerance is ±0.1mm unless otherwise noted

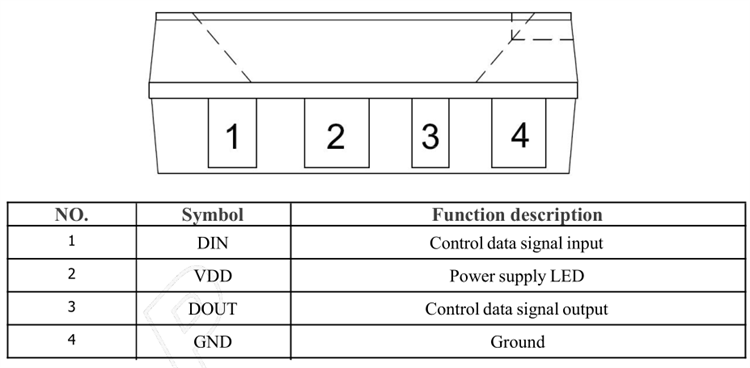

PIN configuration:
