Application:
1. Full color LED string light.
2. LED super hard and soft lights.
3. LED appearance / scene lighting.
4. LED point light, LED pixel screen.
5. A variety of electronic products,
Intelligent control LED

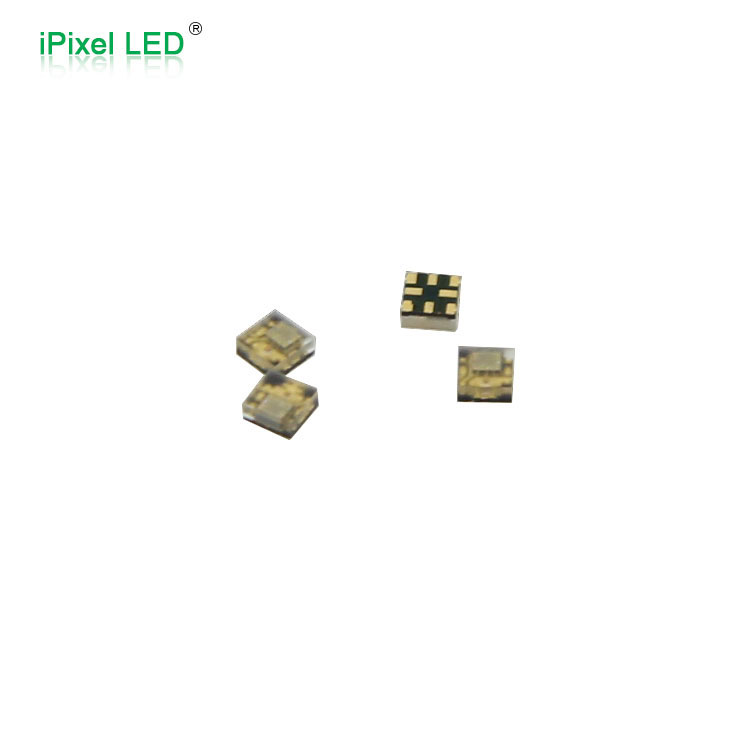

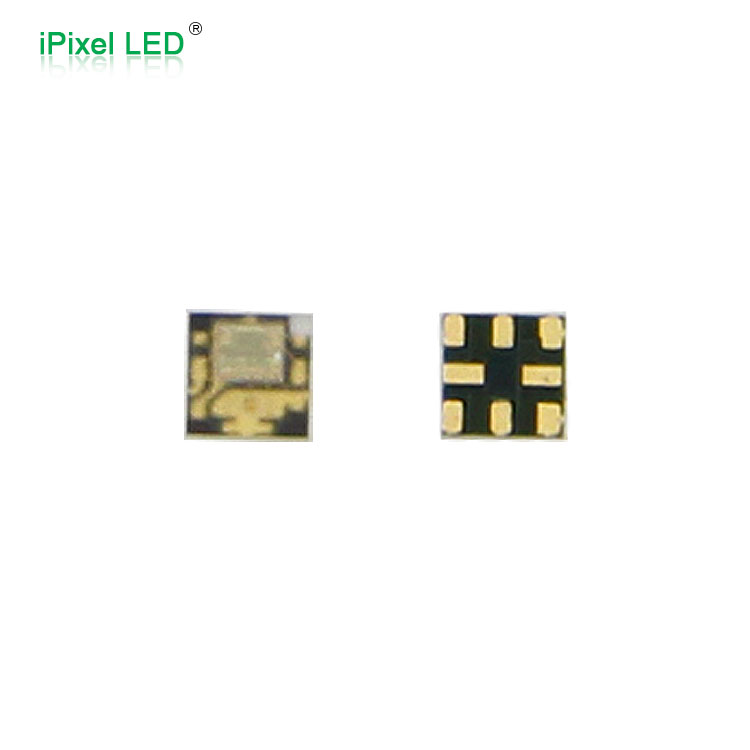

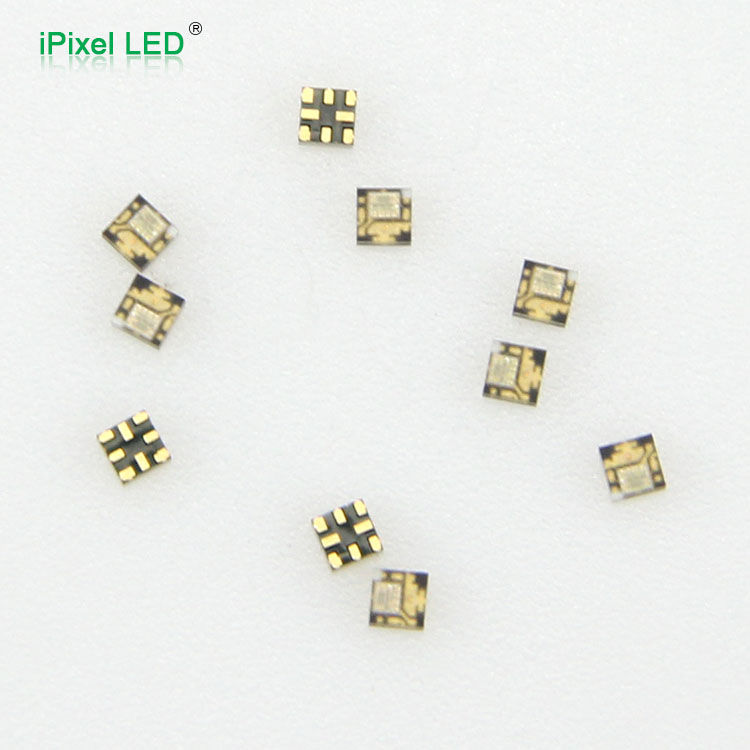

Features:1.Three color Red, Green and blue inside APA102 - SMD2020- sized ( 2mm x 2mm )
Led (Smaller than APA102 SMD5050 RGB). It’s very slim but bright, colorful and use
2.APA102 2020SMD has double signal : DATA And CLOCK. Synchronous Working.
3.8 Bit (256 level) color per set; 5 Bit (32level) brightness adjustment.
4.Red : 619--626 nm; Green : 520--535 nm; Blue : 465--475 nm.
5.IC input voltage 4.5V 7.5V.
6.20mA,Contant current output.
7.Anti - Reflection resin.
8.View angle : >=120 (min 50% brightness)
9.Packed 3000pcs APA102 2020SMD in a reel.
Main parameters：
|
Luminous Intersity(lv) |
Red:300--500mcd,Green:300--850mcd,Blue:120--220mcd |
||||||
|
Wavelength |
Red:619--626nmGreen:520--535nm |
||||||
|
Applied voltage |
5V DC |
||||||
|
Power consumption |
0.2W |
||||||
|
Refresh rate |
400cysle |
||||||
|
Viewangle |
120° |
||||||
