LED Neon Flex

Digital Neon 12*22mm

Application:

. Outdoor Illumination, indoor decoration,

. DIY household lights of hallways, stairs

. Coffee/wine bars, furniture light

. Architectural decoration,
. Christmas lighting.

Share to

Digital LED Neon Flex

Product Parameter:

P/N	SN605050P-24V (A ) / N1202	SN605050P-12V-2811 / N1202
Luminance (LM/M)	R: 630 G: 523 B: 460	R: 630 G: 523 B: 460
Dimension	L: 5000MM* W: 12MM* H:22 MM	L: 5000MM* W: 12MM* H:22 MM
Material	Silicon	Silicon
LED Type	SMD5050 RGB	SMD5050 RGB
LED Quantity	60leds/m	60leds/m
Operating Voltage	DC24V	DC12V
Wattage / Meter	10W	10W
IP Level	IP65	IP65
Operation Temperature	-30℃ ~ 45℃	-30℃ ~ 45℃
Bending Direction	Vertically	Vertically
Pixel/M	10Pixels-SPI	20Pixels-WS2811 IC
Net Weight	1.5kg/roll (5m)	1.5kg/roll (5m)
Color Sequence	RGB	GRB

Remark:12V version color output sequence is GRB

Features:

This digital Neon LED made by Silicon material, more bendy and flexible compare to PVC
it's IP65 rated ,white color base ,diffuser color on top of strip output perfect color without any
light spot.

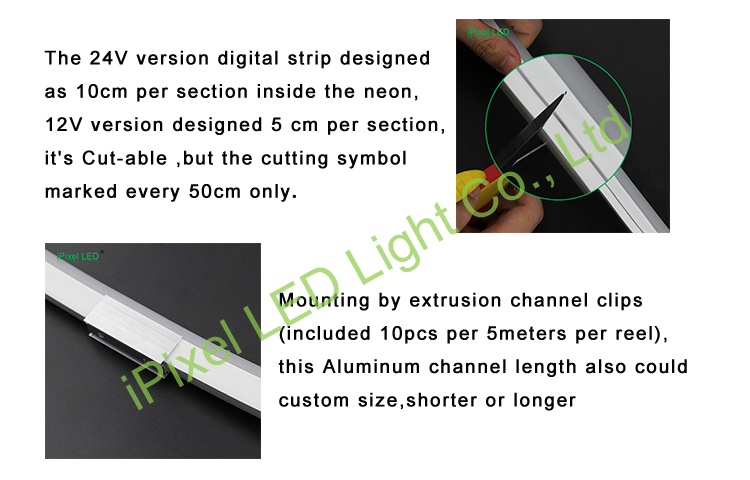

there is a black mark on side of Neon every 10cm where it could be cut accurately
Mounting by extrusion channel clips (included 10pcs per 5meters per reel)

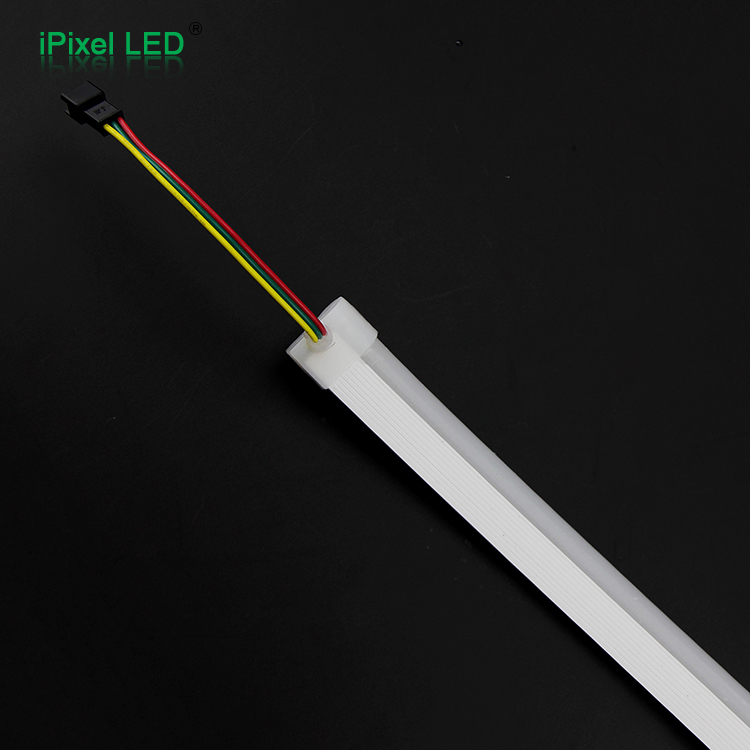

there is a pair of JST connector on input and output side , drive by SPI signal
10Pixels 60pcs LED RGB per meter , the standard length is 5 meters in a reel
Customize length available

Notice

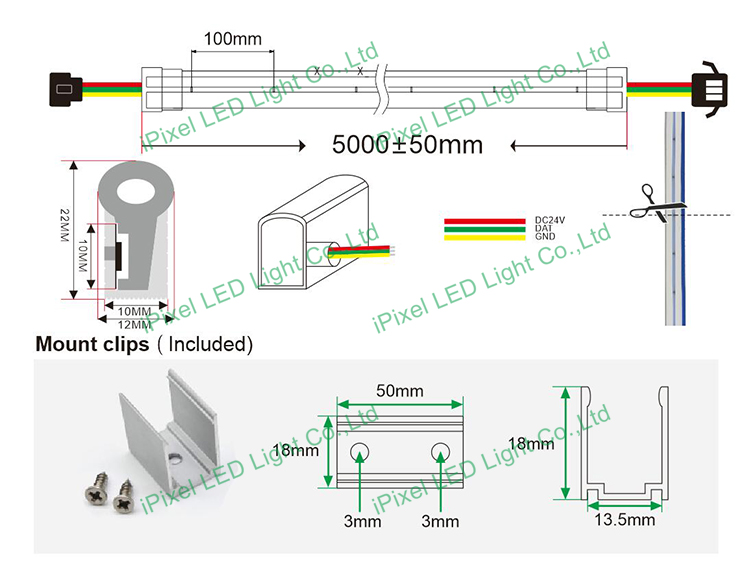

Outline Dimension:

The Product Video:
