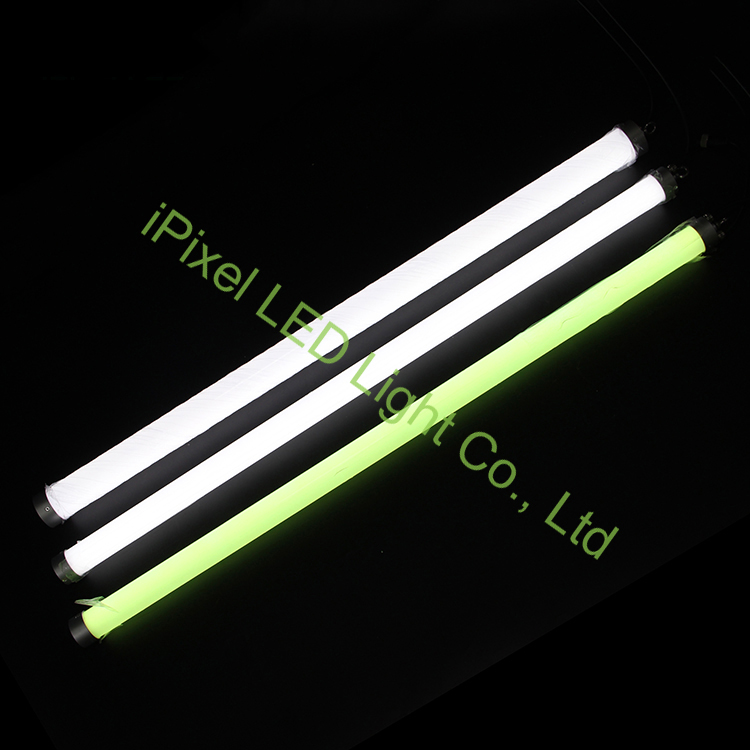

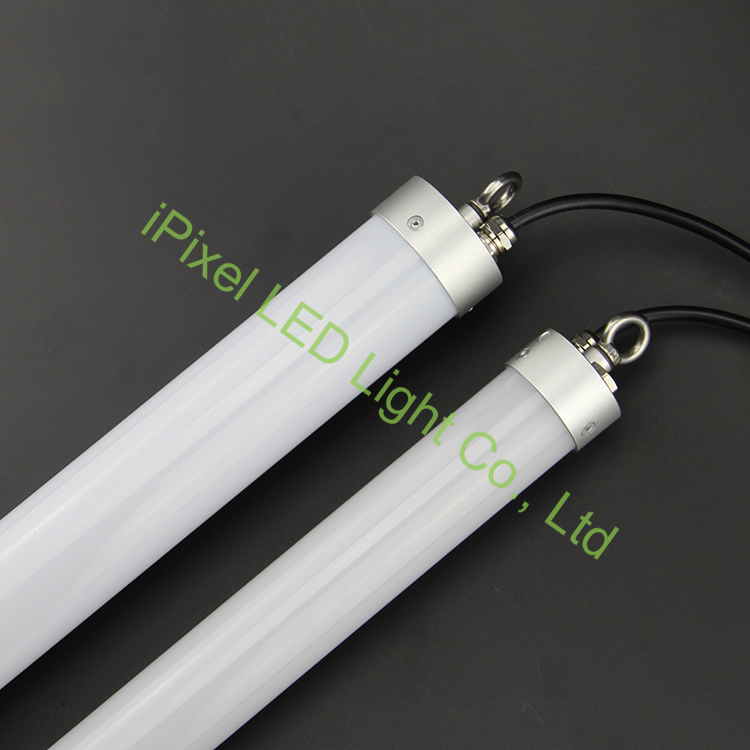

Custom single color 40mm and 50mm led tube

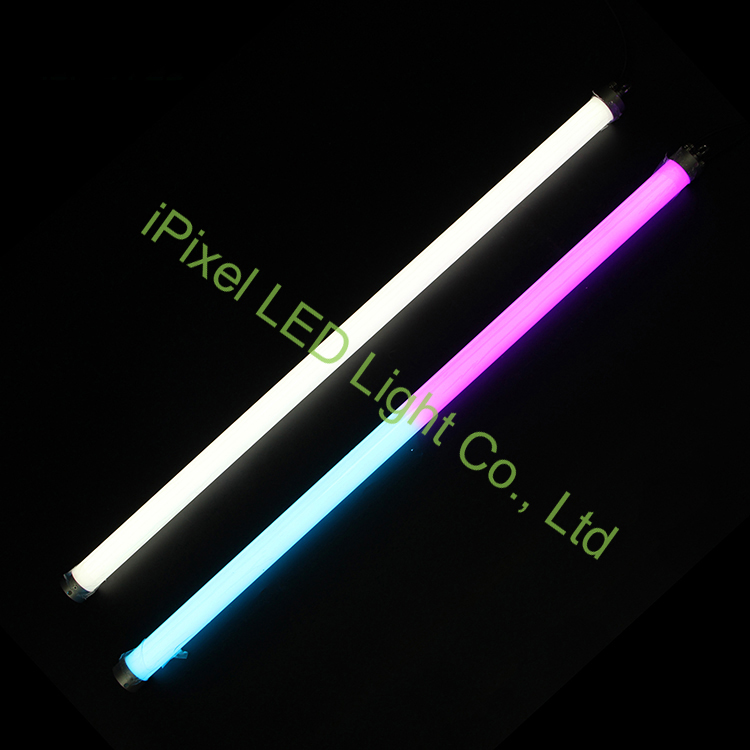

We have standard DMX RGB meteor tubes, but our customers really want the white ones without IC chip,

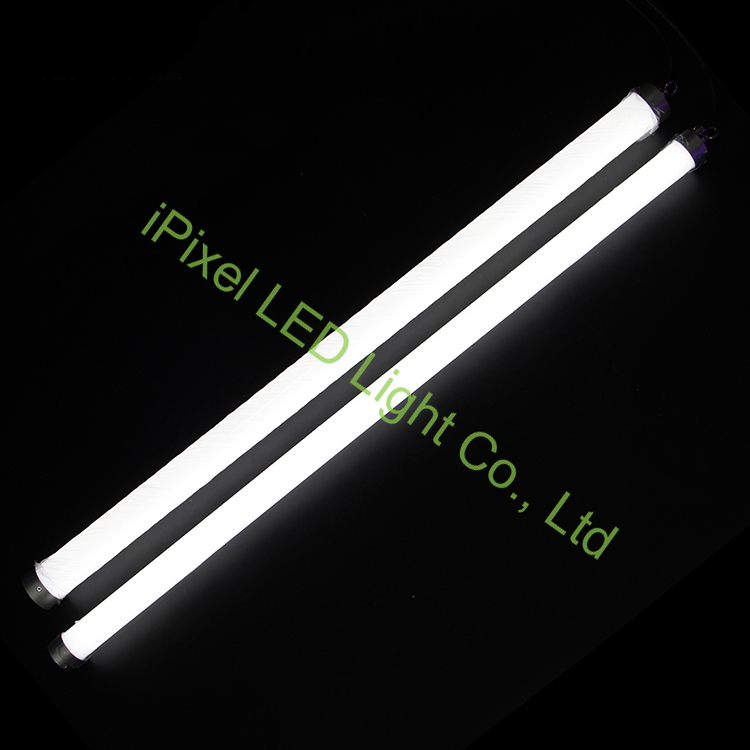

so we developed these two new monochrome ones
You can reference below Parameter comparison table:
Tube size
|
40mm diameter tube
|
40mm diameter tube
|
50mm diameter tube
|
50mm diameter tub
|
LED chip
|
SMD5050 RGB
|
Sigle white color
|
SMD5050 RGB
|
Sigle white color
|
Voltage
|
DC12V
|
DC24V
|
DC12V
|
DC24V
|
LED Qty
|
144LEDs/m
|
480LEDs/m
|
144LEDs/m
|
480LEDs/m
|
Beam Angle
|
360°
|
360°
|
360°
|
360°
|
Power
|
34W/pcs
|
12W/pcs
|
34W/pcs
|
12W/pcs
|
Signal
|
DMX512
|
PWM
|
DMX512
|
PWM
|
Connector
|
5/6Pin
|
2Pin
|
5/6Pin
|
2Pin
|
Pixel Qty
|
24 pixels(72ch)
|
0
|
24 pixels(72ch)
|
0
|
Work Temp
|
-30℃-45℃
|
-30℃-45℃
|
-30℃-45℃
|
-30℃-45℃
|
Installation
|
Vertical/Horizontal
|
Vertical/Horizontal
|
Vertical/Horizontal
|
Vertical/Horizontal
|
Body Color
|
Milky white
|
Milky white
|
Milky white
|
Milky white
|
Body Material
|
PC
|
PC
|
PC
|
PC
|

|
