Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

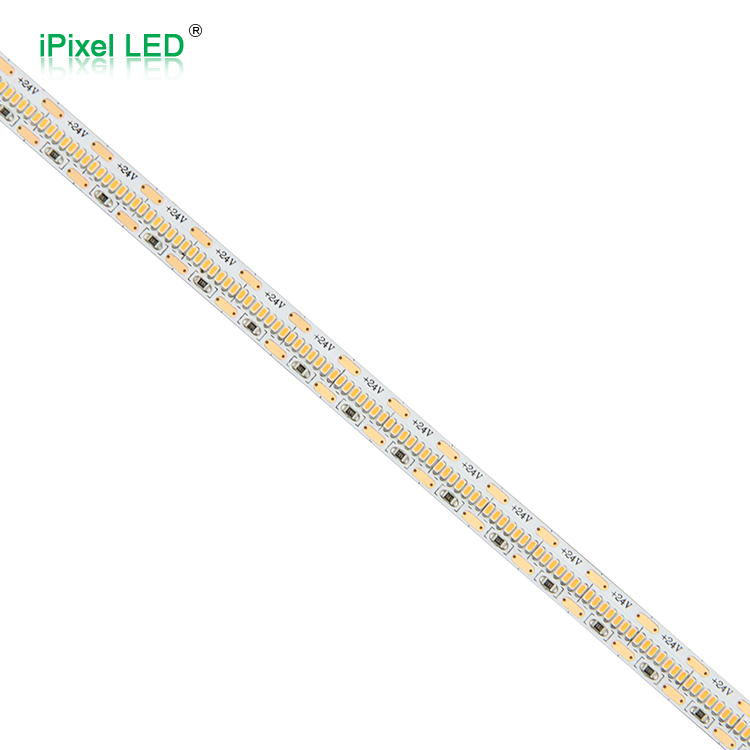

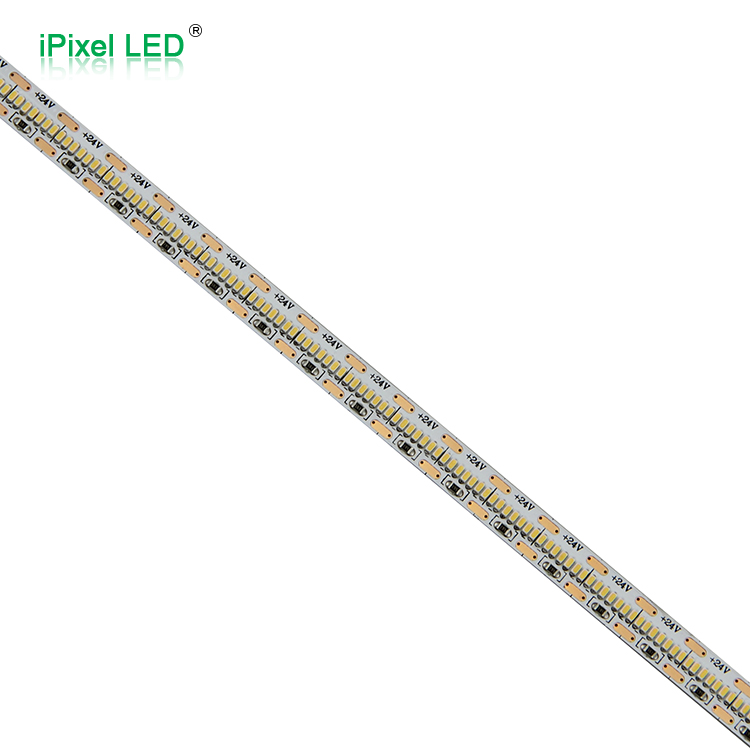

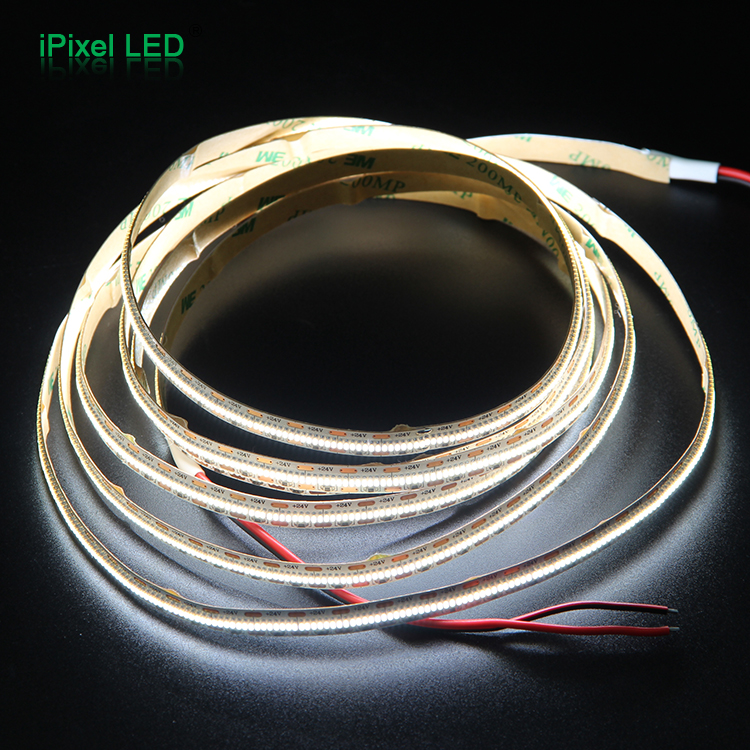

SMD2210 High density LED Flex
Product Parameter:
|
Product Number |
S010700SC1LZ |
|
|
Light Source |
2210 |
2210 |
|
Beam Angle |
120° |
120° |
|
LED Quantity |
700leds/m |
700leds/m |
|
LED Pitch(mm) |
1.43mm |
1.43mm |
|
Color temperature |
6500±200K |
3000±200K |
|
Operating Voltage |
DC24V |
DC24V |
|
Power (W) |
19.2w/m (max) |
18.94w/m (max) |
|
Size（mm） |
5000mm*10mm |
5000mm*10mm |
|
IP Level |
IP20/65 | IP20/65 |
|
Luminous flux |
1750lm/m |
1496lm/m |
|
CRI |
93Ra |
96Ra |
|
Luminous efficiency |
99lm/W |
89.40lm/W |
Features:
- Using 4 oz FPC as the base material, FPC has good conductivity, fast heat dissipation, bending resistance and can bend into any shape at will.
- Using SMD2110 beads with high display finger and high light efficiency.
- The brightness of the lamp can be changed by adjusting the light source.
- Using low-voltage DC24V power supply, users can use it safer.5. It can be made into a variety of waterproofing grades, dripping gum waterproofing (IP65), full casing waterproofing (IP67).

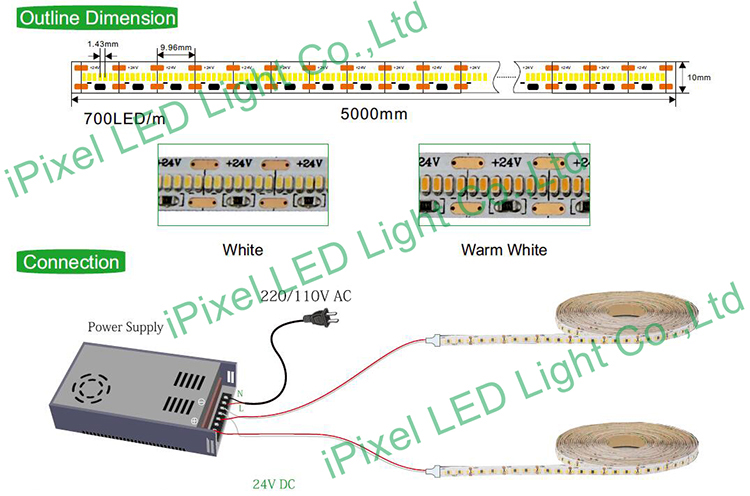

Outline Dimension:
