LED Neon Flex

Mini RGB Neon LED strip 6*12mm

Application:

. Outdoor Illumination, indoor decoration,

. DIY household lights of hallways, stairs

. Coffee/wine bars, furniture light

. Architectural decoration,
. Christmas lighting.

Email: inquiry@ipixelleds.com

Share to

Standard RGB LED Neon Flex

P/N	SN006096TB3LZ(N0602)	SN006096TC3LZ (N0602)
Luminance (LM/M)	/	/
Dimension	L: 5000MM* W: 6MM* H:12 MM	L: 5000MM* W: 6MM* H:12 MM
Material	Silicon	Silicon
LED Type	SMD LED RGB	SMD LED RGB
LED Quantity	96leds/m	96leds/m
Operating Voltage	DC12V	DC24V
Wattage / Meter	20W (Max)	20W (Max)
Cutting Mark	31.25mm	62.5mm
IP Level	IP65	IP65
Operation Temperature	-30℃ ~ 45℃	-30℃ ~ 45℃
Bending Direction	Vertically	Vertically
Net Weight	0.4kg/roll (5m)	0.4kg/roll (5m)

Features

This is a PWM control RGB color LED Neon flexible strip without Pixel
the whole body made by silicone material,Anti-fire
It's quite soft that you can bend it easily to make any small sign or logo
as the RGB flex side mounted ,so side by side bending direction only instead of up and down

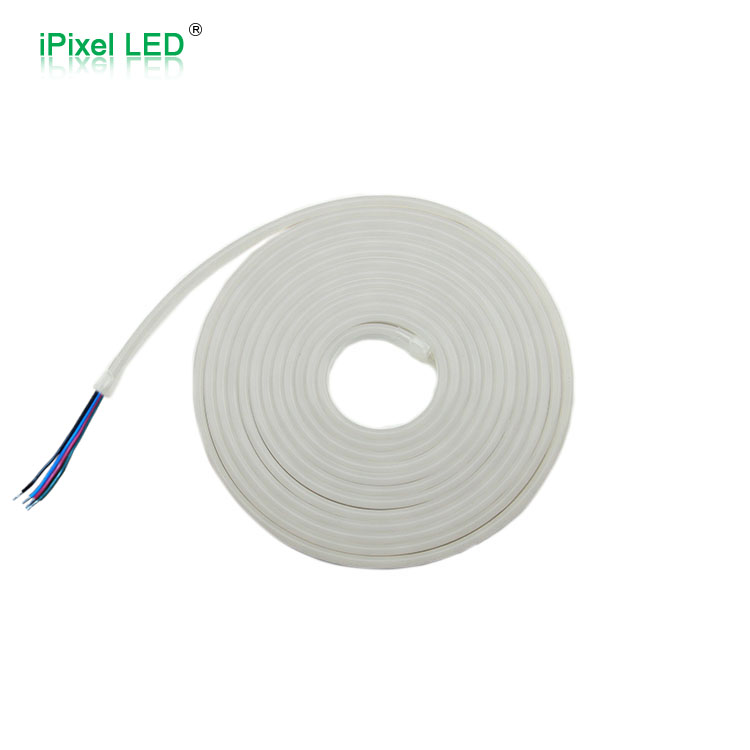

the standard size is 5meter per reel, Plus-Minus 5cm ,customized length available
The cutting section is 31.25mm (62.5mm per unit when it's DC24V version) refering the black

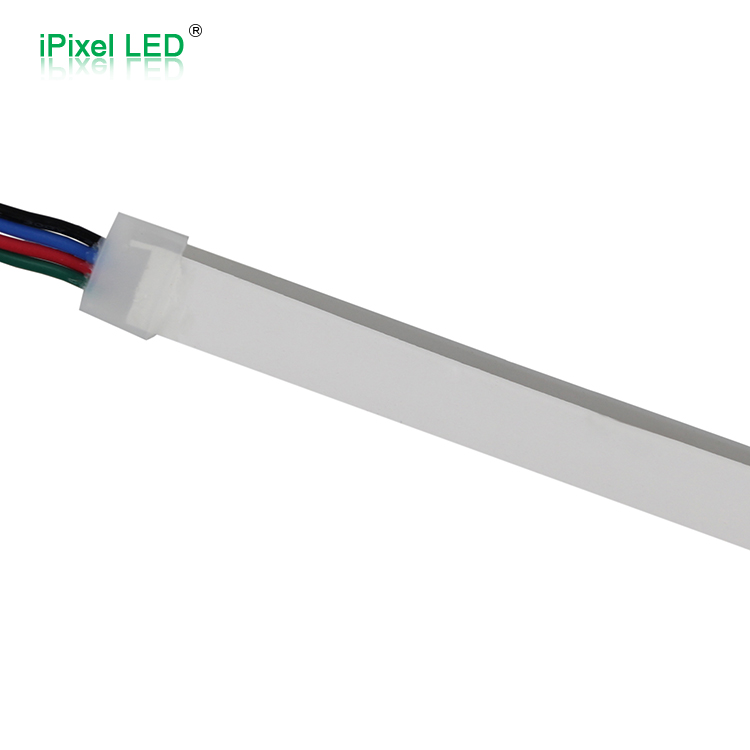

mark on the side of Neon,15cm wire output from each end of flex .

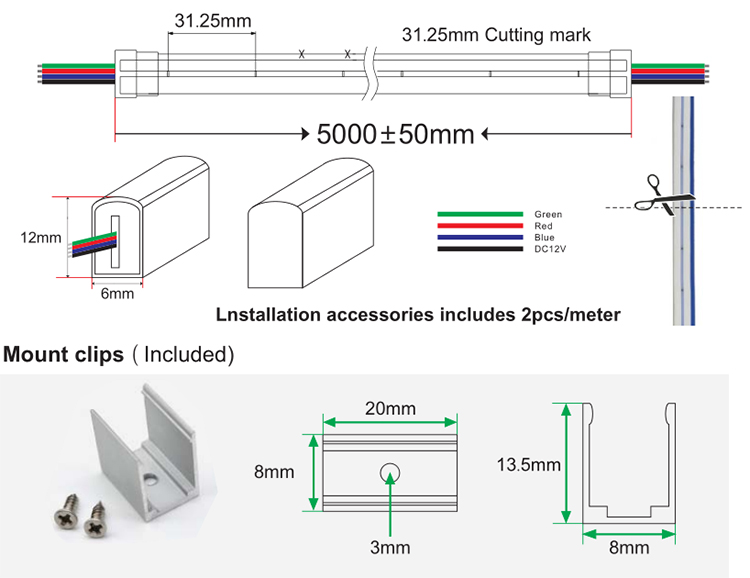

Outline Dimension:
