Application:
1. Business premises, stage, conference room,
2. Display lights, ancient buildings,
3. Stage illumination,
4. Viaduct overpass, building exterior wall, building landmark,
5. Landscape building, outdoor plaza,
6. Color of landscape, wall and display,

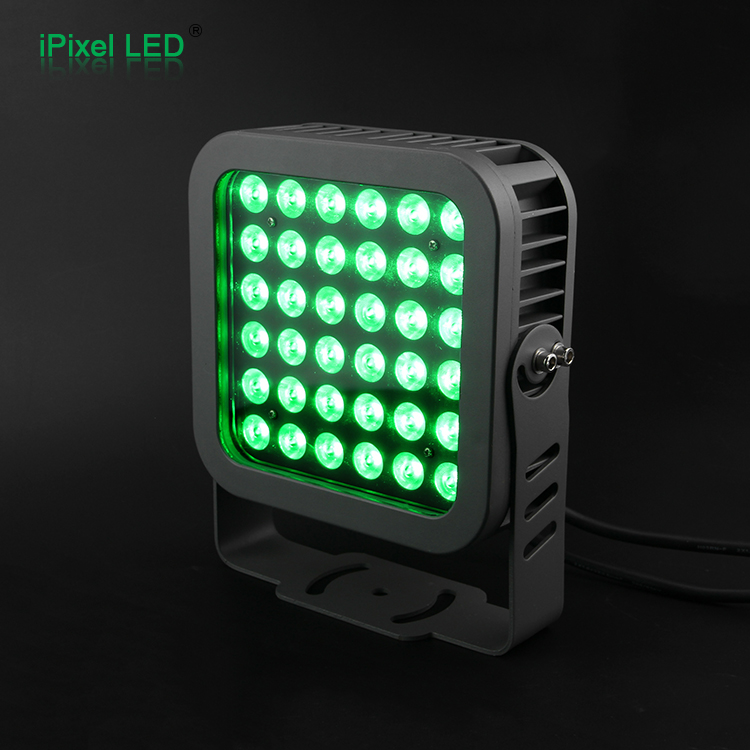

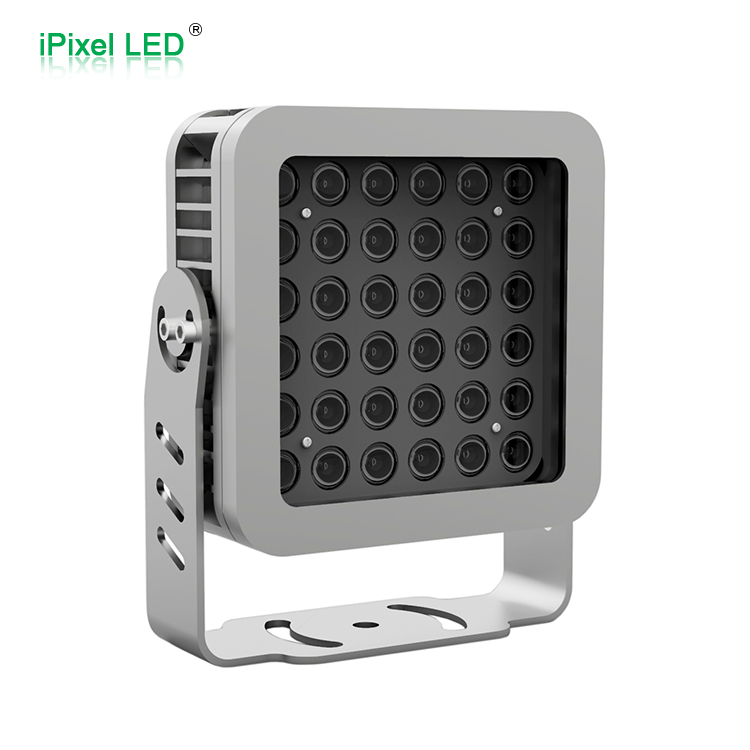

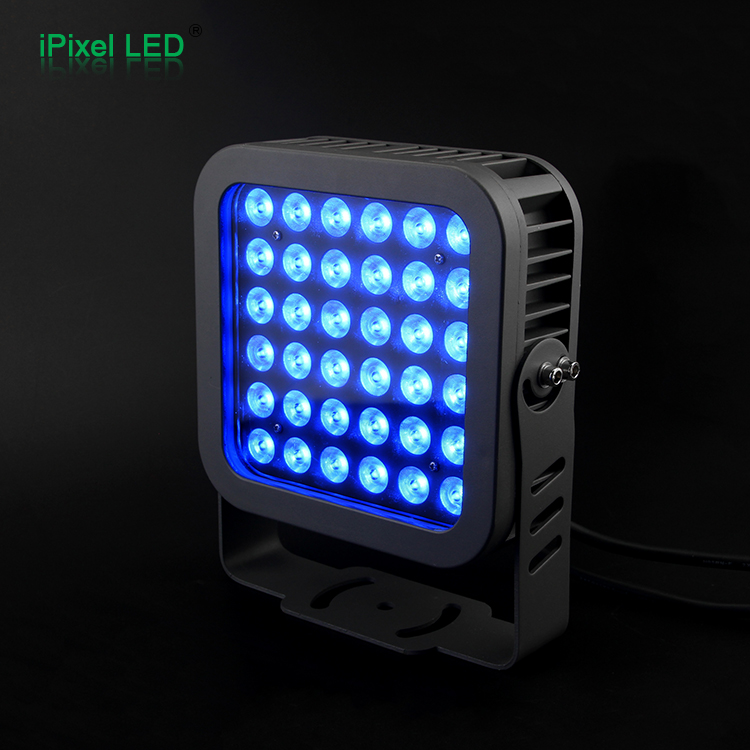

F197 RGB LED Flood light
|
Product Number |
F197036DC4DG |
|
Power |
36W |
|
Quantity of LED |
36PCS |
|

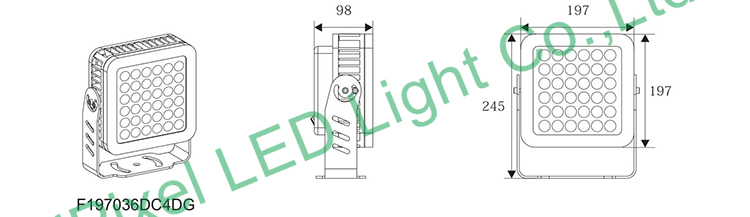

Size (mm) |
L 197 * W 98 * H 245 |
|
Lumens/LM |
R: 106 G: 295 B: 75 |
| Operating Voltage |
DC24V |
| Control (IC) |
DMX512 4CH |
| Light Source |
TX-3535 4 in 1 |

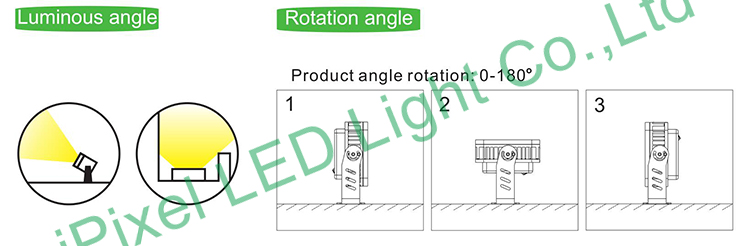

| Beam Angle |
12°、24°、36° |
|
Glass Thickness |
4mm |
| IP Level |
IP65 |
| Life Time |
50,000 Hours at Ta=40°C |
| Work Temp |
-20℃ - 50℃ |
| Operating Humidity |
10%~95%RH |
|
Finishing Materials |
Aluminum and Tempered Glass |
Features :
- using brand high-power LED chips, and a unique array of LED layout design, with high thermal conductivity, low light decay, pure color, no ghosting.
- The shell is extruded from 6063 aluminum extrusion with high thermal conductivity and is resistant to high-strength impact. The surface of the lamp is treated with electrostatic spray, which is corrosion resistant and UV resistance.
- Transparent parts are made of high-strength toughened glass with 99% light transmittance, high light transmittance and impact resistance.
- long life and low light decay, the light effect can still maintain nore than 80% after 30,000 hours
- Customized design such as monochrome, high voltage, color mixing, multi-effect, multi-power, lengthening, etc according to customer require ments
- Widely used in: outdoor sports venues, park squares, architectural lighting projects
