Application:
1.DIY electronic production.
2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.
SMD 2835 Flexible LED Sheet
Product Number
M231250BC1LZ
Light Source
SMD 2835
Beam Angle
120°
LED Qty/Module
15*7 PCS
Operating Voltage
DC24V
Power (W)
46W
Led Pitch(mm)
33.33mm
IP Level
IP 20
CRI
85RA
Lumens
3680 LM
Color Temperature
2800-3200K 6000-6500K

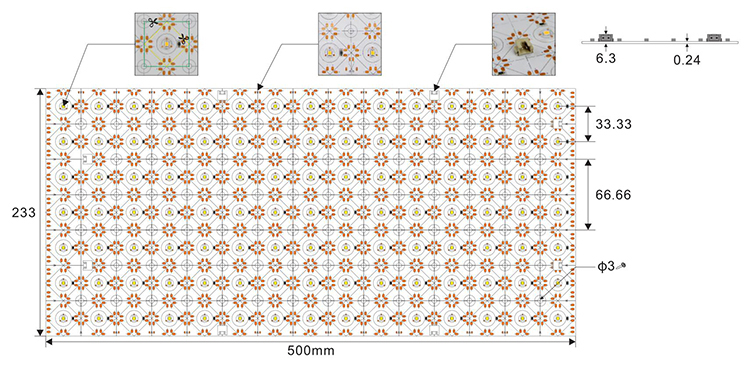

Size (mm)
L 500* W 233 mm
PCB Color
White
Operation Temperature
- 10℃ - 40℃

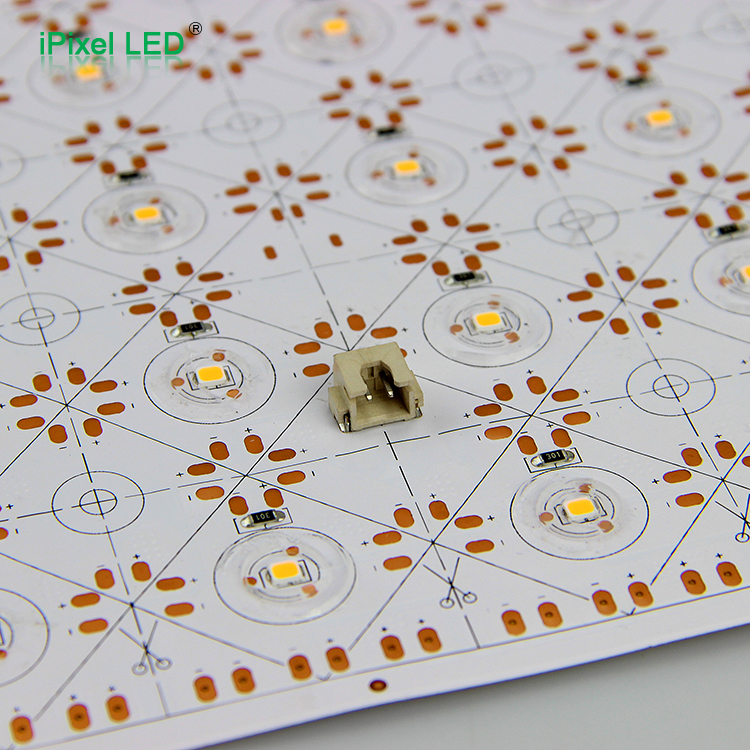

Flexible LED sheet made by FPC
3 Ounce copper board in white color
Each LED unit can be cut. There are 2pcs SM connectors
distributed on each side of the sheet. It is easy to remove
or solder more pieces as required. or solder the cable
to the Pad directly for power feeding
there is no pad on backside which allows it could be mounted
to a aluminum board without circuit short
you can stick it as a normal strip by 3M tape or silicon
there are many M3 ring designed for screw mounting on the
sheet the big ring designed for mount optical lens as required
