| TM1804IC LED Bar Light |
| Release time:2016-06-29 19:58:41 | Browsing times： |
| The customer from UK, he ordered some 60mm
cabochon led lamps, T1000S controllers and power suppliers from us. Then he

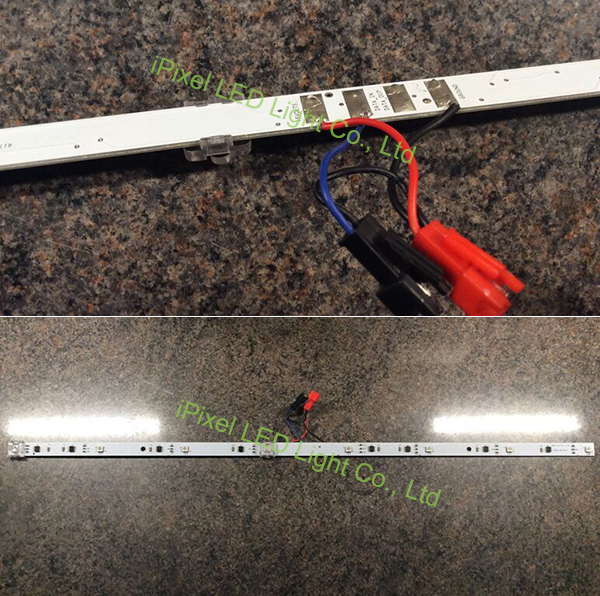

said he was looking for a dance floor led bar light and sent us this sample

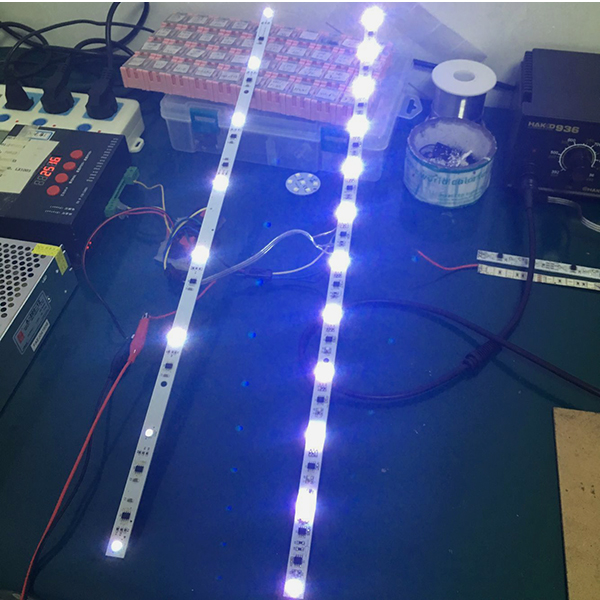

to design a new model, see pictures.

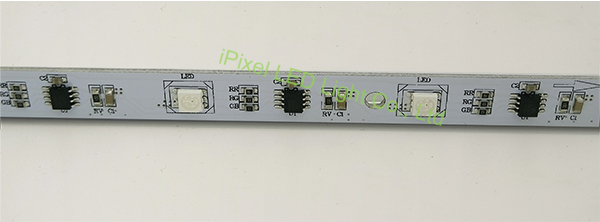

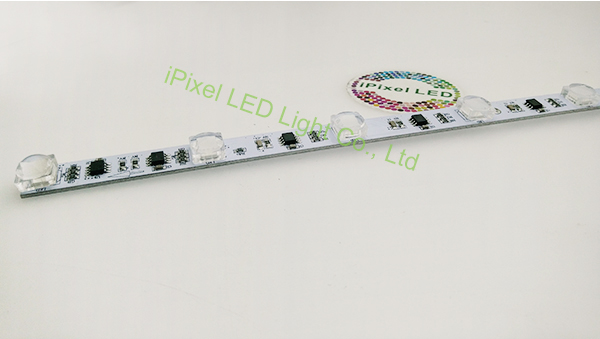

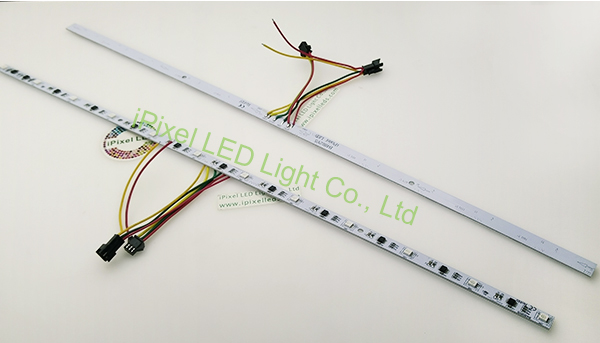

In accordance with his request, the size is 550mm x 12mm, DC5V working. The rigid board with 12pcs Epistar MD5050 chip & 12pcs TM1804 IC & 12pcs lens per board with the wires in the middle. The center distance between each led bead is 48.8mm.
|
