iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
Application:
1. Hotels, restaurants, night clubs,
2. Coffee / wine bars, shopping malls,
3. Shops, cinemas, beauty centers,
4. office fronts, kitchens or living rooms, etc.

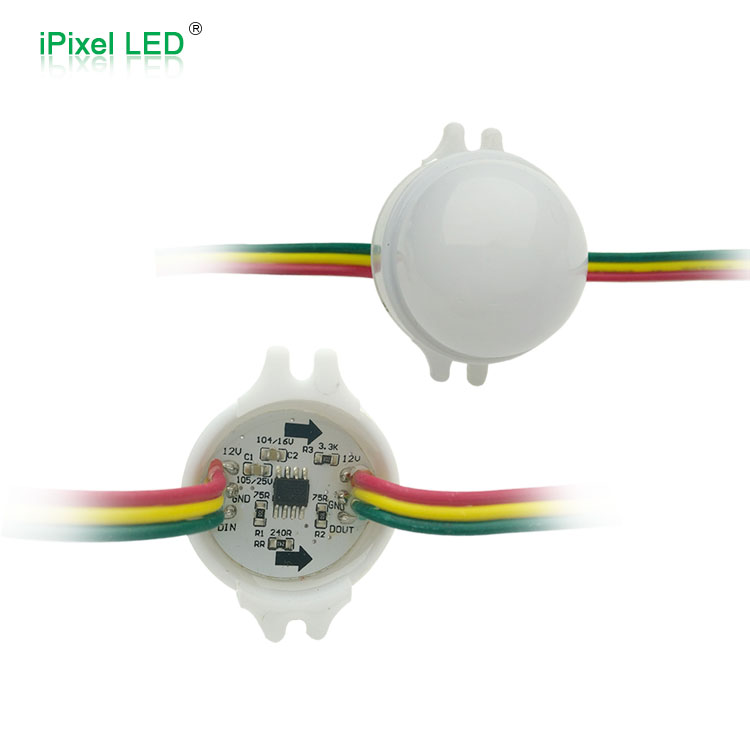

30mm LED Pixel Light
Product Parameter:
| P/N | Dimension | LED Qty | Color | V | IP | Beam | Power | Chip |
| P30V12 | ø30mm | 3pcs 5050 RGB | RGB digital | DC12V | IP67 | >140 | 0.72W | WS2801 /WS2811 |
Features :
1.RGB Pixels are digitally-controllable lights (addressable),
2.You can set
to any color, or animate by microcontroller ,
3.There are four flanges molded in
so that you can 'push' them into a 32mm drill hole in any material up to
1.5mm/0.06" thick but it have to put some silicon glue on the back side of
the ears makes it more strong you may also install it on the wall and
hold it by screw or silicon on backside of panel,
4.They're typically used to make outdoor signs,

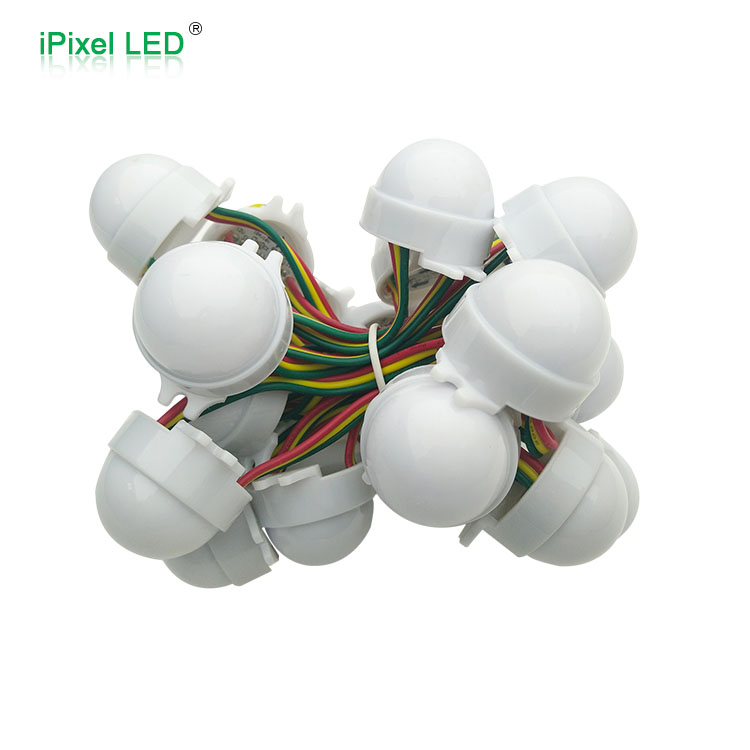

5.The pixels are 20pcs per string connected by 4Pin wire ,
6.Data is shifted down from one pixel to the next so that you can easily connect to the strand or attach more onto the end (we also could do custom cable length ).

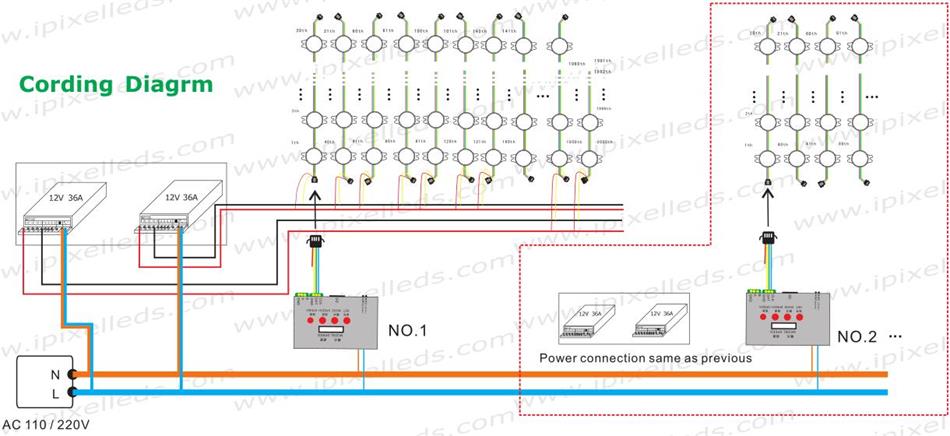

Connection:
