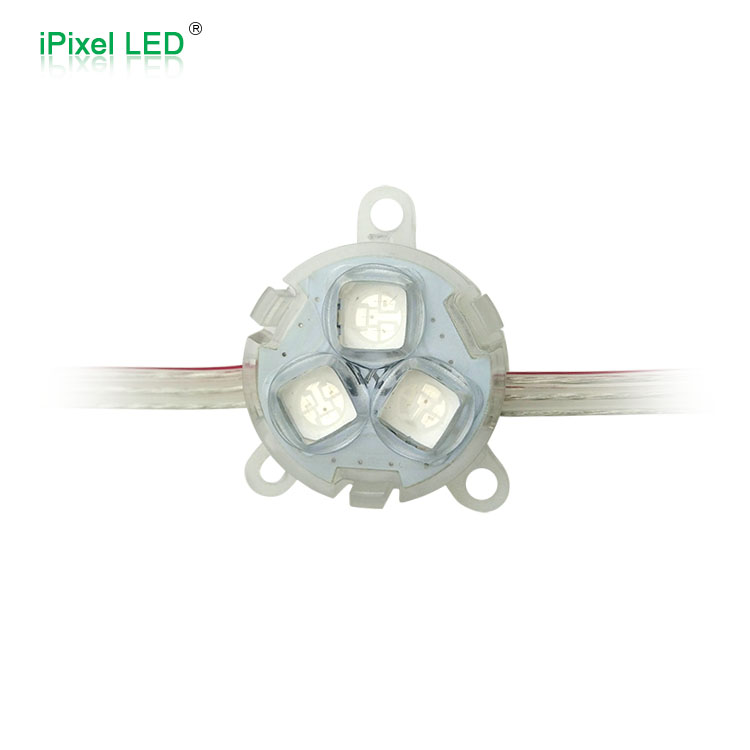

30mm LED Pixel with Lens

Product Parameter:

Features :

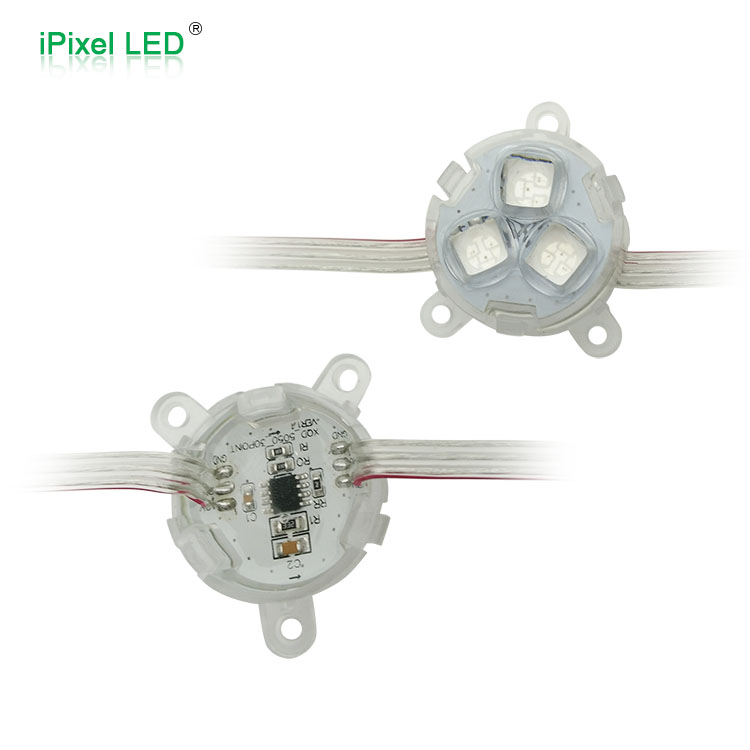

1.RGB Pixelsare digitally-controllable lights (addressable)1-Individually control: 1pcs led pixel & &  1IC (UCS1903 30mm LED Pixel with Lens
2.Waterproof: Yes IP66, with silicon glue waterproof protection.
3.Installation: Easy to install, you'd better drill the hole about 30-32mm.
4.Power supply: You must use a 12V DC power supply to power this pixel, do not use higher  than 13V or you can destroy the entire pixel.
5.Connetors: 3PIN JST female and male connectors,also can be waterproof connectors, DAT, DC12V+, GND-,
6.20pcs/chain usually, You can connect each chain by male and female connectors easily.

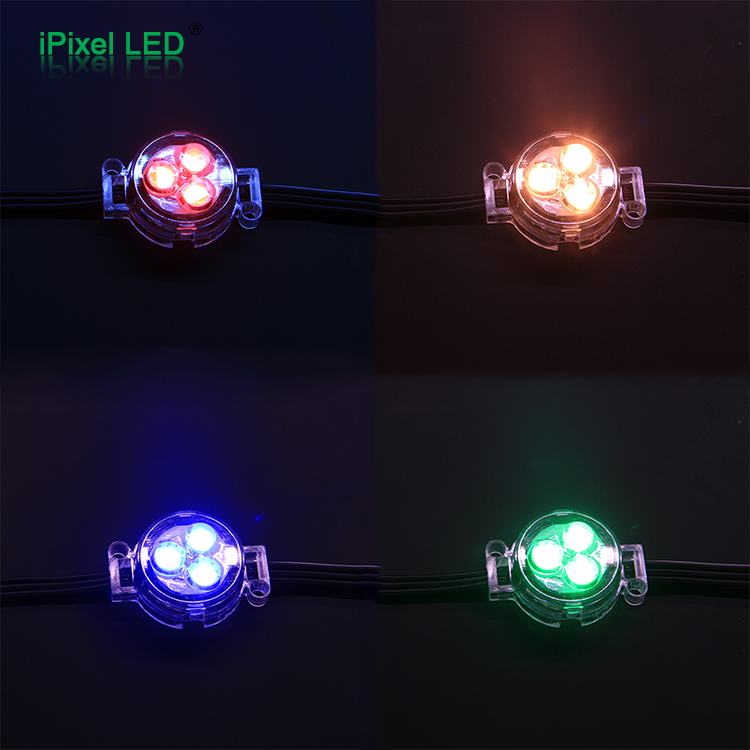

7.Color and effect: addressable lights you can  set any color, or animate, like running water chasing and scanning etc.
8.Factory sales directly, good quality and price, offer 2 years warranty and quickly after-sale service.

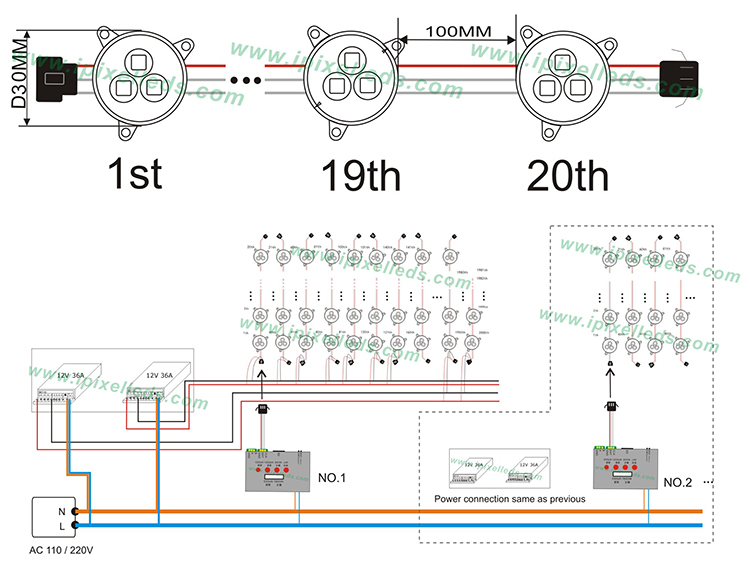

Connection:
