Application:
1. rides,carousels
5. Casino lighting

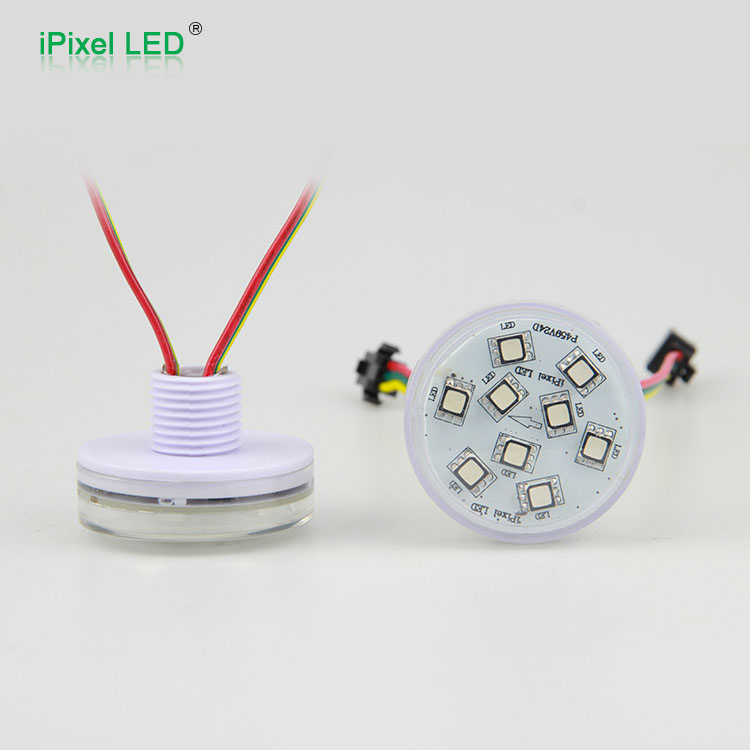

45mm 6leds Pixel light
Product Parameter:
|
Model No. |
Body Diameter |
LED Quantity |
VCC |
Power(W/PCS) | Cover color |
MCD per PCS |
Waterproof |
IC Chip |
|
P456V24 |
45mm |
6 pcs 5050RGB |
DC24V |
1.44W |
Clear |
R4200/G9600/B4000 |
IP65/ IP67 |
SM16703 |
|
P459V24 |
45mm |
9 pcs 5050RGB |
DC24V | 2.16W |
Clear |
R6300/G14400/B4600 |
IP65/ IP67 |
UCS1904 |
Features:
1.This is the new type programable LED Pixel each LED ball control by a IC Chip with 6 LED/9 LED,

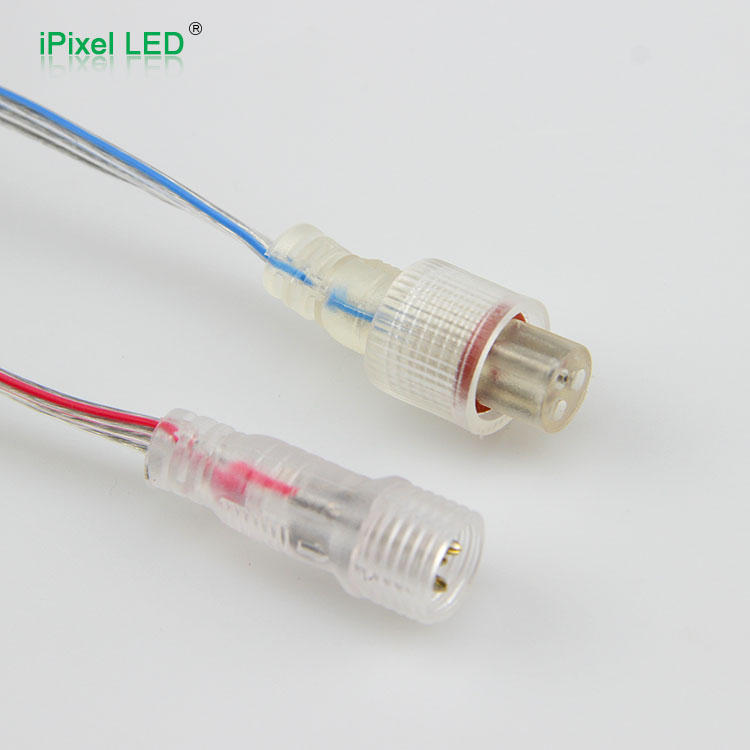

2.We have two version connectors of this pixel LED the connectors on back side is non-waterproof,
3.This connector is waterproof each Pixel included 1pcs screw- Recommended drill a 20-25mm Hole on the panelduring the installation,
4.Every 20pcs in a group ,supply power to it to avoid voltage drop- lifespan:30000H.
5.Warranty :2 Years

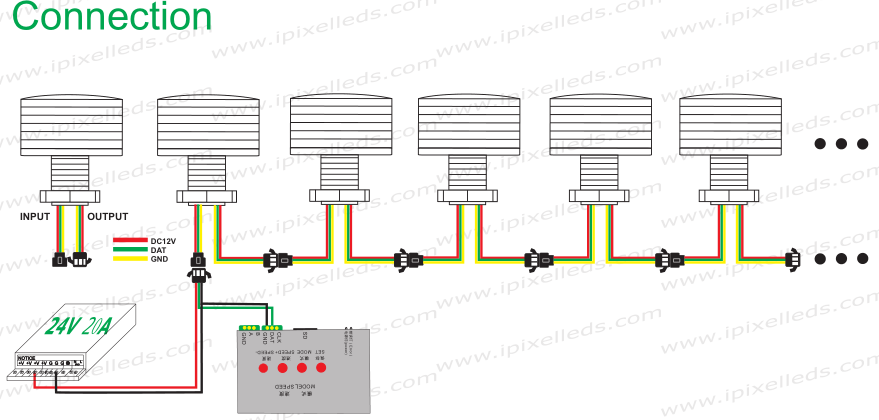

Connection:
