RGBW/WW LED Strip - Single Color LED Strip - Products

Single Color LED Strip

RGBW/WW LED Strip

Application:

1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

Email: inquiry@ipixelleds.com

Share to

RGBW/WW LED Strip

Product Parameter:

P/N	Size:mm	LED type	LED Qty	VCC	Angle	IP	Power	White Chip CCT
S605050RGBW	1000*12mm	SMD5050	60 LED/M	DC12V/24V	120	IP20/IP65	19.2W/M	6000-6500K
S605050RGBWW	1000*12mm	SMD5050	60 LED/M	DC12V/24V	120	IP20/IP65	19.2W/M	2800-3200k

Features :

1.Flexible,
2.3M tape attached on back side of strip (IP20),
3.10pcs silicon clips & 10pcs screw on waterproof strip (without tape),
4.Cut-able every 5cm(3 LEDs)/10 cm 6 LEDs,
5.IP20 Non-waterproof/IP65 silicon tube waterproof,

6.CE and RoHS complian.

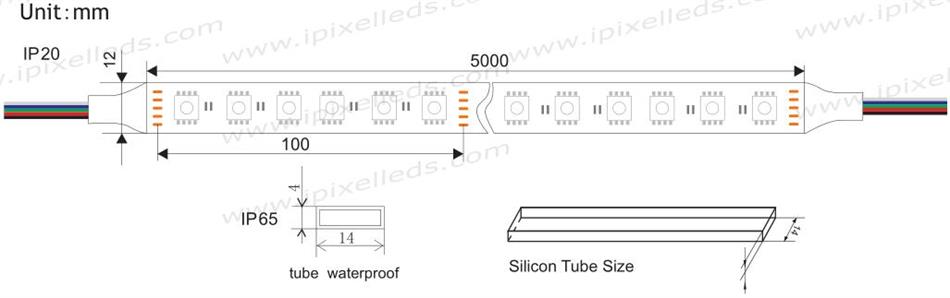

Technical Parameters:
1.Light source: 5050 Epistar SMD LEDs 4in one.
2.Consumption watts per roll: 96W(Max).
3.Entire roll size: 5000mm x 12mm.
4.IP 65 Strip thickness: 4mm.
5.Operation Temperature:-20℃-60℃.
6.Wire length: 150mm (at both end).
7.Packing: 5meter a roll.

Connection:
