iPixel LED Light Co.,Ltd
Make the world colorful
Make the world colorful
Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge

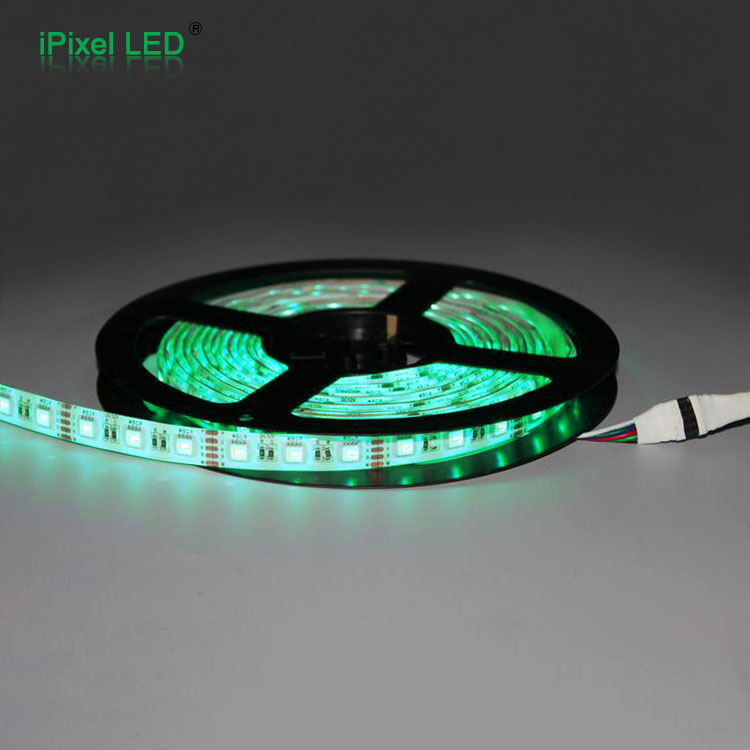

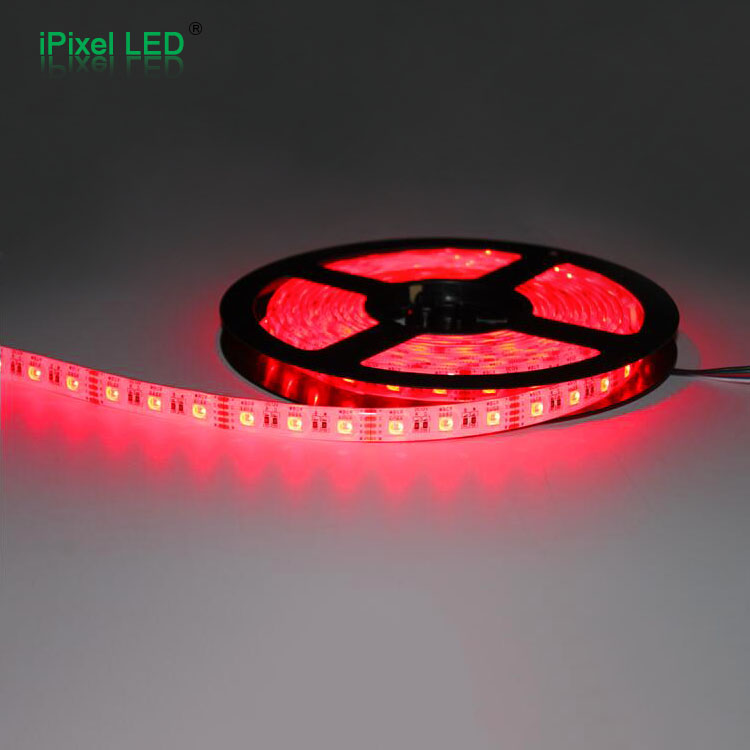

60LED RGB Flexible LED Tape
Product Parameter:
| P/N | Size/mm | LED/Qty/m | Brand | Luminance/LED | Angle | Voltage | Wattage/M | IP Rate |
| S605050 | 5000*10 | 5050/60pcs | Epistar | 18--20LM | 140 | DC12/24V | 14.4W | IP20/65 |
| S605050RGB | 5000*10 | RGB 5050/60pcs | Epistar | R:500 G:1400 B:400 | 140 | DC12/24V | 14.4W | IP20/65 |

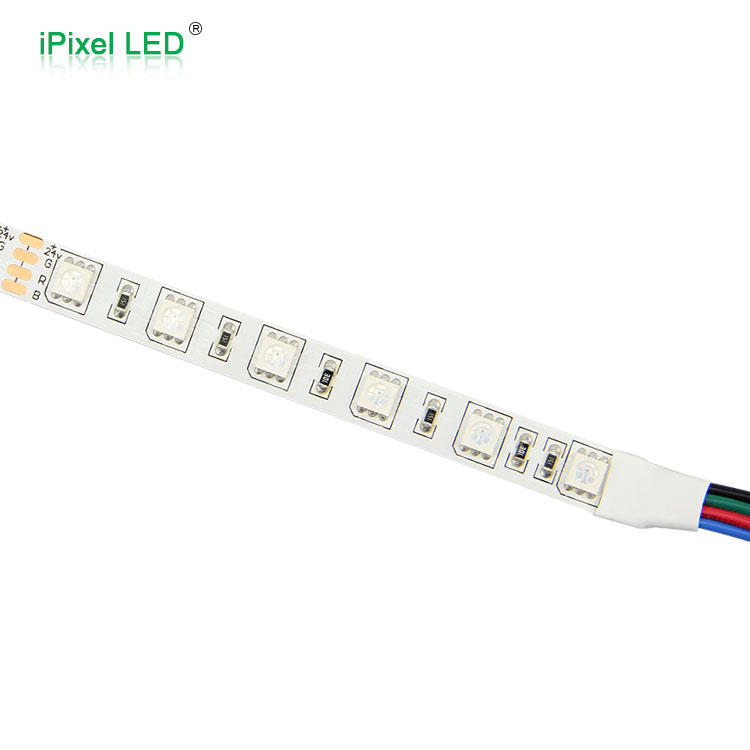

1.This flexible LED strip soldered 60pcs SMD 5050 LED lamp,

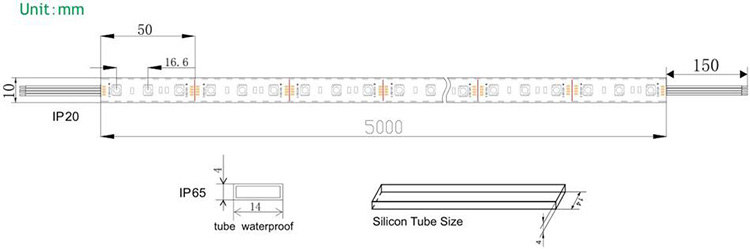

2.Flexible PCB: White color , PCB Width 10mm.Cutable each set of 6 LED,
3.Waterproof version -Silicon Tube coating: W14*H4mm,
4.Both 12V /24V available,constant voltage operation,
5.Voltage drop from start to end of 5 M ± 2V.we suggested you supply power on each side,
6.Each end soldered a 4 Pin bare wire 20AWG at 15cm length,
7.Standard size 5M in a reel, customizable of length,
8.The whole PCB material are the Copper and 50cm in a set ,10pcs 50cm sold together as a reel the 3M adhesive attached on backside of the tape.
Connection:
