Application:
1. Restaurants, lounges, casinos,
2. Homes and retail stores,
3. Decorative and accent lighting,
4. Edge lighting glass or acrylic plates,
5. Entertainment centers and home theater,
6. Under cabinet lighting.

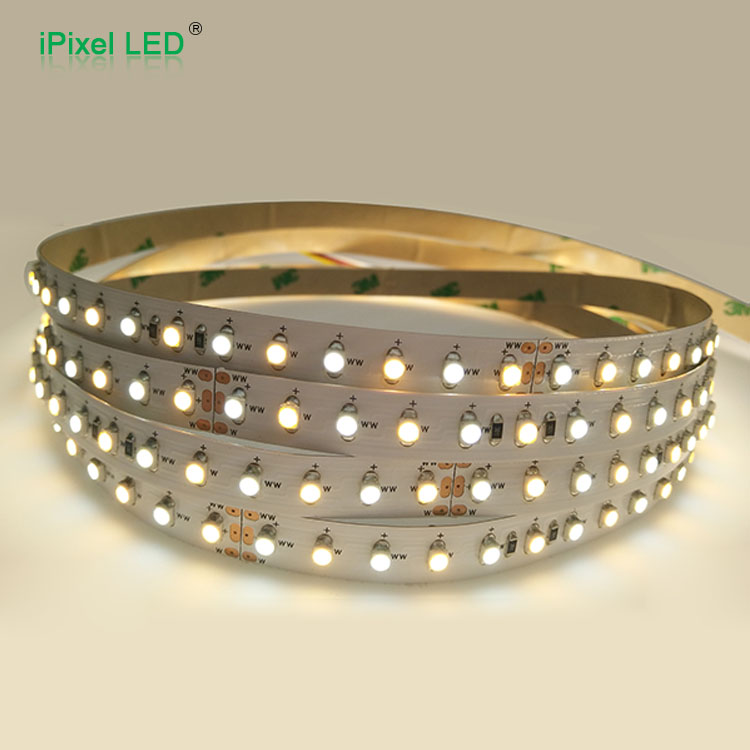

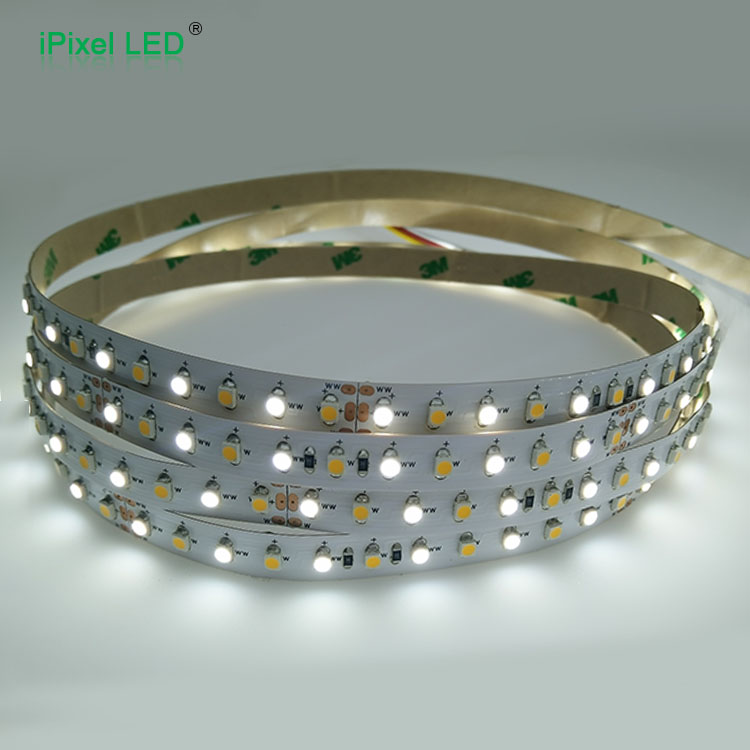

3528 Color Adjuatable W/WW LED Strip
Product Parameter:
| P/N |
Emitting Color |
MCD per/ LED |
CCT |
Size:/mm | LED/Qty/M | LED Type | Voltage | Power (W/M) | IP Rate |
| S1203528 |
warm white |
ww:480 |
ww:2800-3200 |
5000*10 |
120PCS (60pcs w,60pcsww) |
SMD3528 | DC24V | ww:3.6 | IP20 /IP65 |
| white |
w:420 |
w:6000-6500 |
DC24V |
w:3.6 |
IP20 /IP65 | ||||

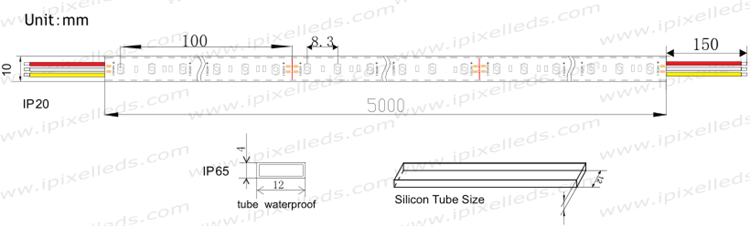

1.This flexible led tape is 10mm wide within 60 pcs white & 60 pcs warm white leds in a meter, color adjustable,
2.Color white PCB, with grown color 3M tape attached,
3.DC24V working voltage, and it's cutable every 10cm ,there is a a cuting mark with,
4.Soldering Pad , 12pcs LED in a set,

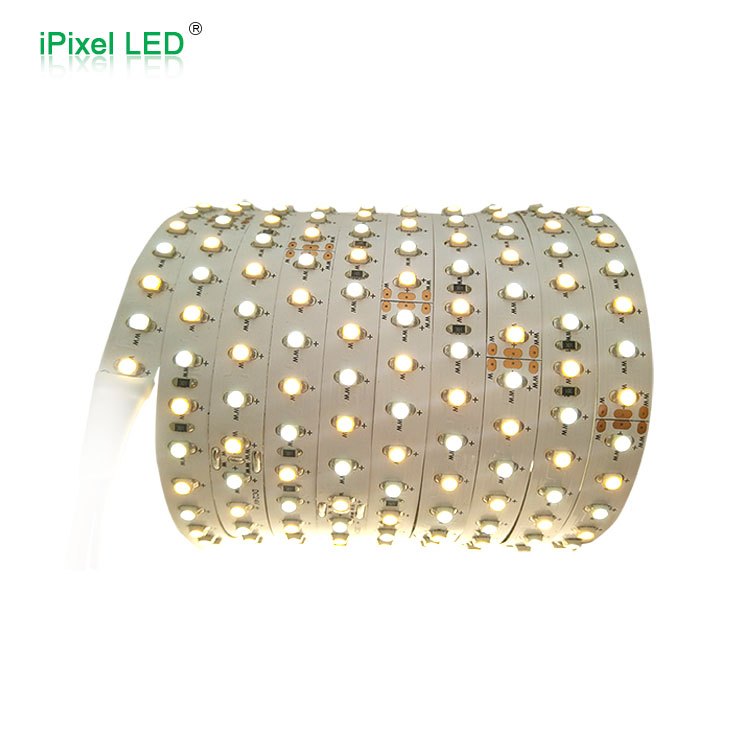

5.5 meter in a reel which packed by a silver bag,
6.The waterproof version coated by a silicon tube, wide :14mm,

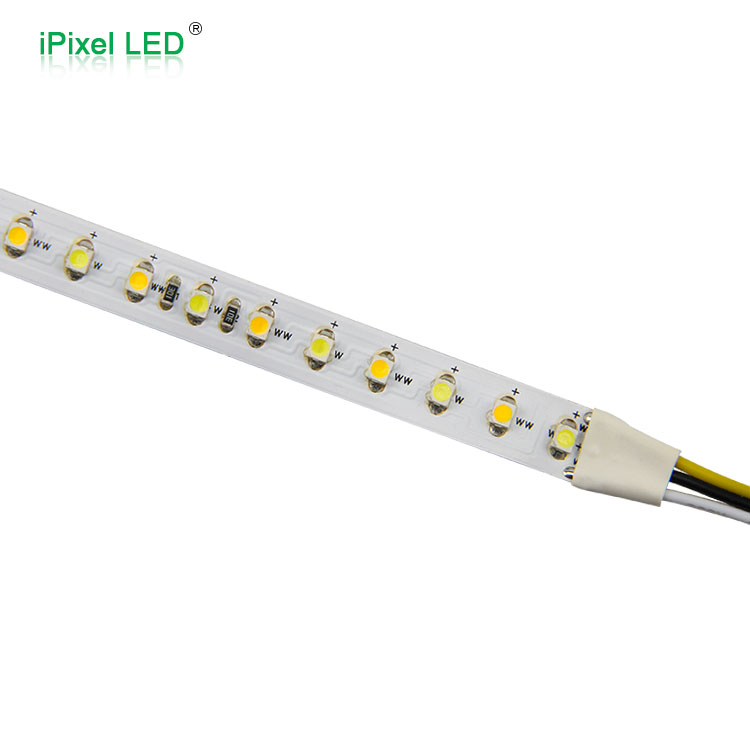

7.Both end of strip attached 3 pcs bare wire for powering, the cable in the middle is DC24V.
