Application:
1. Restaurants, lounges, casinos,
2. Homes and retail stores,
3. Decorative and accent lighting,
4. Edge lighting glass or acrylic plates,
5. Entertainment centers and home theater,
6. Under cabinet lighting.
| P/N |
LED/Qty |
Angle |
Voltage |
Wattage |
uminance/m |
Size |
IP |
| S1205050 | 5050 12leds/m | 140 deg | DC24V | 29W(MAX) |
2400-2600LM |
5000*15mm | IP20/IP65 |

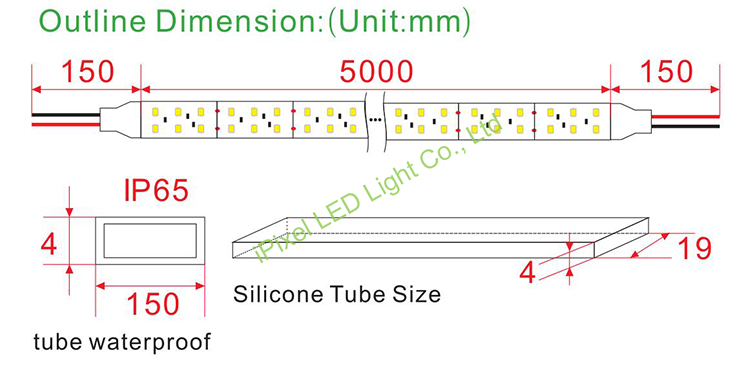

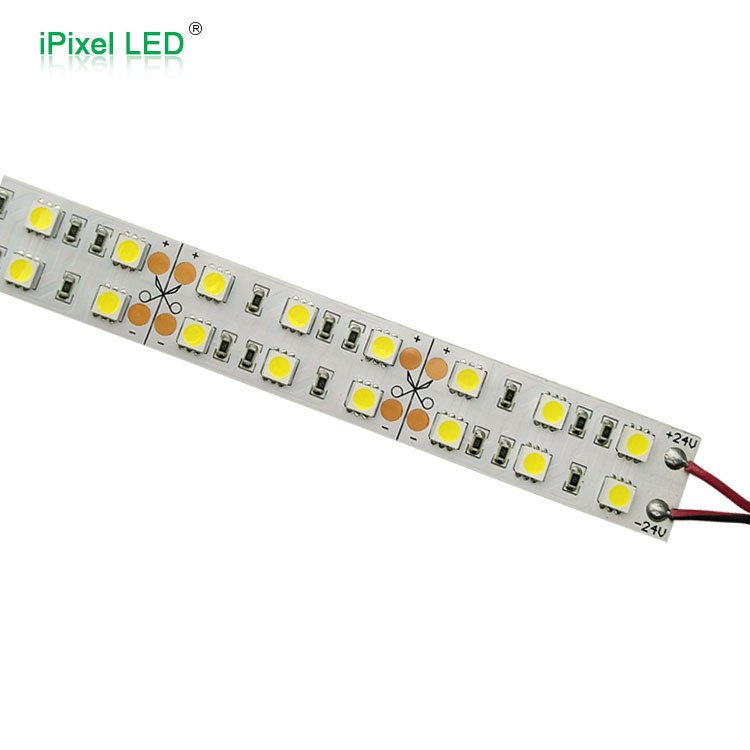

1.This flexible LED strip soldered 120pcs SMD 5050 LED lamp in two line.
2.Flexible PCB:White ,PCB Width 15mm.
3.Cutable each set of 6 LED.

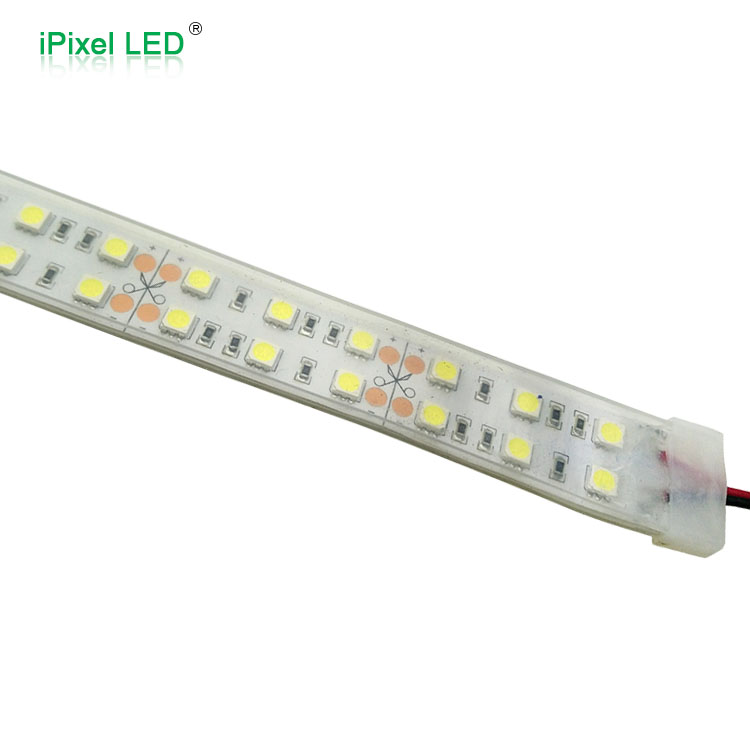

4.Waterproof version-Siicon Tube coating:W17*H4mm.
5.DC24V constant voltage operation. Voltage drop from start to end of 5M±2v.
6.Each end soldered a 2 Pin bare wire 20AWG at 15cm length.
7.Customizable of length.
