Application:
1. Cove lights, back lights,
2. Cabinet lights, edge light,
3. Architectural lights for corridor,
4. Canopy, archway,
5. Lights for path and contour marking; etc.

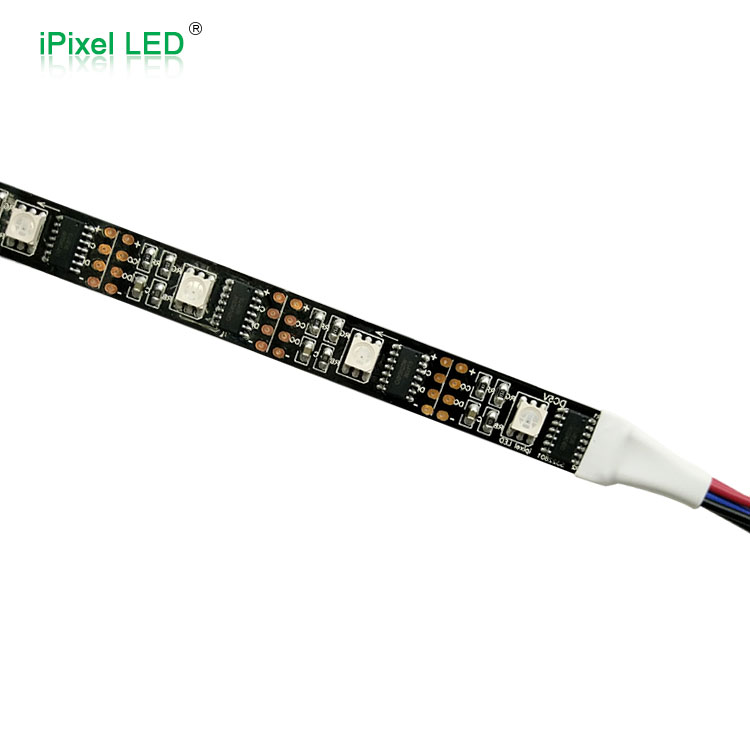

Addressable WS2801 LED strip
Product Parameter:
| Model | size/m | Voltage | Power/M | IC model | Bit | IP grade | Gray level | LED Qty/m |
PCB Color |
| S322801W | 1000*12mm | DC5V | 7.68W | WS2801 | 8 | IP65 | 256 | 32pcs 5050 | White |
|
S322801B |
1000*12mm |
DC5V | 7.68W |
WS2801 |
8 |
IP65 |
256 |
32pcs 5050 |
Black |
1.This RGB LED strip allows you to individually control all 32 RGB LEDs on a waterproof, self-adhesive strip,
2.Each LED has its own WS2801 IC and current limiting resistors,
3.Each 5m section comes pre-terminated with 0.1" spaced 4-pin connectors as well as a 2-pin power connector,

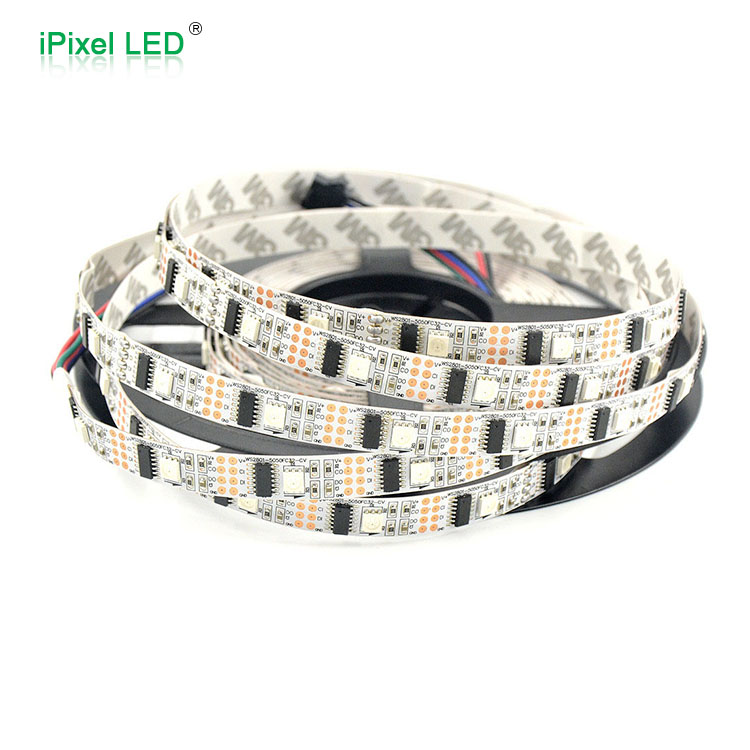

4.In the window of photoes ,show there is White Color strip addressable ,we also could do other single color strip addressable ,

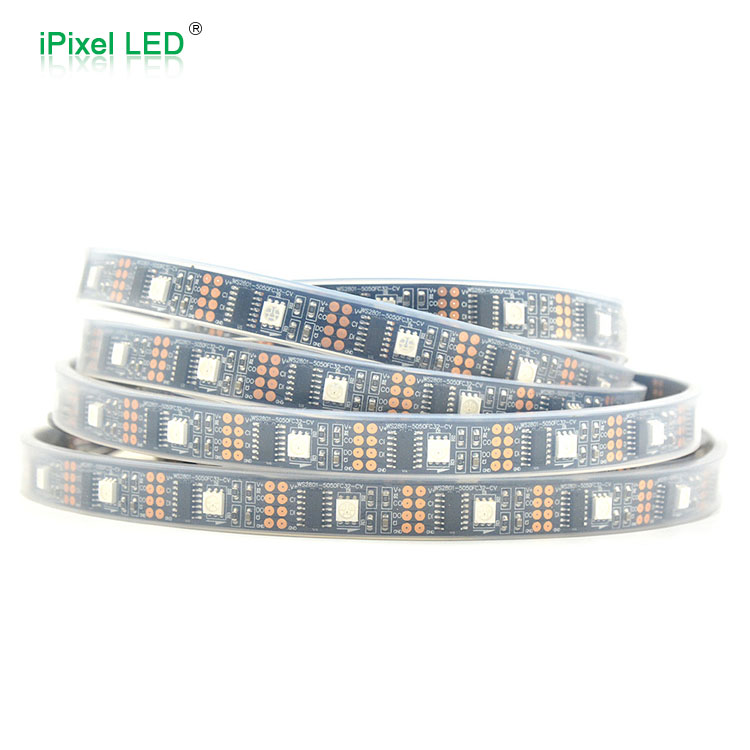

5.please note that the waterproof version of this strip 's width:16mm ,
6.same as our WS2812B or APA102C address strip , this one also cut-able each single LED.
Connection:
