Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
8 Pixel DMX LED Strip
| P/N | Size:mm | Pixel/M | LED Qty | LED | Protocol |
Voltage |
MCD/LED | Power/M | IP |
| S-DMX512 | 5000*10 | 8 | 48LEDs/m | 5050RGB | DMX512 | DC24V | R:700 G:1600 B:600 | 12W | IP20/65 |
Features :

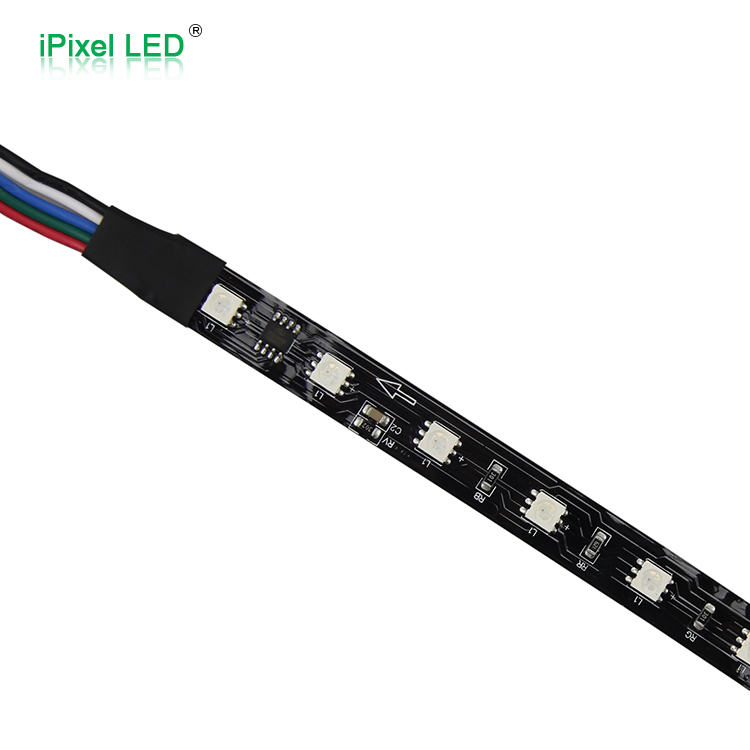

1.This a DMX Control Flexible LED strip tape ,
2.The whole strip had 8 Pixel which is 24CH DMX address in one meter,
3.48pcs supper bright Epistar SMD RGB LED ,
4.Black color PCB in 10mm width,
5.Each end of strip soldered 5 Pin bare wire at 15cm length,

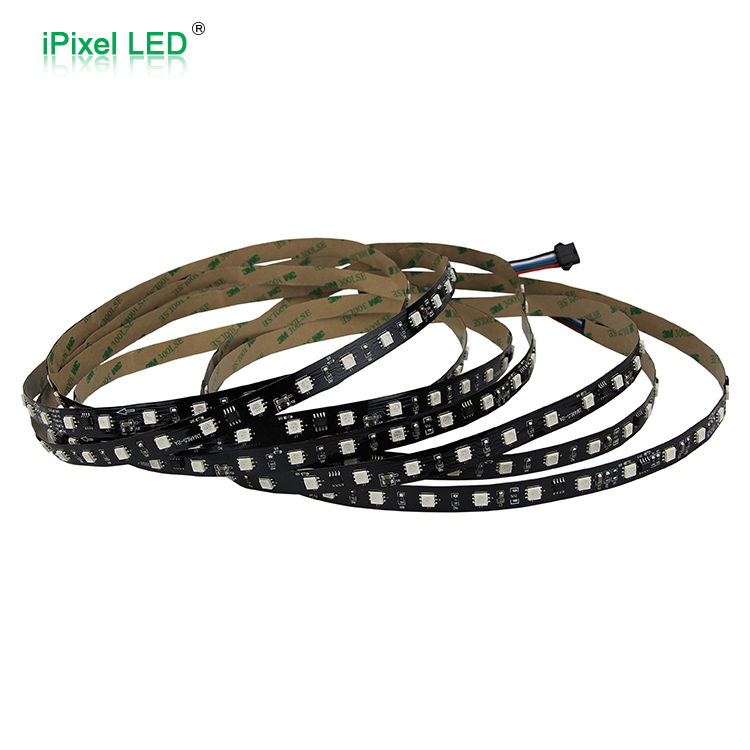

6.Standard size 5m in a reel,cutable every 50cm , regarding it's 24VCC input.

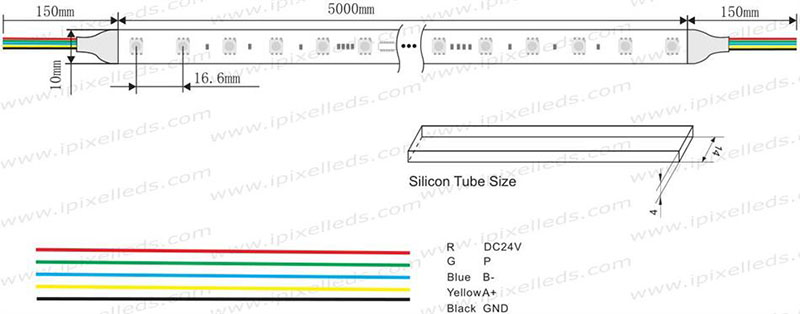

There losing 2V on end of strip (end of 5), brightness looks the same but recommend to supply the power on both side of 5m the whole reel strip had 40 pixel 120 DMX channel, you must set the address by a DMX coder, it's manually , not Auto-addressing the waterproof version made by a silicon tube in 14mm width, 3M adhesive on backside.

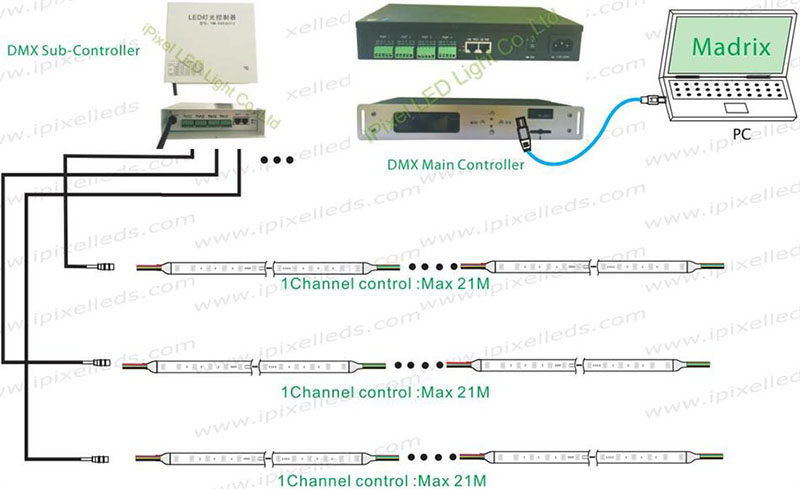

Connection:
