Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

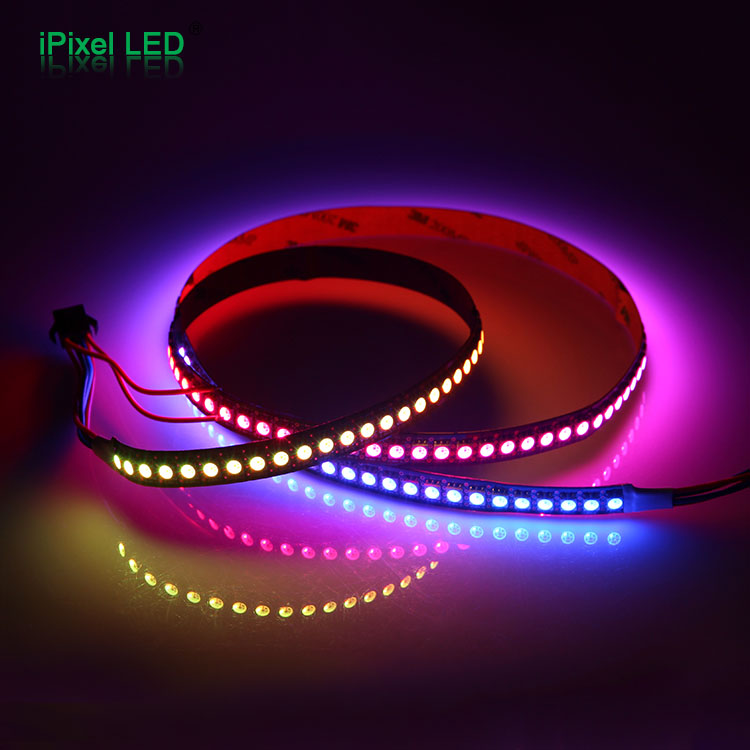

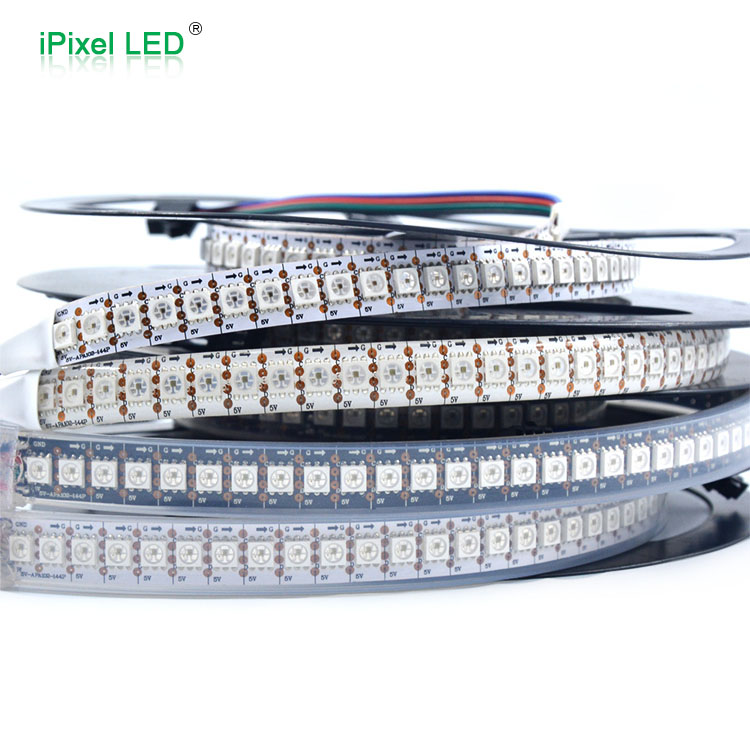

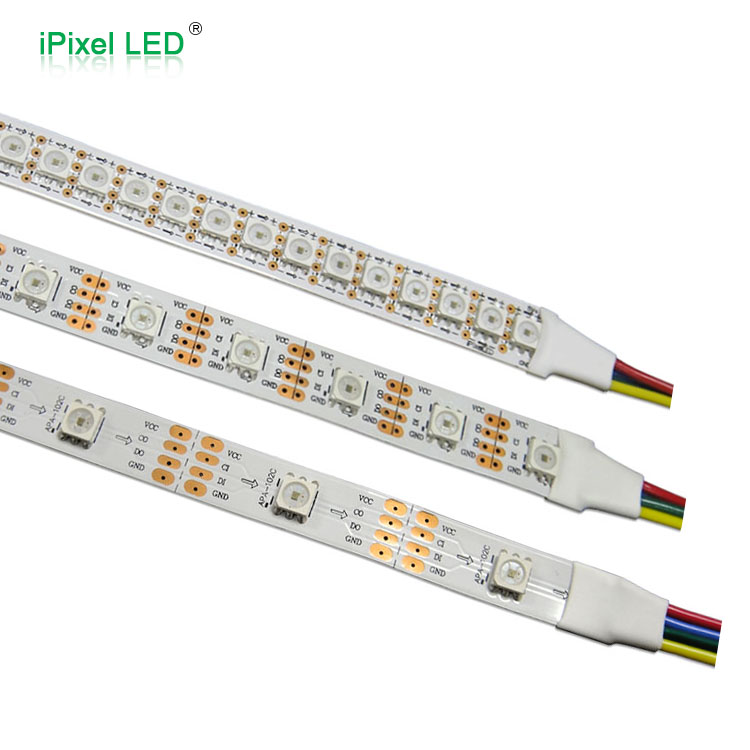

APA102/SK9822 LED Strip
Product Parameter:
| P/N | LED /Qty | Light Source | Size:mm |
VCC |
Power | IC | MCD /M | IP Rate |
|
S30102 |
30leds/m |
5050 RGB |
1000*10mm |
DC5V |
7.2W/m |
APA102/SK9822 |
R:24000 G:42000 B11400 |
IP20/IP65 |
|
S60102 |
60leds/m |
5050 RGB |
1000*12mm |
DC5V |
14.4W/m |
APA102/SK9822 |
R:24000 G:42000 B11400 |
IP20/IP65 |
| S144102 | 144leds/m | 5050 RGB | 1000*12mm |
DC5V |
34W/m | APA102/SK9822 | R:57600 G:100800 B:27360 | IP20/IP65 |
1.Control IC included, supporting numerous Color-change effects,
2.Pcontrol by SD controller,Arduino,DMX512,Artnet,
3.Flexible PCB 5V low voltage input,

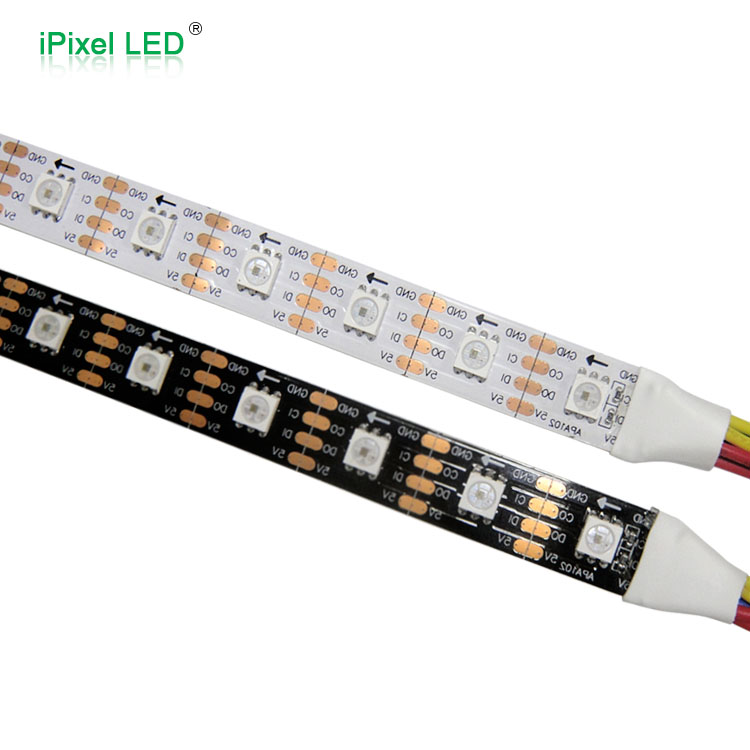

4.PCB Color: White & Black available for choose,
5.Absolutely addressable ,each IC built inside RGB LED,
6.1M per roll,Customer’s size available also,
7.The non-waterproof version strip attached white color 3M tape on back side of PCB but the waterproof version only included 5pcs silicon clips and screw for installation use(without 3M tape).
8.Each LED cut-able.

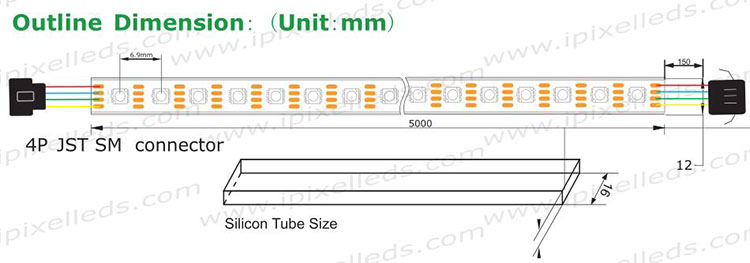

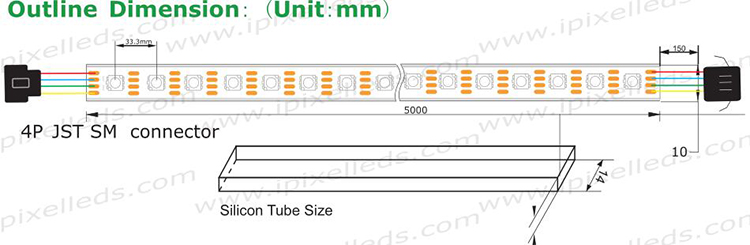

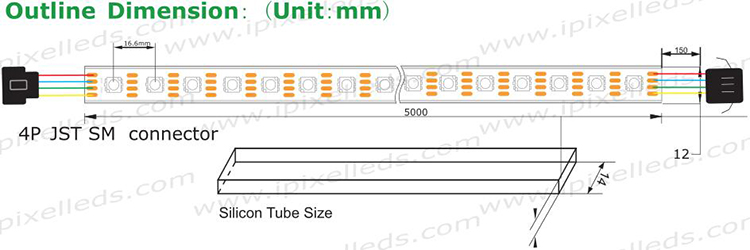

Connection
30LEDs/m:
60LEDs/m:
144LEDs/m:
