Application:
1. Hotels,restaurants,nights clubs,
2. Shopping malls,various shops,
3. Coffee/wine bars, furniture light
4. Cinemas,beauty centers,
5. Coffee/wine bars, furniture light.

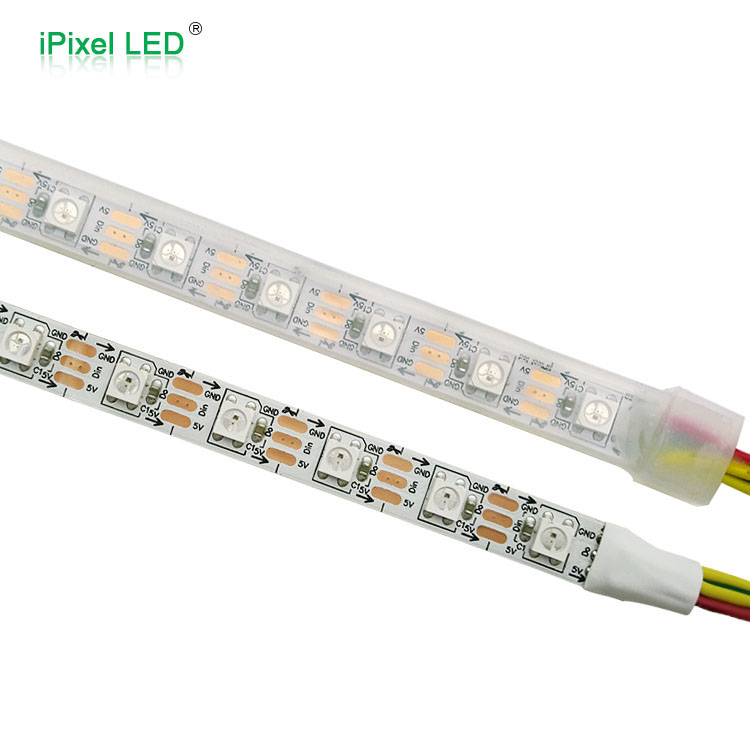

WS2812B/SK6812 LED Strip
Product Parameter:
| P/N |
Beam angle |
VCC | Power/M | LED Qty | IC Chip | Size(mm) | PCB Color |
Lumen per meter |
IP Rate |
|
S302812B |
120 deg |
DC5V |
7.2W(MAX) |
5050 30leds/m |
WS2812B/SK6812 |
5000*10 |
White/Black |
R:12000 G:21000 B:5700 |
IP20/IP65 |
|
S602812B |
120 deg |
DC5V |
14.4W(MAX |
5050 60leds/m |
WS2812B/SK6812 |
5000*10 |
White/Black |
R:24000 G:42000 B:11400 |
IP20/IP65 |
|
S742812B |
120 deg |
DC5V |
18W(MAX) |
5050 74leds/m |
WS2812B/SK6812 |
5000*12 |
White/Black |
R:29600 G:103600 B:28120 |
IP20/IP65 |
| S1442812B | 120 deg | DC5V | 34W Max | 5050 144leds/m | WS2812B/SK6812 | 1000*12 | White/Black |
R:57600 G:100800 B:27360 |
IP20/IP65 |
1

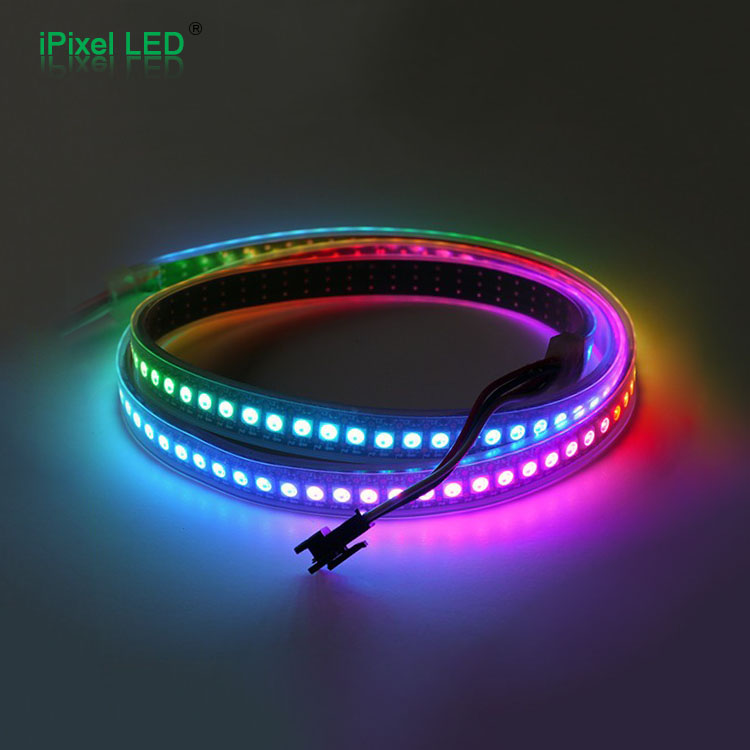

1.30/60/74/144 individually-controllable LED pixels on a flexible PCB,
2.It's completely out of control and ready for you to blink,

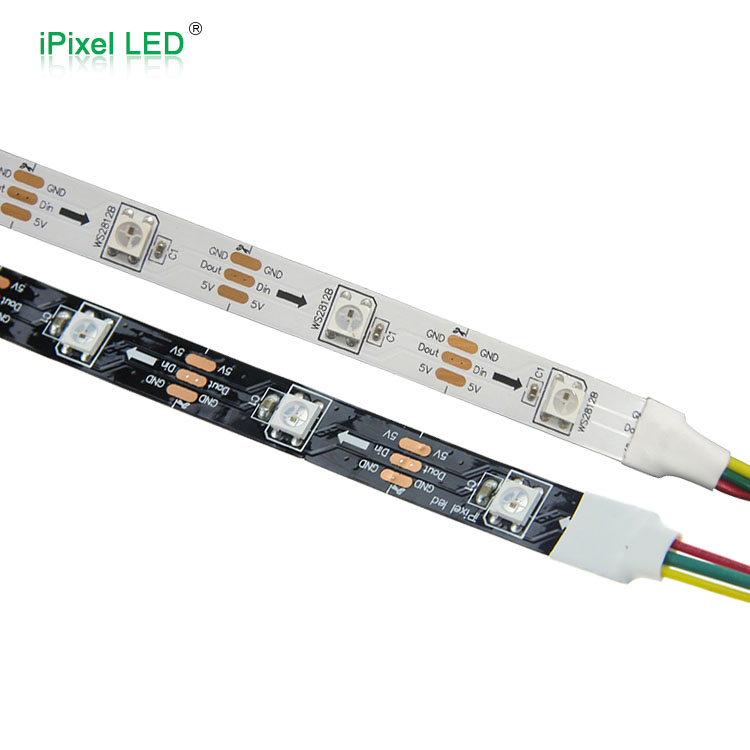

3.And an extra heavy flex PCB in white & Black version,
4.The digitally-addressable type of LED strip. You can set the color of each LED's red, green and blue component with 8-bit PWM precision (so 24-bit color per pixel),
5.The LEDs are controlled by shift-registers that are chained up and down the strip so you can shorten or lengthen the strip,
6.Only 1 digital out pin is required to send data. The PWM is built into each LED-chip so once you set the color you can stop talking to the strip and it will continue to PWM all the LEDs for you,
7.Regarding it's flexible PCB material, you can cut this stuff pretty easily with wire cutters, there are cut-lines every LED. Solder to the 0.1" copper pads,
8.You can also connect strips together to make them longer, just watch how much current you need .
1

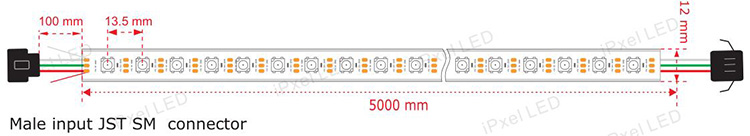

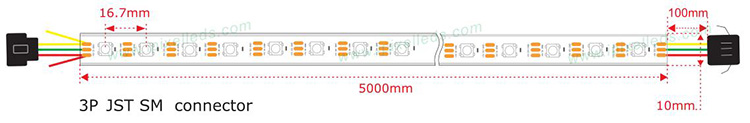

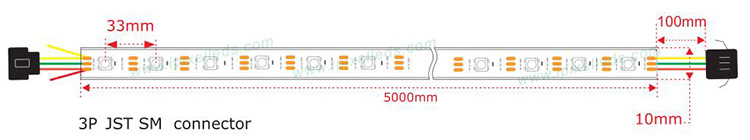

Outline Dimension:
30LEDs/m
60LEDs/m
74LEDs/m

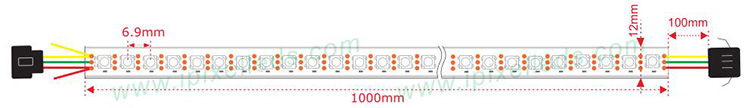

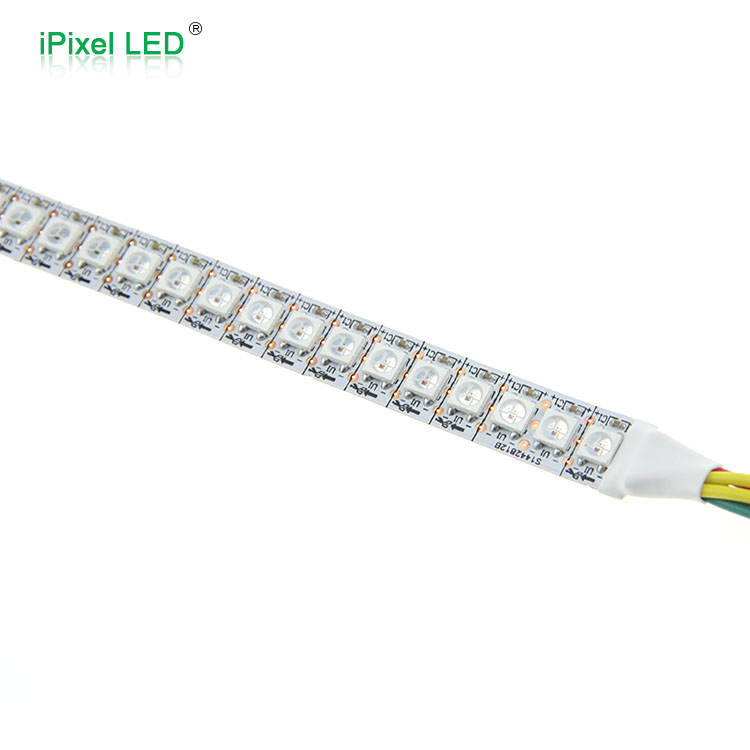

144LEDs/m

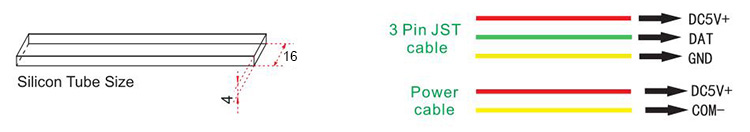

30/60/74 LEDs/m Silicon Tube and Cable
144 LEDs/m Silicon Tube and Cable
