Application:
1. DIY electronic production.
2. Advertising.
3. Display.
4. Subtitles
8*8 APA102C LED Matrix
Product Parameter:
| P/N | LED Qty/pcs |
Size(mm) |
Pixel | VCC | Power | IC | Lumen per LED(MCD) | IP |
| S1616APA102 | APA102 256leds |
L160*W160 |
256 | DC5V | 75W/pcs | APA102C | R:500-650 G:370-530 B:12-165 |
IP20 |

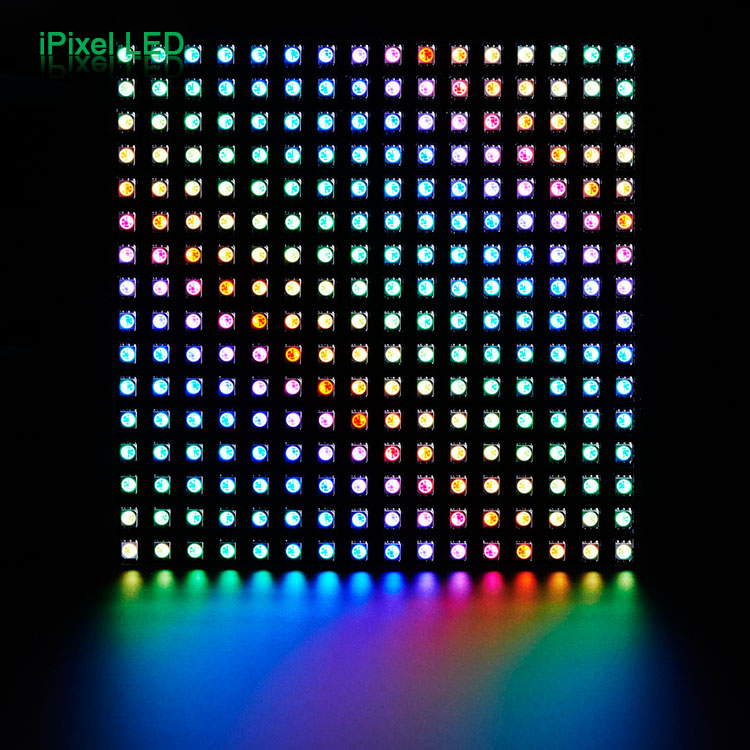

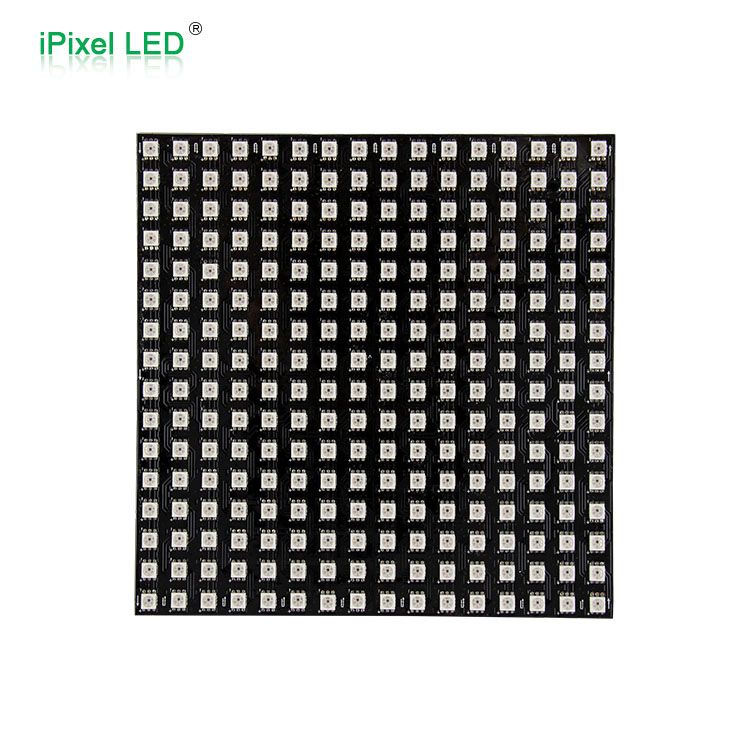

1. Individually addressable RGB LEDs (16*16 LEDs).
2. 24-bit color control (8-bit PWM per channel); 16.8 million colors per pixel.
3. Additional color-independent brightness control (5-bit PWM); 32 brightness steps per pixel.
4. SPI control interface，5 V operating voltage.
5. Each LED Matrix draws approximately 8A at full brightness.

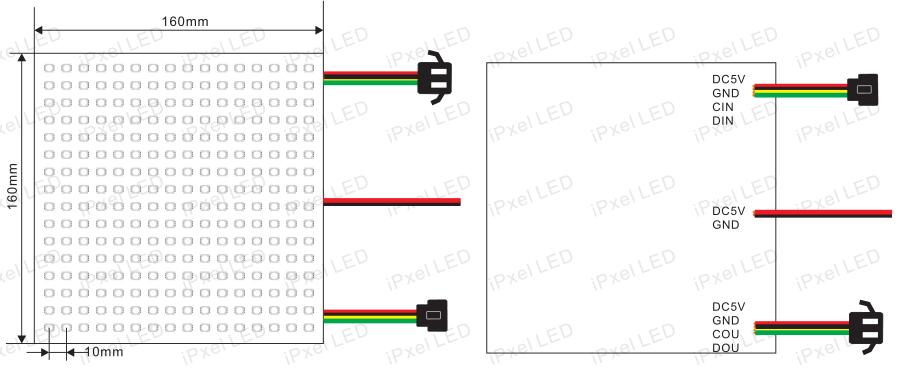

6. 160 mm width (16 LEDs) or 160 mm width (16LEDs) Pitch : P10.
7. Flexible,bendable IP20 rating，Black strip color.
8. Power/data connectors on both strip ends for easy chaining.
