8*32 WS2812B LED Matrix

Application:

1. DIY electronic production.
2. Advertising.

3. Display.

4. Subtitles

Email: inquiry@ipixelleds.com

Share to

8*32 WS2812B LED Matrix

Product Parameter:

P/N	LED Qty/pcs	Size(mm)	Pixel	VCC	Power	IC	Lumen per pcs	IP
S0832WS2812	5050 RGB 256leds	L80*W320	256	DC5V	75W/pcs	WS2811	R:102400 G:179200 B:48640	IP20

Features:

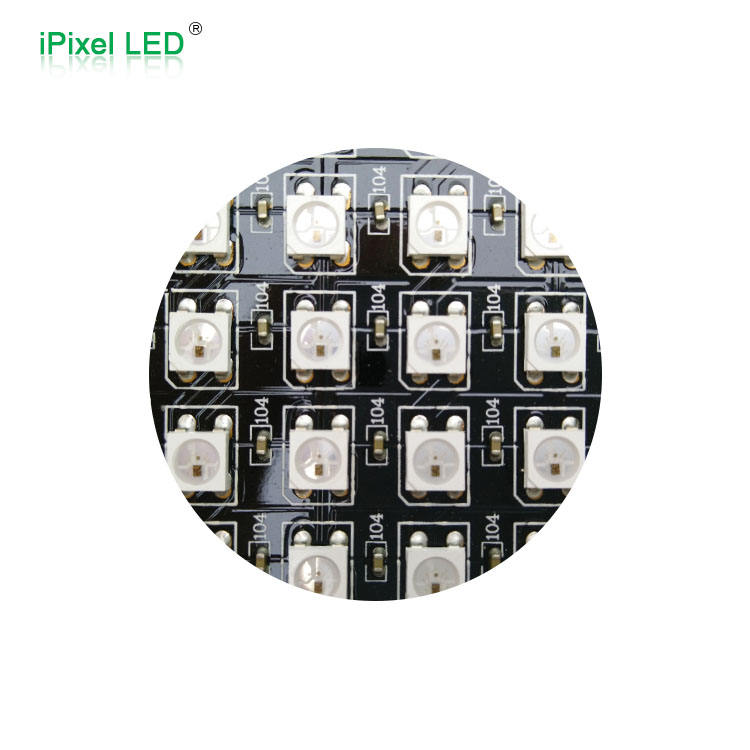

1. WS2812B flexible LED matrix-8x32 pixels.
2. It's very easy to add any letters while each individually control .
3. That’s 256 individually addressable LEDs on a 320mm x 90mm flexible panel. You can set any animations.
4. These panels require a 5V low voltage input for power which needs to be able to 5. source a good amount of current – up to 5A in most uses (15A required wen you set all LEDs in white color).

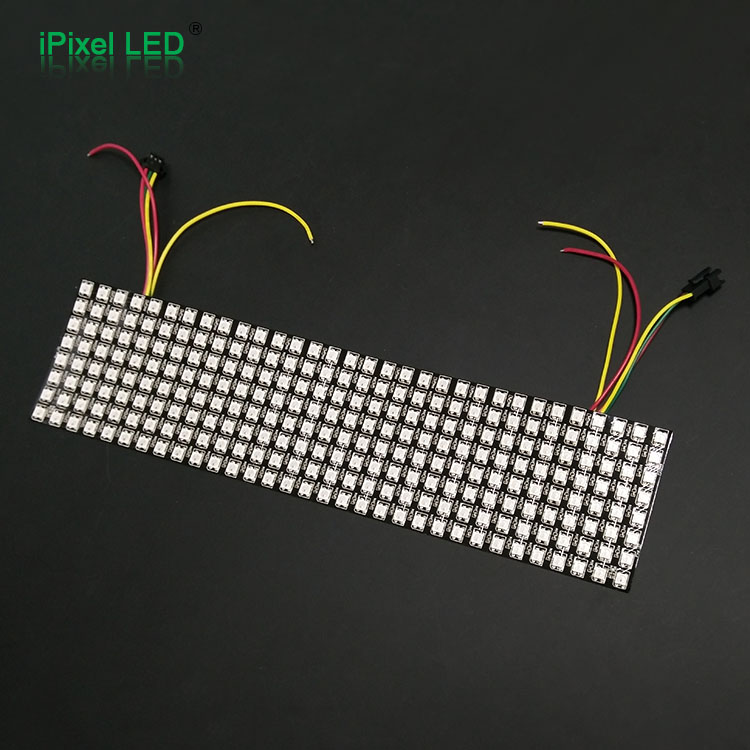

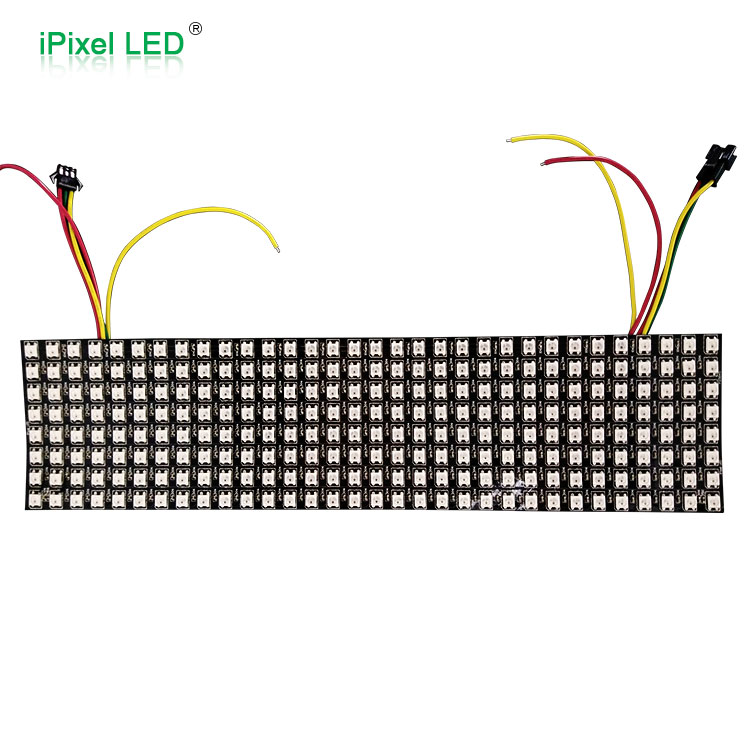

5. There are two 3-pin JST SM connectors and two pcs bare power cables.
6. Red :DC5V+, Yellow:COM-, Green:DAT, and Yellow GND.

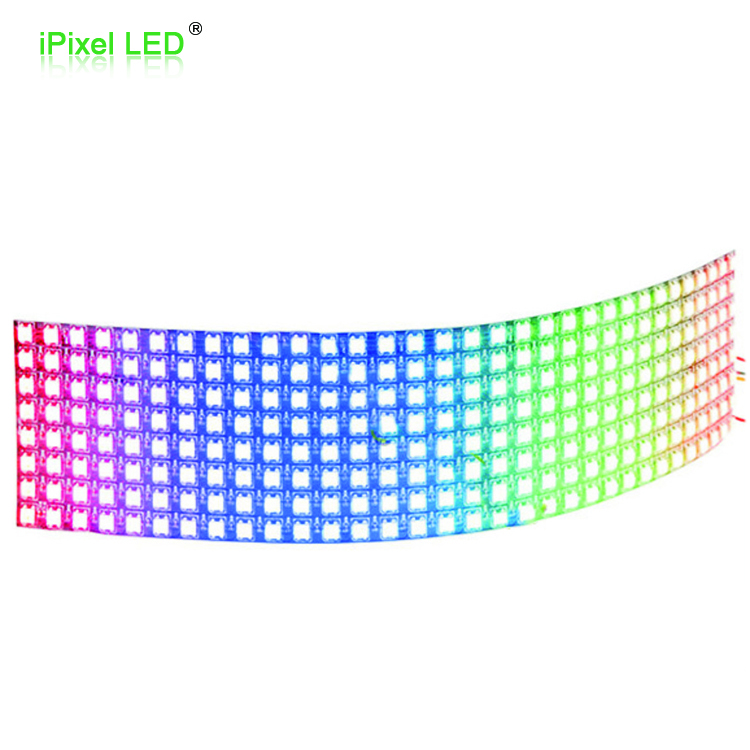

Note: pls pay attention to the matrix when you bending the flexible panel.

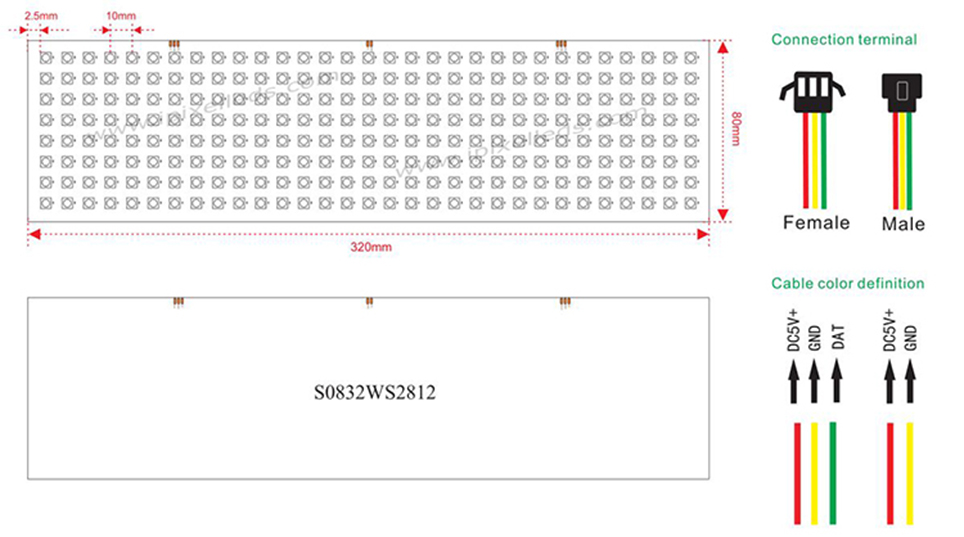

Connection:
