16*16 WS2812B LED Matrix

Application:

1. DIY electronic production.
2. Advertising.

3. Display.

4. Subtitles

Email: inquiry@ipixelleds.com

Share to

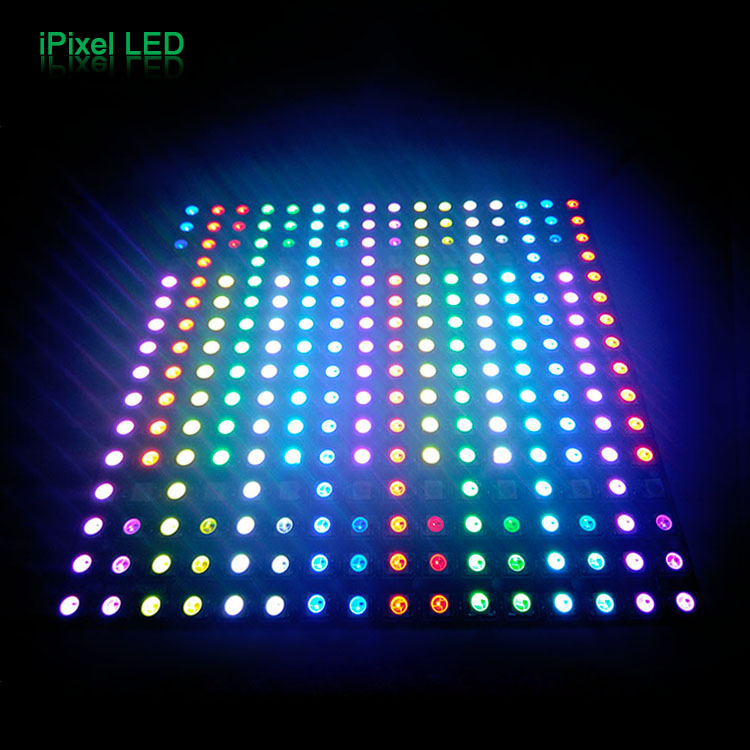

16*16 WS2812B LED Matrix

Product Parameter:

P/N	LED Qty/pcs	Size(mm)	Pixel	VCC	Power	IC	Lumen per pcs	IP
S1616WS2812	5050 RGB 256leds	L160*W160	256	DC5V	51W/pcs	WS2811	R:102400 G:179200 B:48640	IP20

Features:

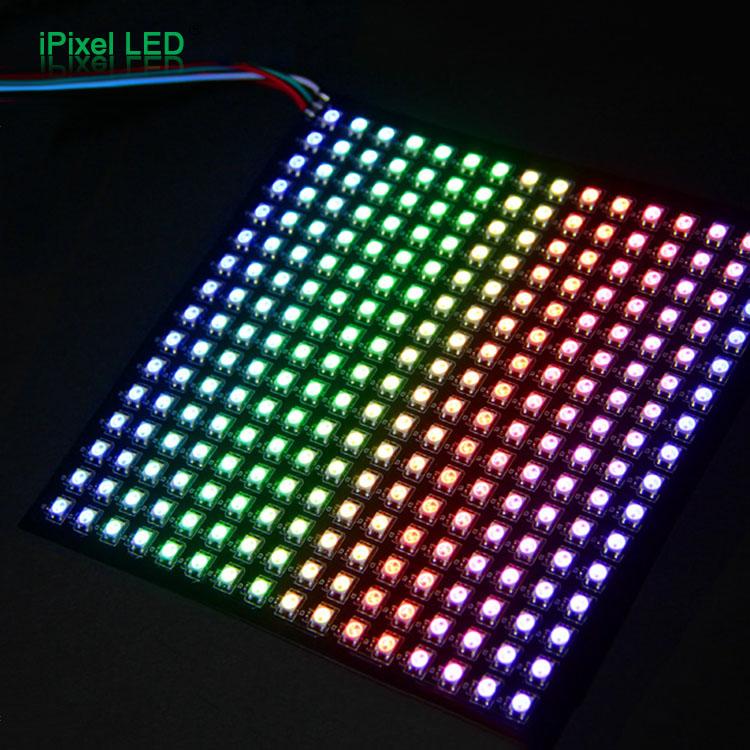

1. WS2812B flexible LED matrix-16x16 pixels.
2. It's very easy to add any letters while each individually control .

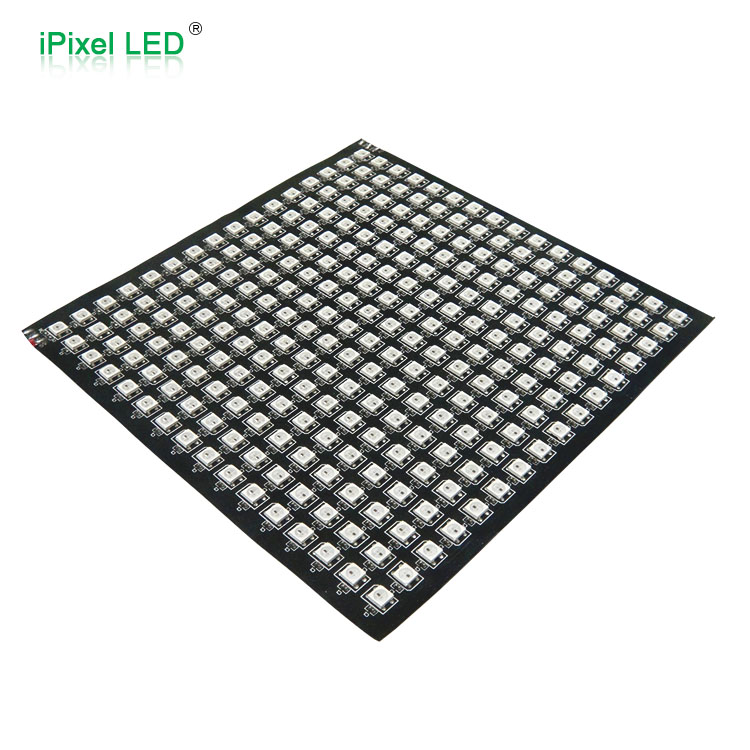

3. That’s 256 individually addressable LEDs on a 160mm x 160mm flexible panel.
4. You can set any animations.
5. These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 5A in most uses(15A required wen you set all LEDs in white color).

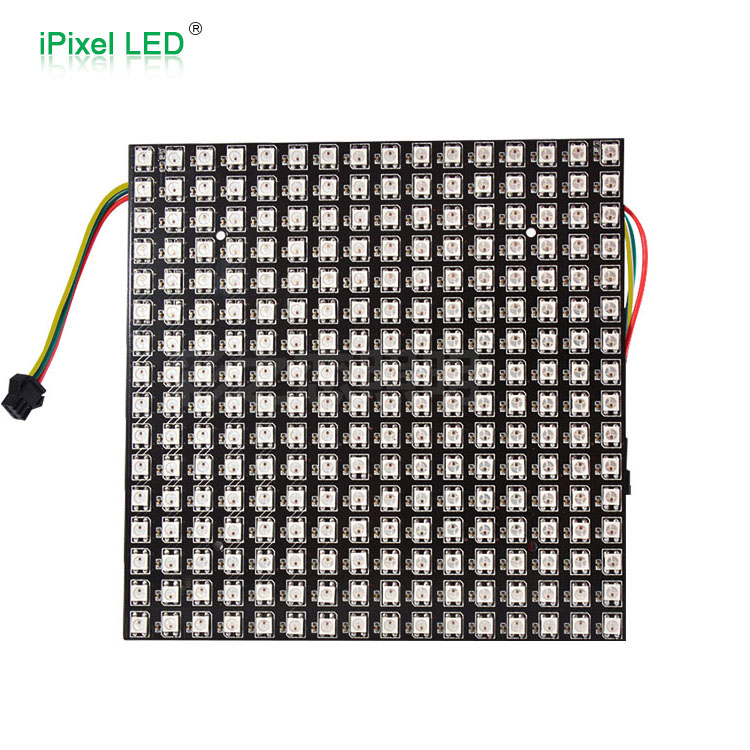

6. There are two 3-pin JST SM connectors and two pcs bare power cables.

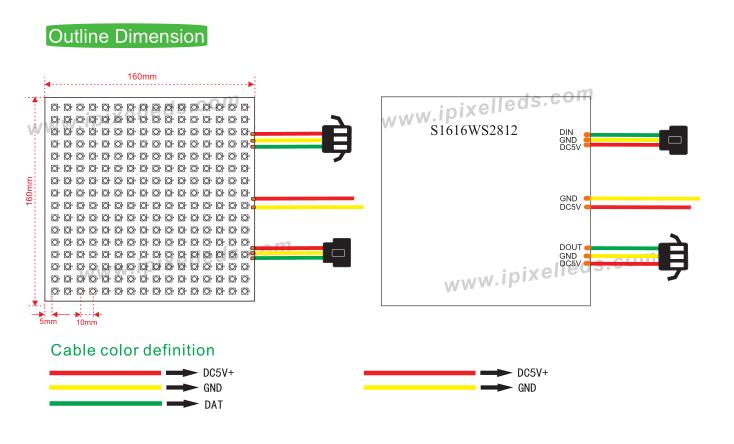

7. Red :DC5V+, Yellow:COM-, Green:DAT, and Yellow GND.
8. When the full panel set as white color , the whole PCB getting very hot even if.
9. We used 2 ounce Copper.
10. You must supply power to each panel when you links many pcs.
Note: pls pay attention to the matrix when you bending the flexible panel.

Connection:
