8*8 WS2812B LED Matrix

Application:

1. DIY electronic production.
2. Advertising.

3. Display.

4. Subtitles

Email: inquiry@ipixelleds.com

Share to

8*8 WS2812B LED Matrix

Product Parameter:

P/N	LED Qty/pcs	Size(mm)	Pixel	VCC	Power	IC	Lumen per pcs	IP
S0808WS2812	5050 RGB 64leds	L80*W80	64	DC5V	12.8W/pcs	WS2811	R:25600 G:44800 B:12160	IP20

Features:

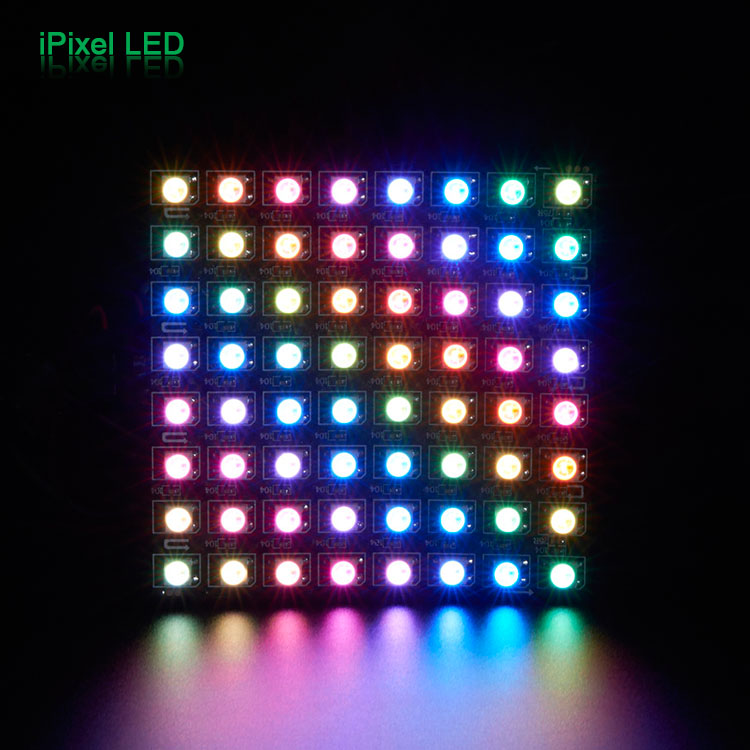

1. WS2812B flexible LED matrix-8x8 pixels
2. It's very easy to add any letters while each individually control .

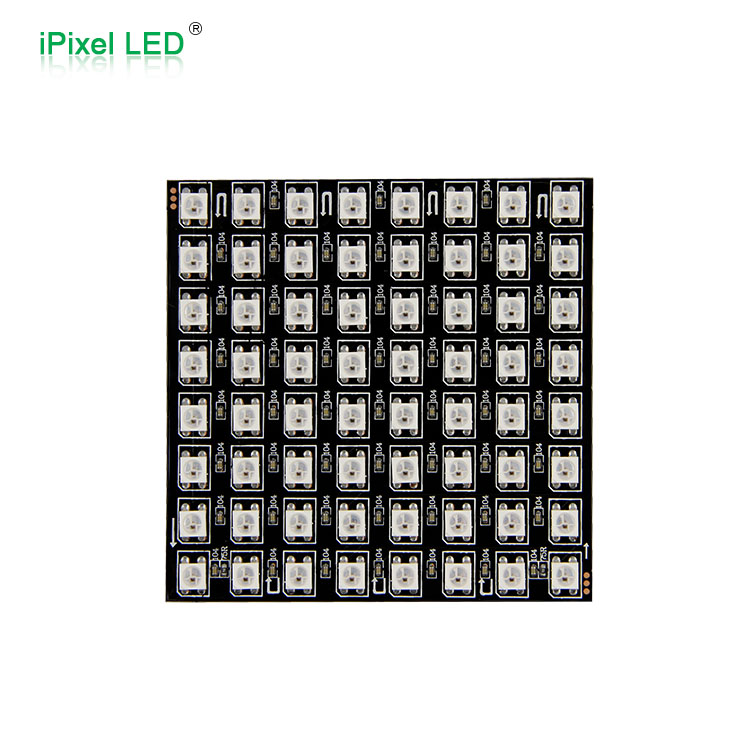

3. That’s 64 individually addressable LEDs on a 80mm x 80mm flexible panel.
4. You can set any animations
5. These panels require a 5V low voltage input for power which needs to be able to source a good amount of current – up to 4A in most uses (3.8A required wen you set all LEDs in white color).

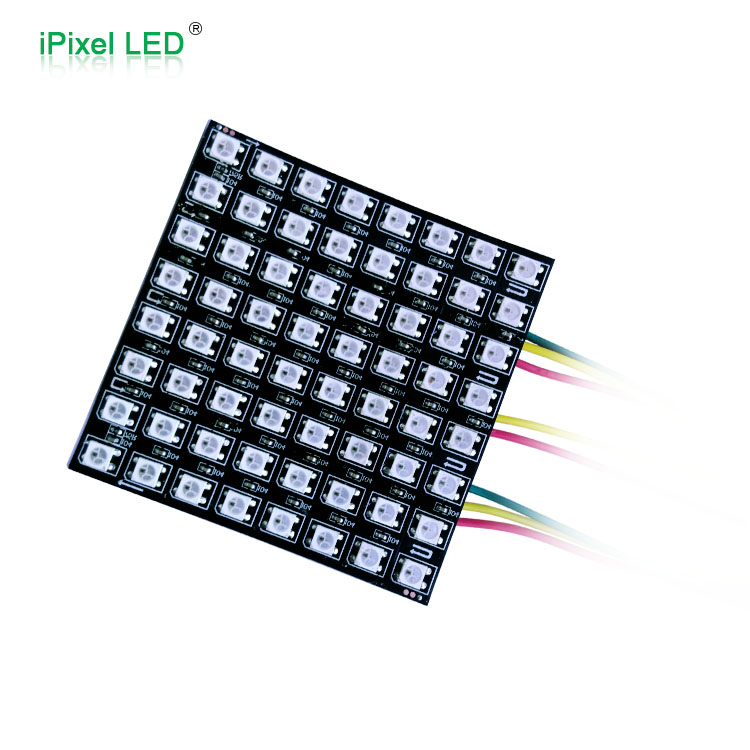

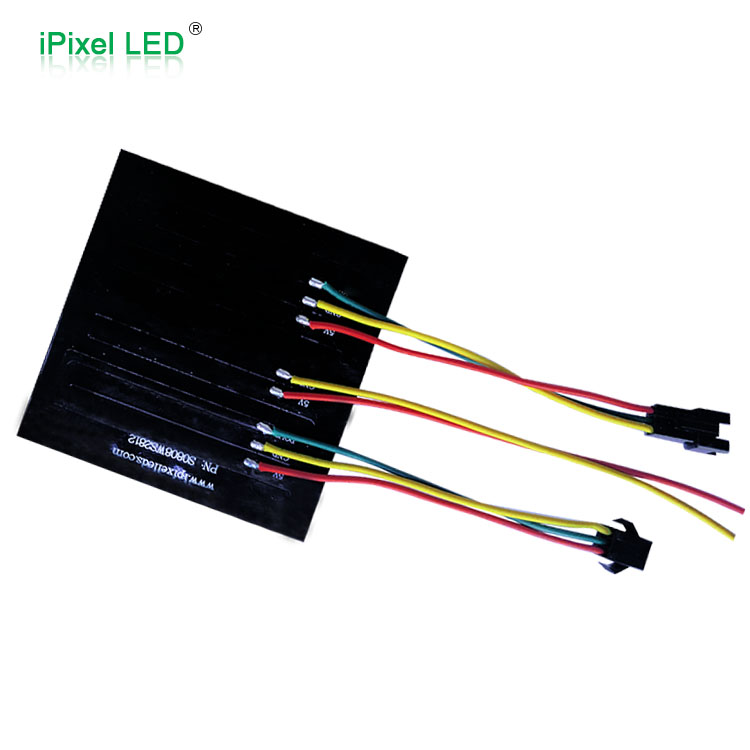

6. There are two 3-pin JST SM connectors and two pcs bare power cables

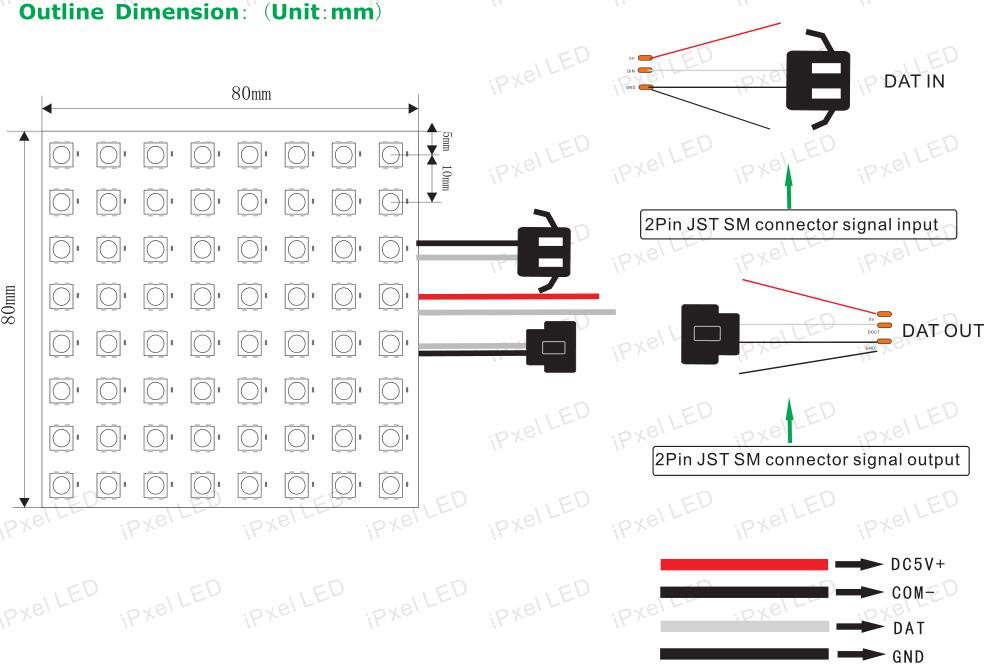

7. Red :DC5V+, Yellow:COM-, Green:DAT, and Yellow GND.
8. When the full panel set as white color , the whole PCB getting very hot even if
we used 1 ounce Copper.
9. You must supply power to each panel when you links many pcs

10. Note: please pay attention to the matrix when you bending the flexible panel.

Connection:
