DMX signal led panel display

Application:

1. DIY electronic production.
2. Advertising.

3. Display.

4. Subtitles

Email: inquiry@ipixelleds.com

Share to

Product Parameter:

P/N	LED Qty/pcs	Size(mm)	VCC	Power	IC	Product Matrial	IP
P-DMX-5025A	5050 RGB 72leds	L500*W250	DC24V	17W/pcs	DMX512	Rigid FR4	IP20

Features:

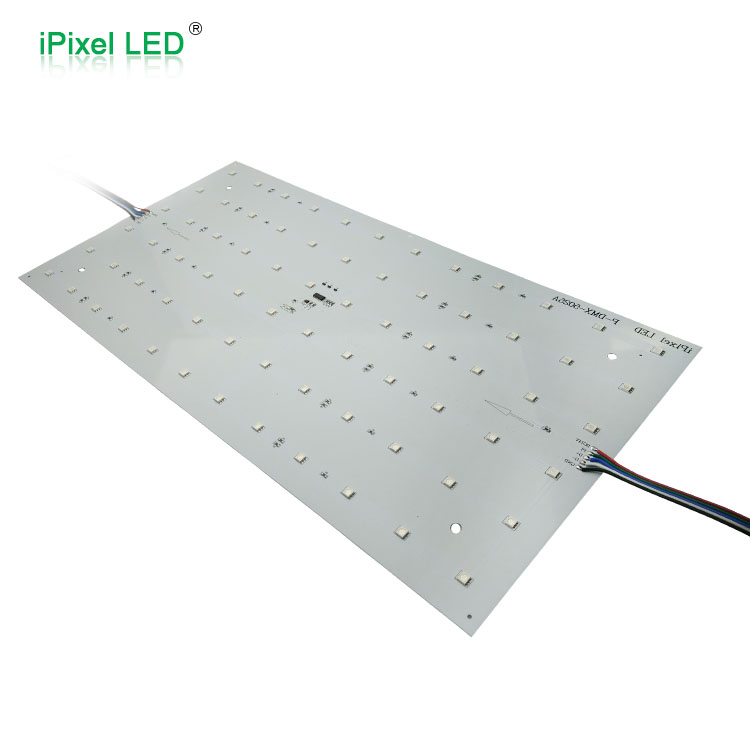

1. This is DMX signal led panel light.

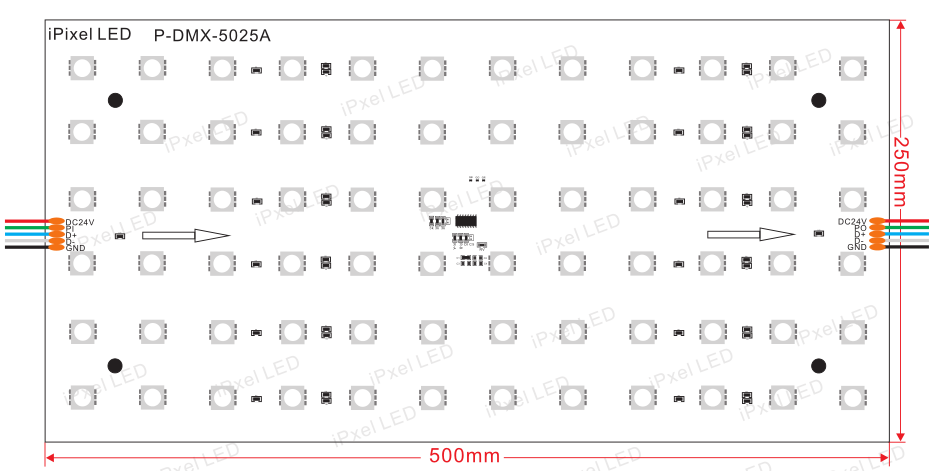

2. It with 500x250mm, you can combine 2pcs together for a 500x500mm led module

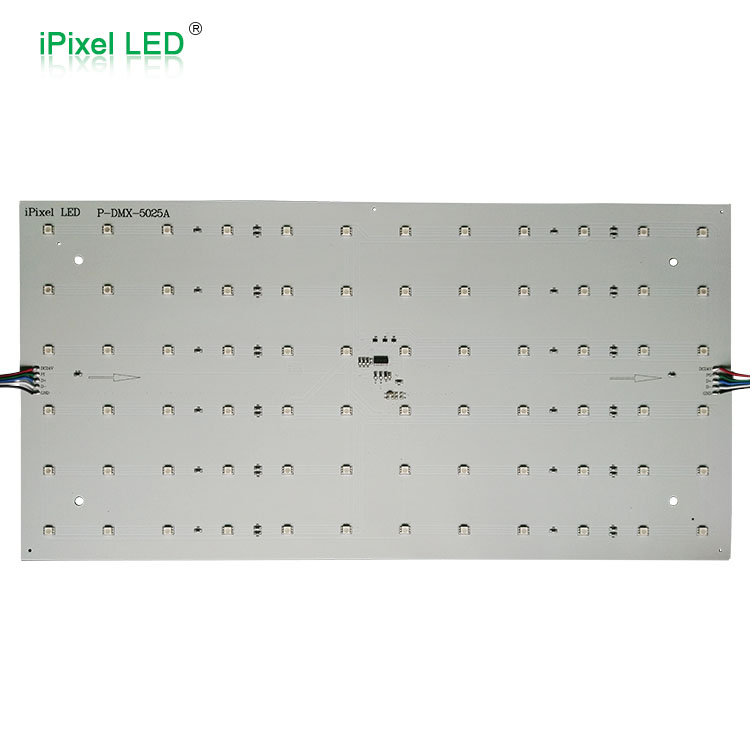

3. It's a very goods choice for dance floor, each panel with 1pcs DMX512 IC chip & 12x6pcs(72LEDs) 5050 LED chip
4. You can select it with IP20 non-waterproof or waterproof version, like PV glue
5. You can use DMX controller, like Artnet controller, Madrix software to control them directly
6. This panel with DC24V, you can give power per 8-10pcs.

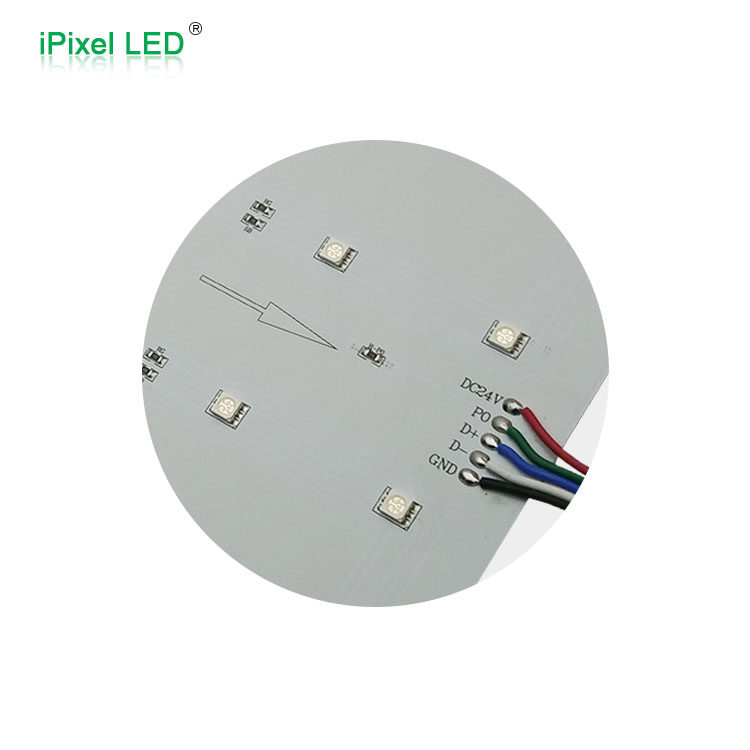

7. Use 5pin female and male connector, DC24V+, GND-, DAT+, DAT-, PI (PI: it's write address code)

Connection:

YouTube's Video
