RGB LED Ring (round) Light

Application:

1.DIY electronic production.

2.Advertising ,Display.
3.Dance floor decoration.
4.DJ background,DJ Table ,Stage floor etc.

Email: inquiry@ipixelleds.com

Share to

RGB LED Ring (round) Light

Product Parameter:

RGB LED Ring (round) Light
Product Number		LED QTY(pcs)		Outer diameter(mm)			Voltage(V/pcs)		Power(W/pcs)
M17260WS2812B		60 leds		172 mm			DC5V		18W
M15248WS2812B		48 leds		152 mm			DC5V		13W
M13240WS2812B		40 leds		132 mm			DC5V		11W
M11232WS2812B		32 leds		112 mm			DC5V		9W
M9224WS2812B		24 leds		92 mm			DC5V		7W
M7216WS2812B		16 leds		72 mm			DC5V		5W
M5212WS2812B		12 leds		52 mm			DC5V		3W
M3028WS2812B		8 leds		32 mm			DC5V		1W
M1201WS2812B		1 leds		12 mm			DC5V		0.18W
Light Source	Beam Angle		PCB Width		Operation Temperature	IC		Emitting Color		Waterproof
SMD 5050 RGB	140°		8mm		-20℃-60℃	WS2811		Full Color		IP20

Features:

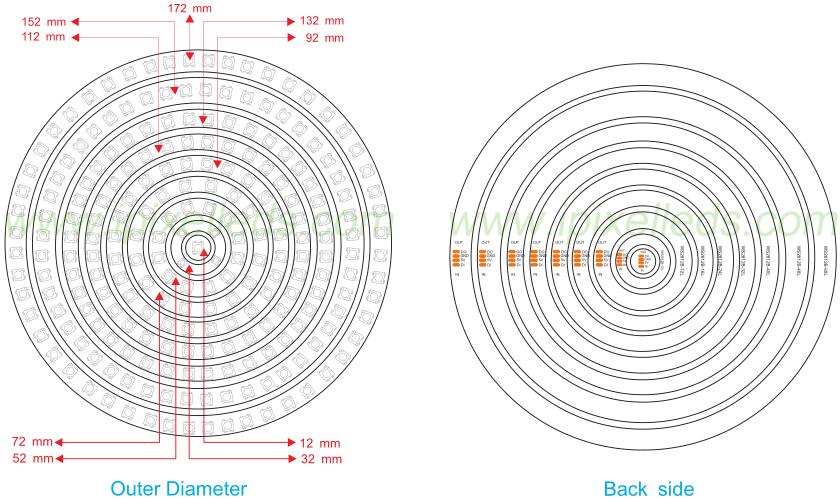

This amazing ring weld WS2812B LED chip,there are 9 different sizes.The outer diameters were divided into 12mm, 32mm, 52mm, 72mm, 92mm, 112mm,132mm,152mm, 172mm,PCB width just 8 mm,thickness is 1.6mm.There are 4 mounting holes on the PCB with 1mm diameter.Pixel pitch is about 5 mm.

Compare to Neopixel Ring from adafruit, it's has soldering pad on backside but just 4 Pin DC5V Data-in GND Data-out you can control it as easy as our other pixel by Micro controller like SD T1000s or Arduino.

Each Ring could take off from this round panel and work independently and we sell it by single ring in any size.

Connection:
