Application:
1. Night Club
2. KTV singing club
3. Dance floor
4. TV Show Back gound
5. Stage,Disco Club
6. Outdoor building,fridge
Addressable WS2812B LED Bar
Product Parameter:
P/N |
Light Source |
Beam Angle |
LED Qty |
IC |
Voltage |
Power(W/pcs) |
Luminous per/meter |
IP |
B6060V5 |
5050 RGB |
120 deg |
60leds/m |
WS2812b |
DC5V |
14.4W |
R24000/G42000/B1200(MCD) |
IP20/IP65 |

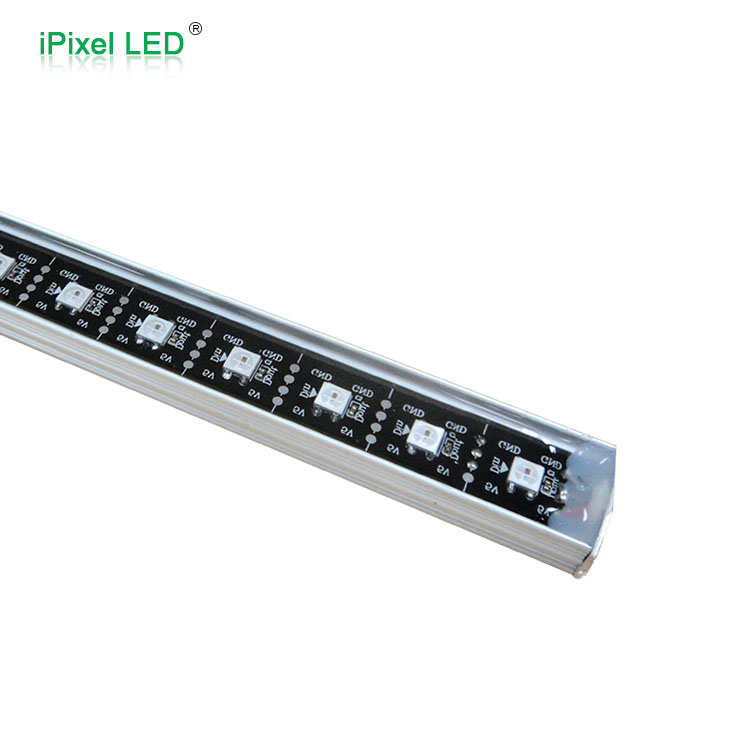

1.This item housing by Aluminum case,

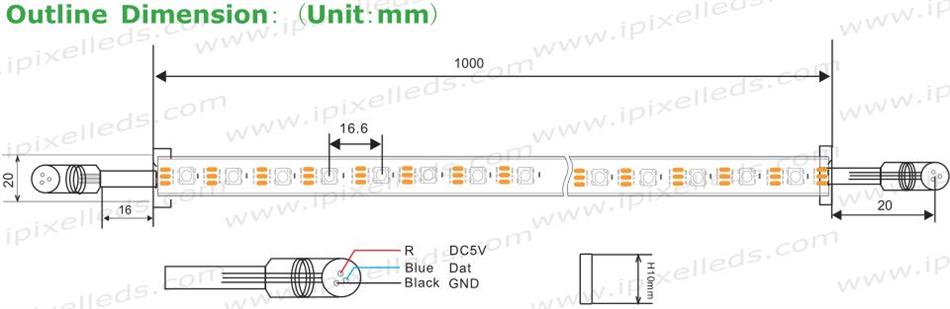

2.Standard size 100cm per pcs or any size (cut-able each LED),
3.Waterproof connector with 3Pin wire 22AWG ,wire length support customs,
4.Non-waterproof version we use the 3Pin JST SM connector replace the waterproof connector,
5.Protrol by SD controller or Arduino,DMX512,Artnet,
6.Rigid , 5V low voltage input,
7.PCB Color: White&Black,
8.Each pcs bar included 2pcs screw and 2pcs metal holder for installation,
9.Each 5 meters bar included 1 pcs T style connector.
