5730/5050 Injection LED Module

Application:

1. Backlighting for Advertisement.
2. Signboard and Billboard.
3. Backlighting for Lighting box Sign.
4. Decorative lights for holiday.
5. Event, show, and exhibition.

Email: inquiry@ipixelleds.com

Share to

5730/5050 Injection LED Module

Product Parameter:

P/N

VCC

Power

LED Qty/PCS

size(mm)

Beam Angle

CCT

Lumens/Module

IP Rate

M66503

DC12V

1.5W/pcs

(5050/5730) 3leds

L66*W16

140 deg

W:6000——6500K

CW:7000——12000K

WW:2800-3200K

150

IP65

Features:

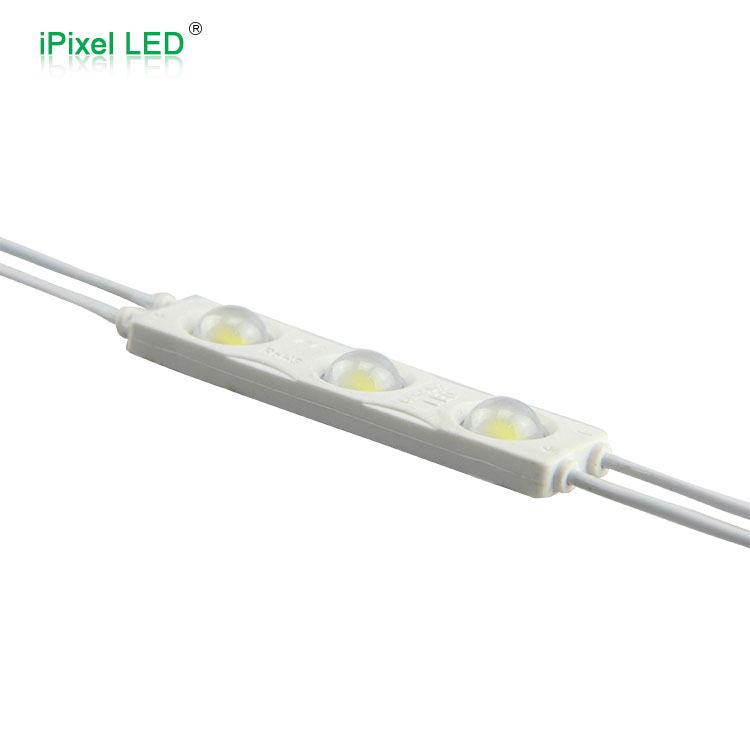

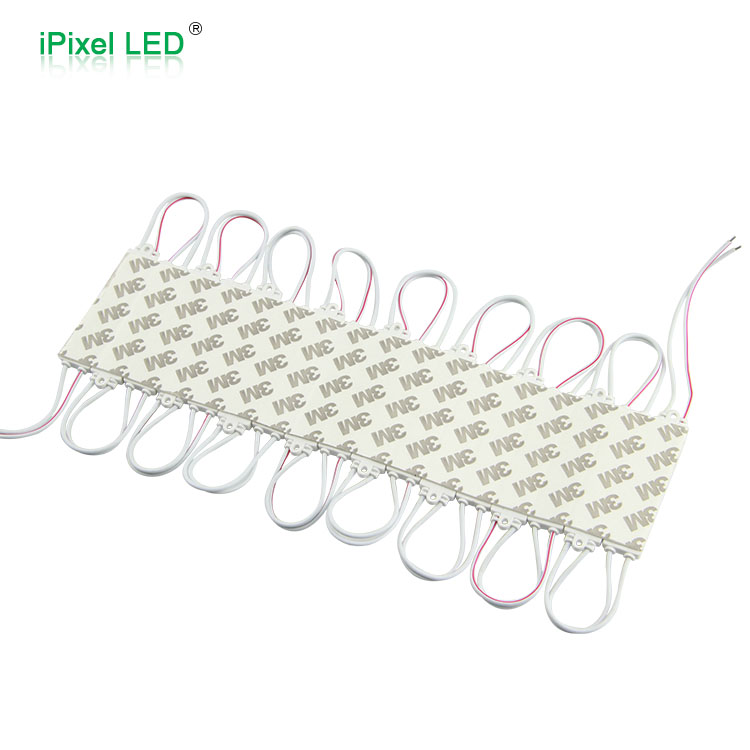

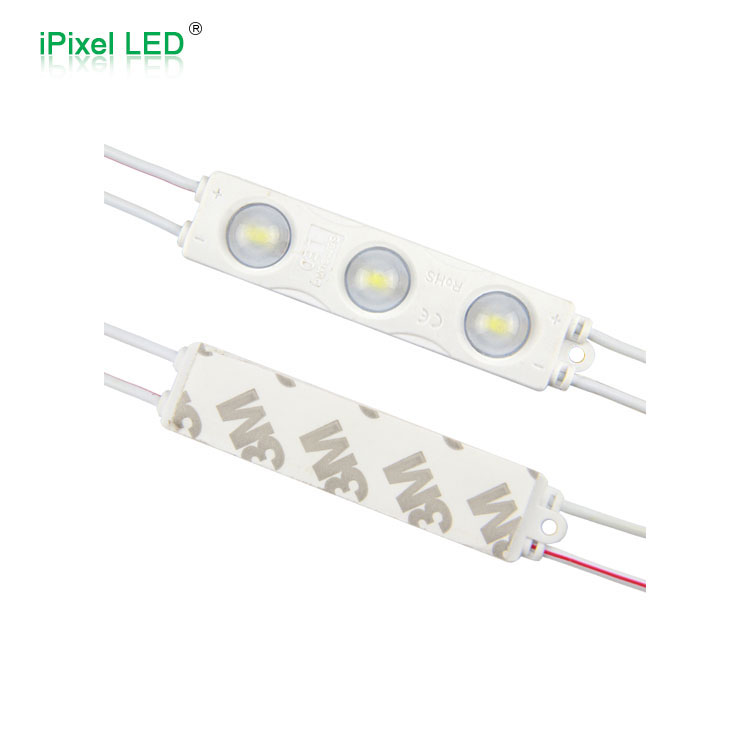

This module is powered by Epistar 5050 SMD LED chip ,d esigned to produce high luminous efficacy. Built with overmolded housing and aluminum PCB, There is a optic lens on top of each LED it’s cut-able of individual module, while double-sided 3M adhesive tape attached on the back of modules allows for easy installation.

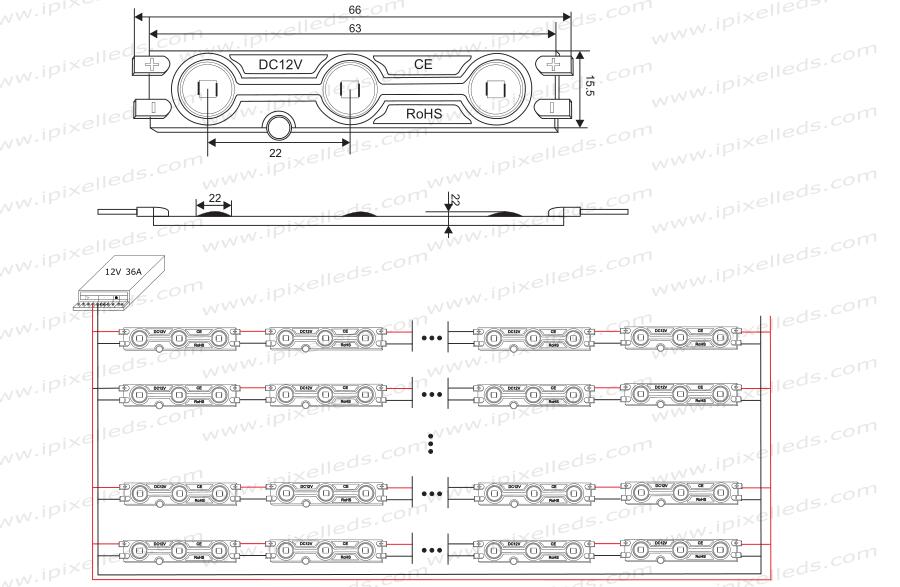

Connection:
