WS2801 Rectangle LED Module

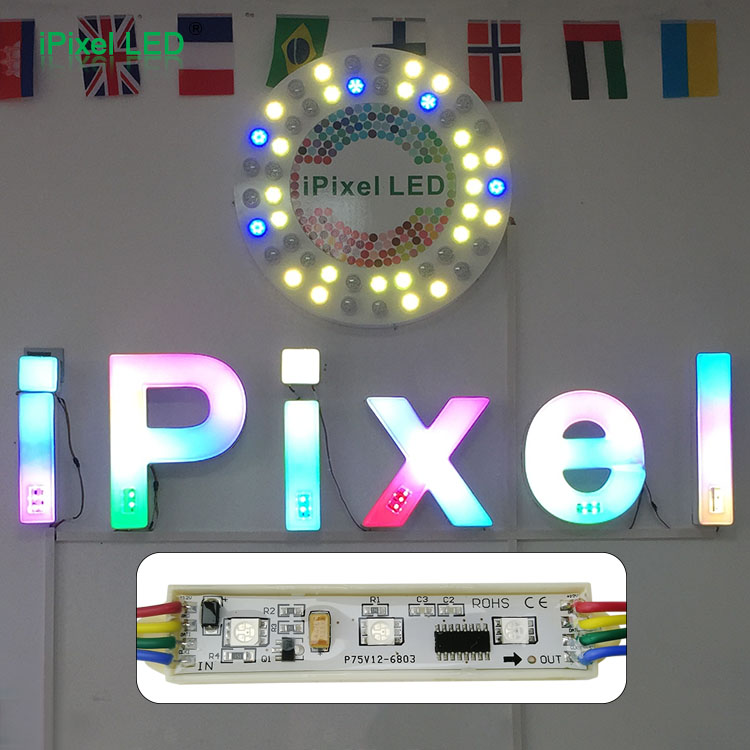

Application:

1. Backlighting for Advertisement.
2. Signboard and Billboard.
3. Backlighting for Lighting box Sign.
4. Decorative lights for holiday.
5. Event, show, and exhibition.

Email: inquiry@ipixelleds.com

Share to

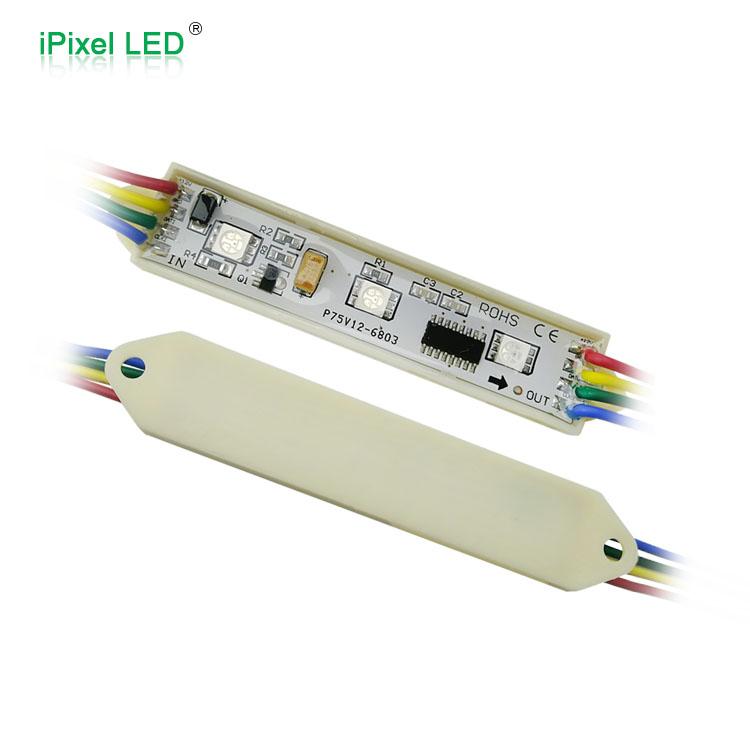

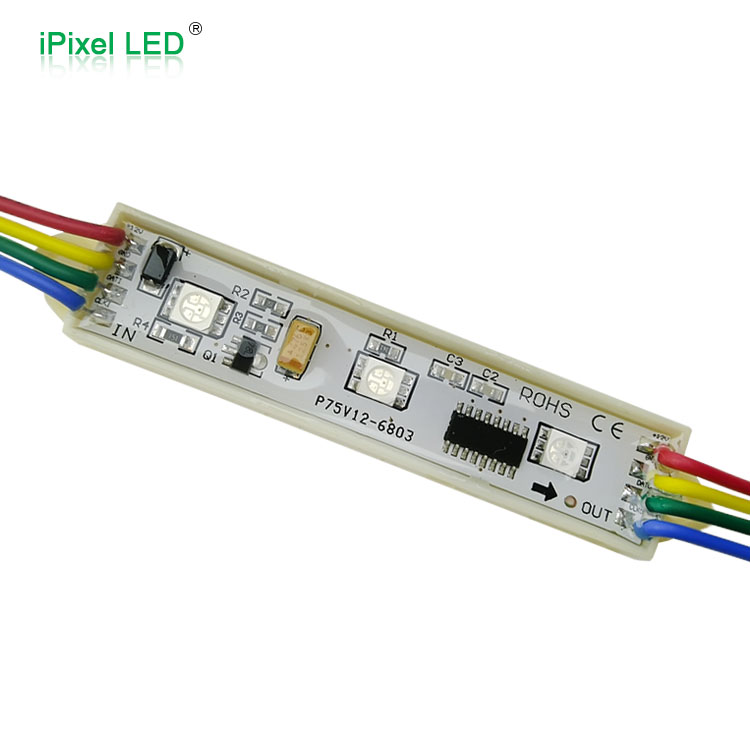

WS2801 Rectangle LED Module

Product Parameter:

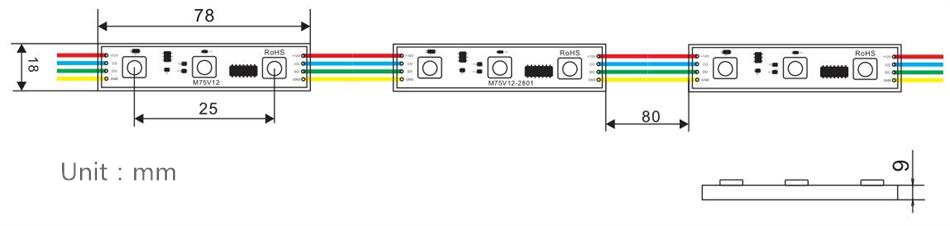

P/N	VCC	Power	LED Qty	size(mm)	Beam Angle	IC	Lumen per LED	IP Rate
M75V12	DC12V	0.72W/pcs	RGB 5050 3leds	L75*W15	120 deg	WS2801/LPD6803	R15/G30/B12 lm	IP65

Features:
1. Control IC included, supporting numerous color-change effects.
2. Control by SD controller,Arduino,DMX512,Artnet.
3. PCB white color, 12V low voltage input.
4. Every 1 Leds linear separable, custom-length available.
5. Eco-green light, no UV, IR.
6. Extremely long lifespan & lower power consumption;
7. PVC 'pixel ' contains 3 RGB LEDs and a controller chip soldered to a PCB.
8. The pixel is 'flooded' with epoxy to make it waterproof.
9. There are two plastic flanges on each side for screw installation.

Connection:

YouTube's Video
