WS2801 Square LED Module

Application:

1. Backlighting for Advertisement.
2. Signboard and Billboard.
3. Backlighting for Lighting box Sign.
4. Decorative lights for holiday.
5. Event, show, and exhibition.

Email: inquiry@ipixelleds.com

Share to

WS2801 Square LED Module

Product Parameter:

P/N	VCC	Power	LED Qty/pcs	Housing Body	IC	Lumen per Module	IP
M-35502801	DC12V	0.96W/pcs	5050 RGB 4leds	Metal case	WS2801	R20/G40/B17 lm	IP65

Features:
1.Control IC included, supporting numerous color-change effects.
2.Pcontrol by SD controller,Arduino,DMX512,Artnet.
3.Flexible PCB white color, 5V low voltage input.
4.Every 1 Leds linear separable, custom-length available.
5.Eco-green light, no UV, IR.
6.Extremely long lifespan & lower power consumption.

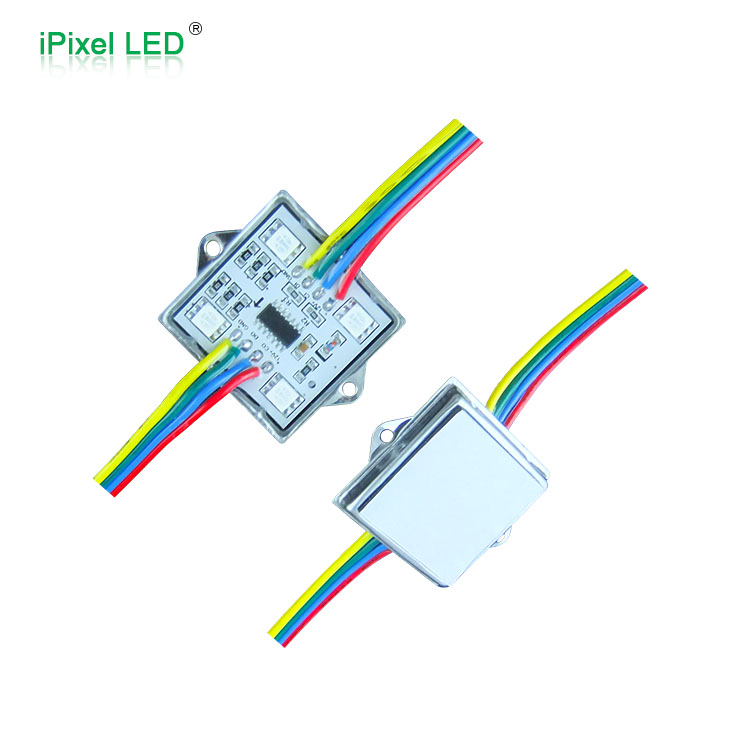

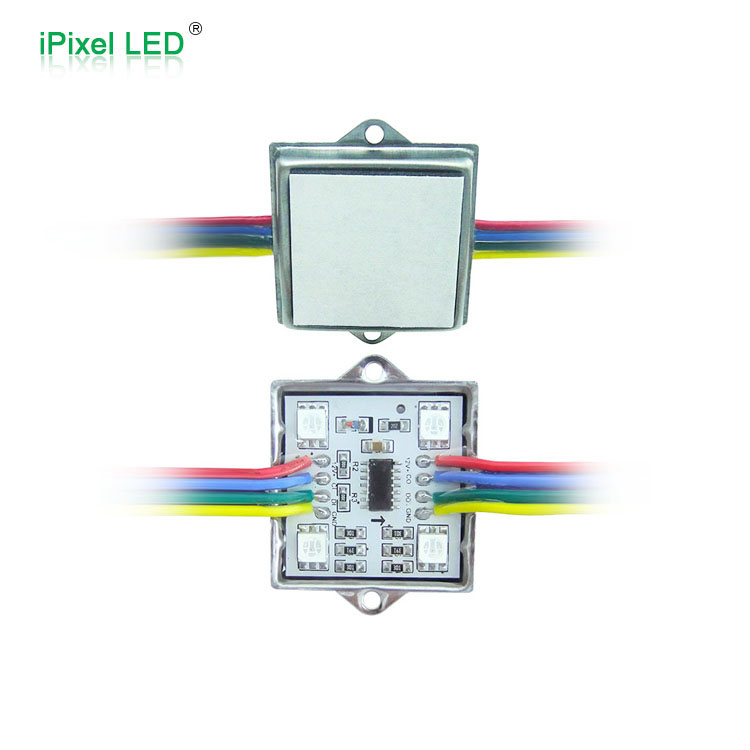

7.Iron case 'pixel ' contains 4 RGB LEDs and a controller chip soldered to a PCB.
8.The pixel is 'flooded' with epoxy to make it waterproof.
9.There are two ears with hole on each side for screw installation.

Connection:
