Application:
1. Backlighting for Advertisement.
2. Signboard and Billboard.
3. Backlighting for Lighting box Sign.
4. Decorative lights for holiday.
5. Event, show, and exhibition.

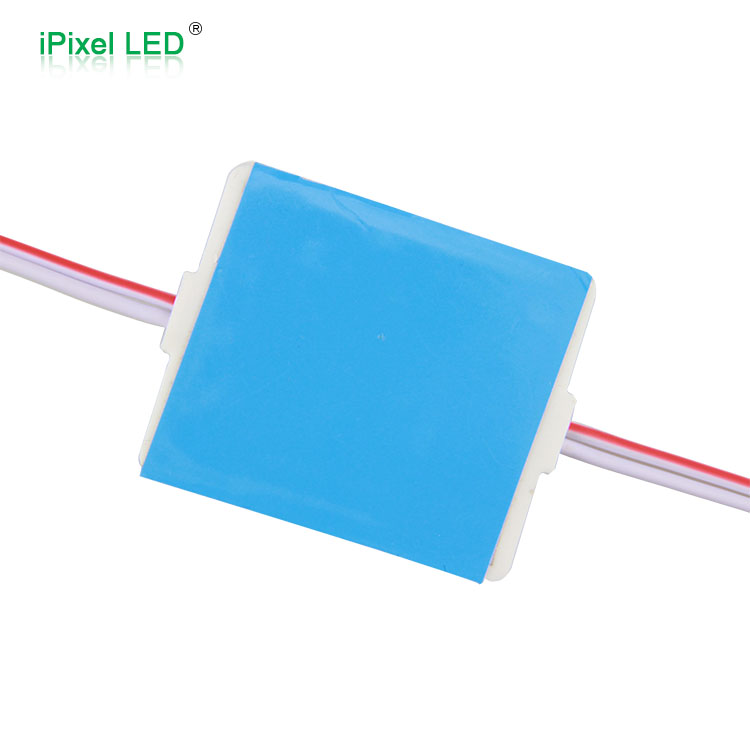

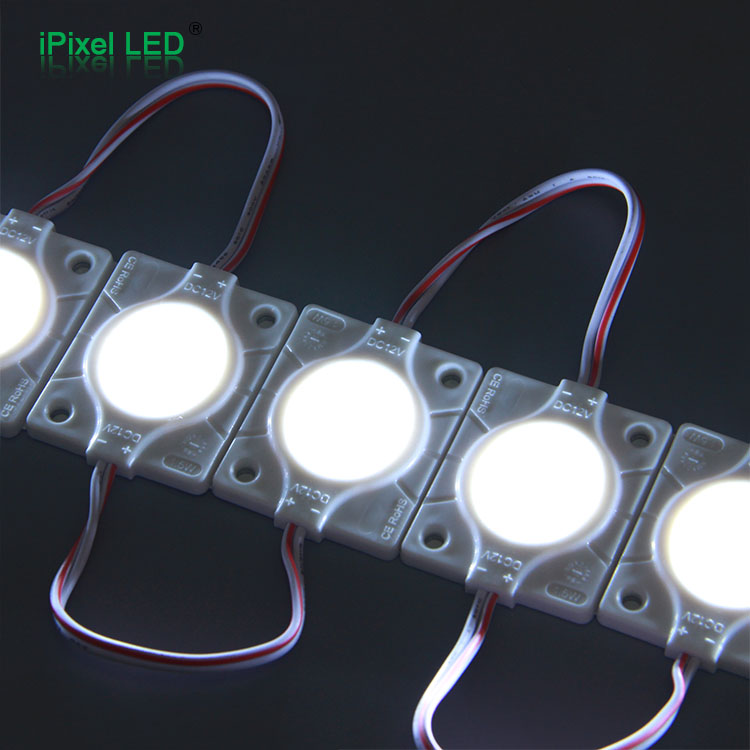

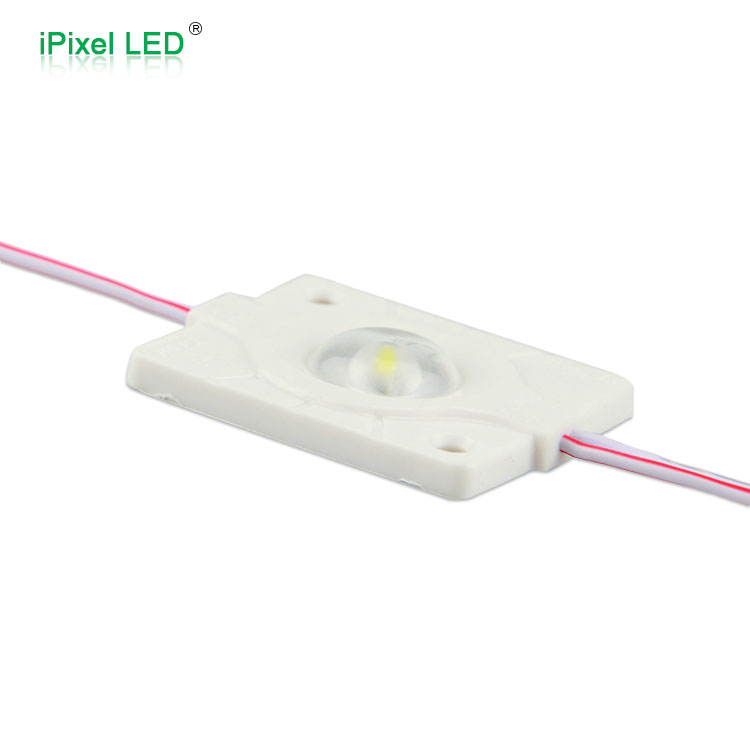

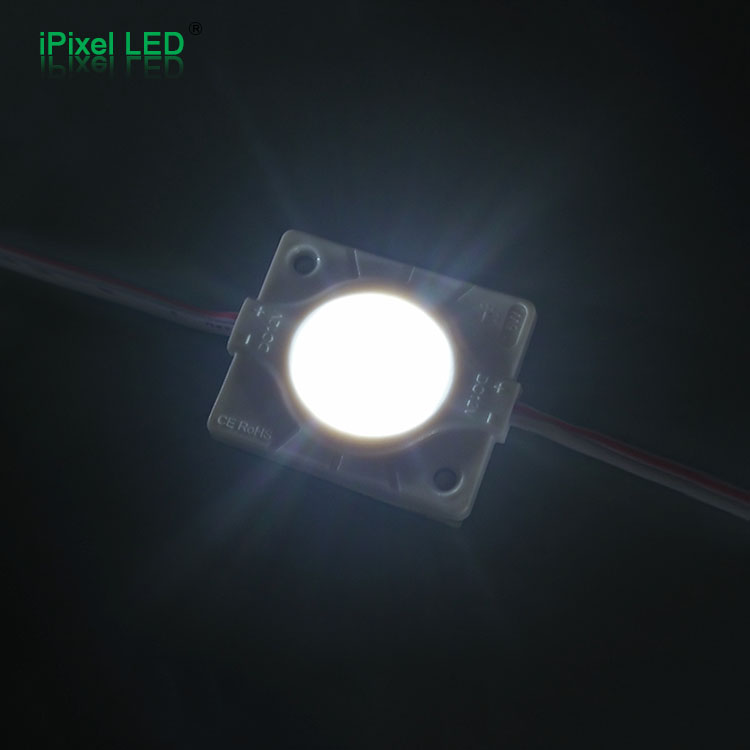

2835 Injection LED Module
Poduct Parameter:
|
P/N |
Size |
CCT |
Emitting Color |
LM |
View angle |
VCC |
Power |
Module/string |
IP |
|
M35201 |
L43*W36 |
12000-14000K |
Cool White |
75lm |
160º |
DC12V |
1.0W/pcs |
20pcs |
IP20 |
Features:
1. This module is powered by Osram SMD LED 2835 chip, designed to produce high luminous efficacy.
2. Built with overmolded housing and aluminum PCB.
3. There is a optic lens on top of each LED it’s cut-able of individual module.
while double-sided 3M adhesive tape attached on the back of modules allows for easy installation.
4. Constant Current drive.
