Application:
1. Backlighting for Advertisement.
2. Signboard and Billboard.
3. Backlighting for Lighting box Sign.
4. Decorative lights for holiday.
5. Event, show, and exhibition.
|
P/N |
Voltage |
Power |
LED Qty/pcs |
Luminance(MCD) |
Size(mm) |
IP |
Warranty |
|
M7550RGB |
DC12V |
0.72w/pcs |
5050 RGB 3leds |
R:700 G:1700 B:800 |

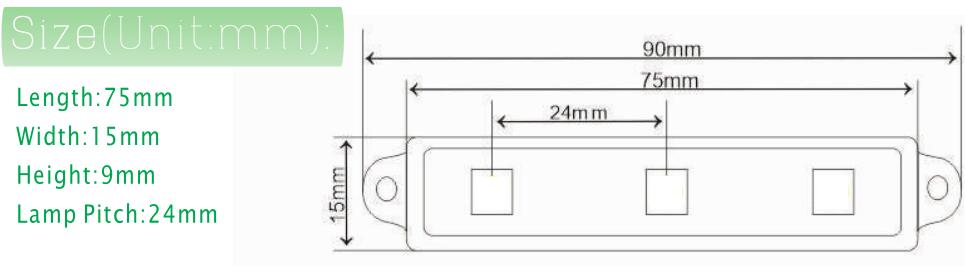

L75*W15*9 |
IP66 |
2 Years |

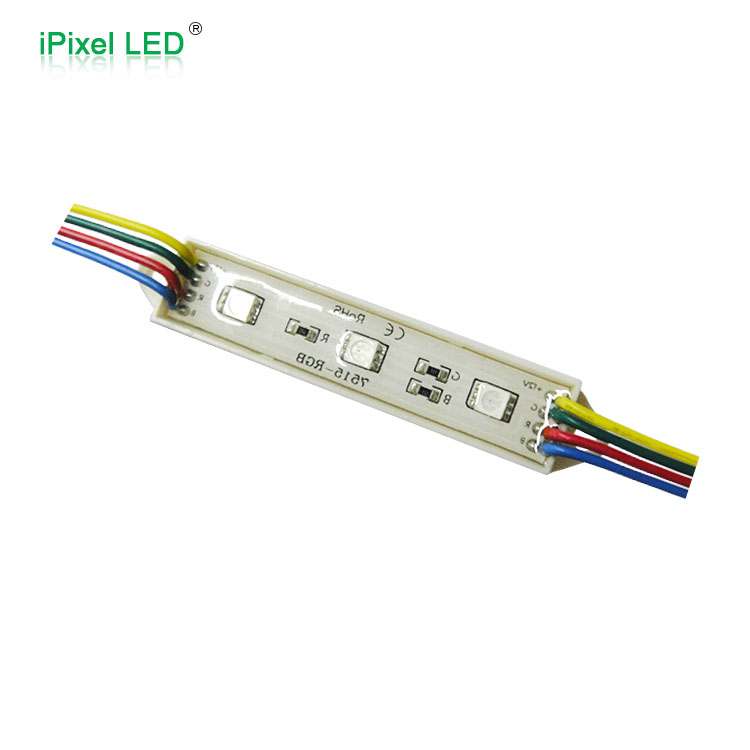

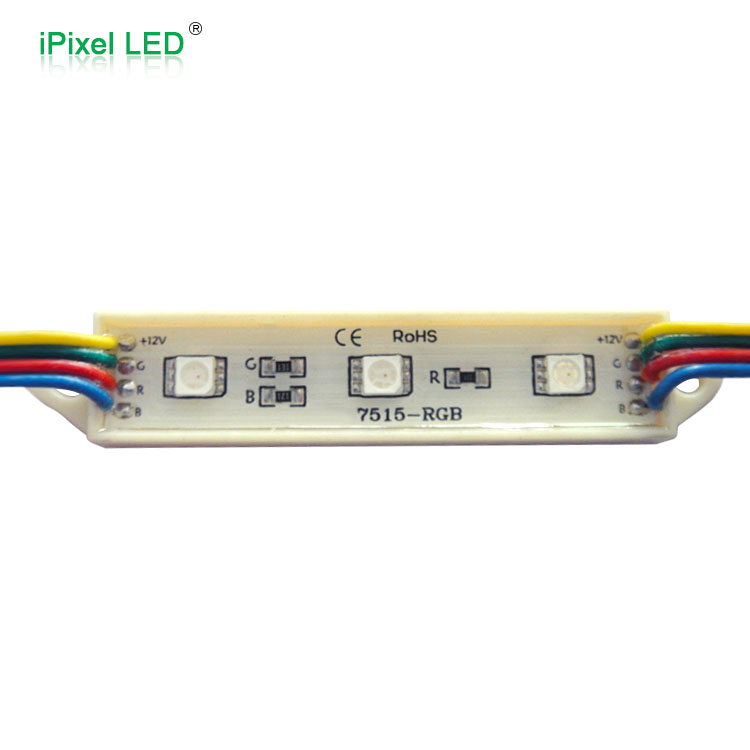

1.This is a new version injection module powered by high brightness Samsung LED chip.
2. fiber PCB with1.0mm thickness.
3.There are 20pcs in a string ,wire distance.
4.Each module taped 3M adhesive tape on back side of.
5.waterproof IP66 by glue between each module is 8cm,20AWG copper wire.
6.Widely Used in Channel letter signage Lighting.
