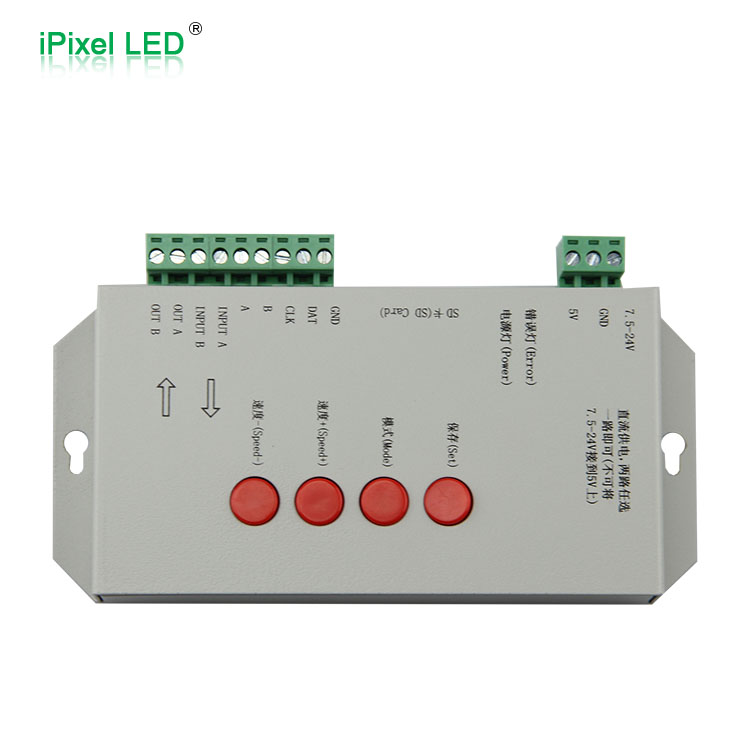

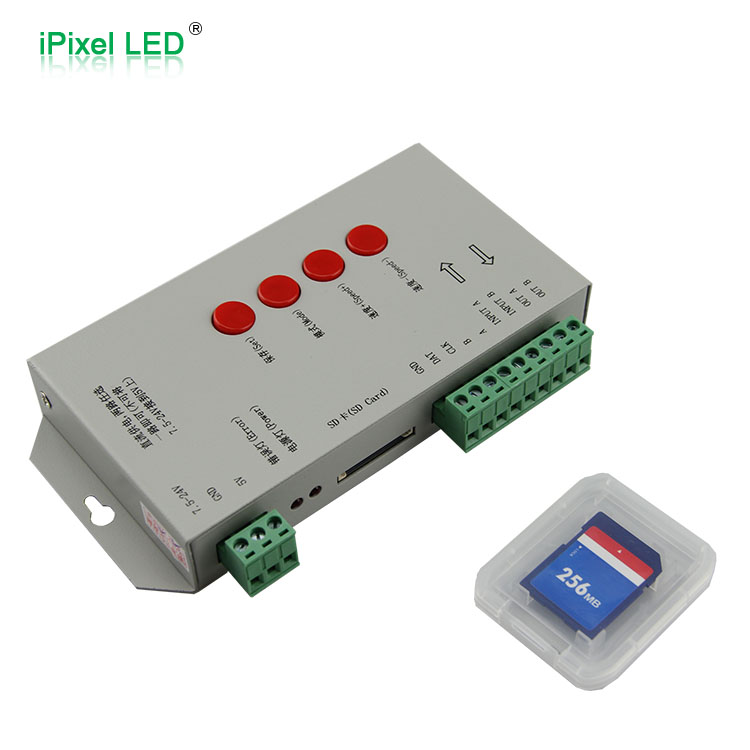

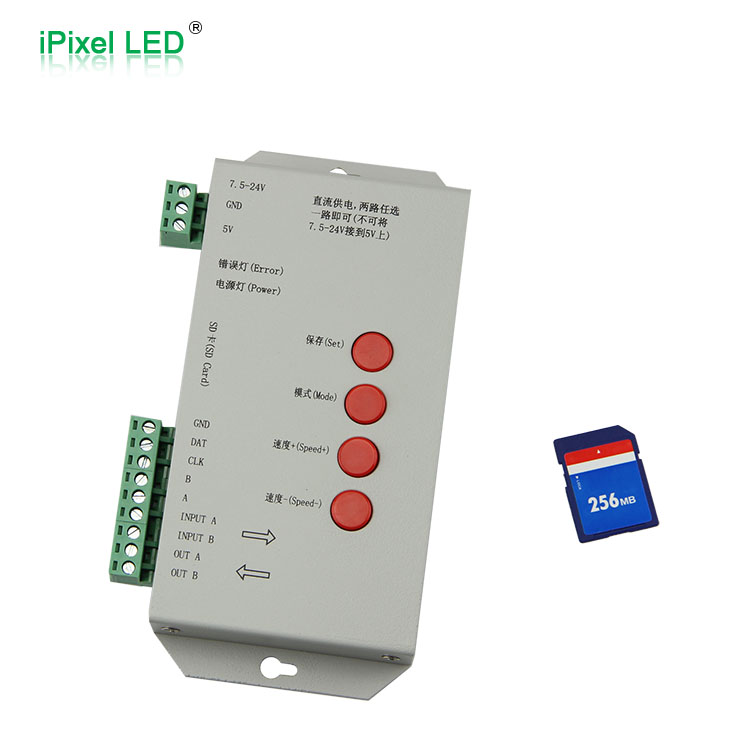

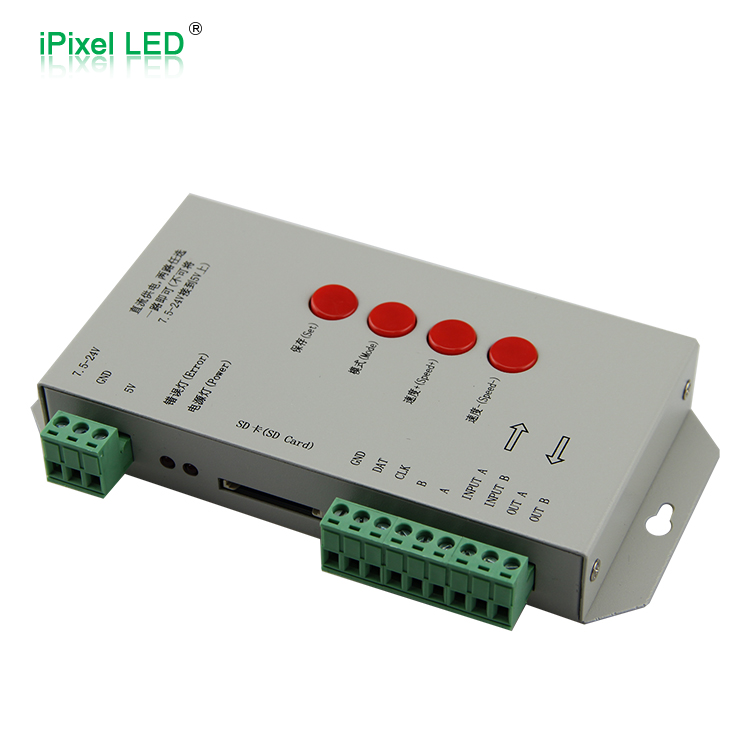

T-1000S

Application:

1. Full color LED dmx tube.
2. LED pixel light,led pixel module.
3. LED strip,led light bar.

4.Outdoor Lighting Engineering.

Share to

T-4000C Parameters：

Support Chips	LedEdit software that models	Single load number of lamp	Notes
LPD6803,D705,1101, UCS6909,UCS691	T-1000-6803	2048 pixels
LPD8806, LPD8809	T-1000-8806	2048 pixels
TM1803,TM1804,TM1809, TM1812,UCS1903	T-1000-TM	2048 pixels	TM1804 and TM1809 of high speed
Standard DMX,HX512	T-1000-DMX	170/512 Pixel	Compatible with standard DMX512 Protocol
WS2801,WS2803,WS2811	T-1000-WS	2048 pixels
TLS3001,TLS3002, TLS3005,TLS3008	T-1000-TLS	2048 pixels
P9813	T-1000-P981	2048 pixels
SM16715	T-1000-SM16715	2048 pixels
SM16716	T-1000-SM16716	2048 pixels
BS0815,BS0825,BS0901	T-1000-0815	2048 pixels

LED pixel light controller -2048 pixel features:

1. 32—256 Gray，Gamma correction procession software.

2. Support the rules and special-shaped handle.

3. Single-port output，can support 1024/2048 lights.

4. Off-line control, play back content stored in the SD card.

5. T-1000C store a maximum of 16 documents，copy multiple files to the SD card in order.

Note: 1.T-1000C-port 512 lights, the playback speed of up to 30 frames / sec, the port more than 512 lights, the frame rate with the increase in the number of lights automatically reduced. 2. Display files naming: when placing one file, copy the software-generated display file to the formatted SD card, when placing multiple files should be named as “00led”,”01led”,”02led”…(00means the first display file, 01means the second, and so on).
