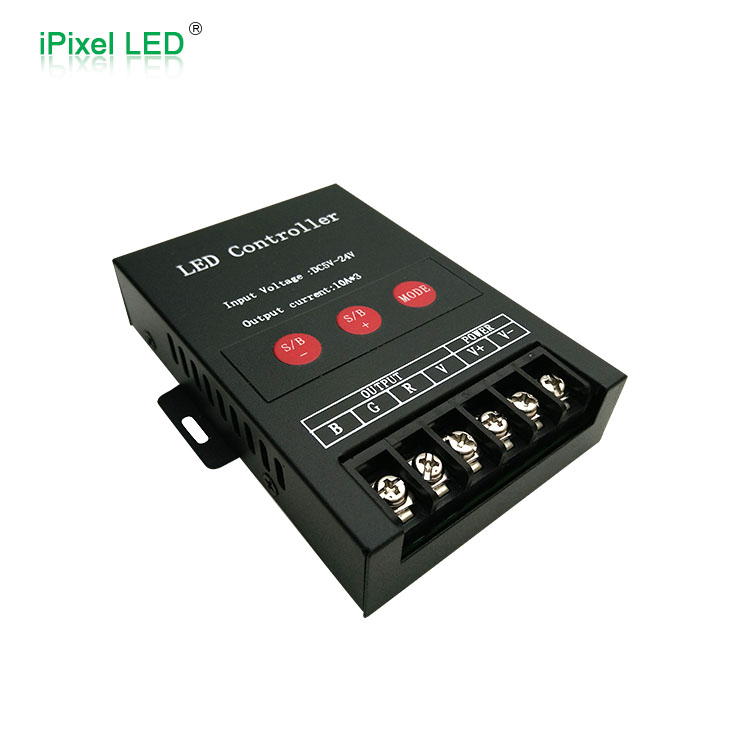

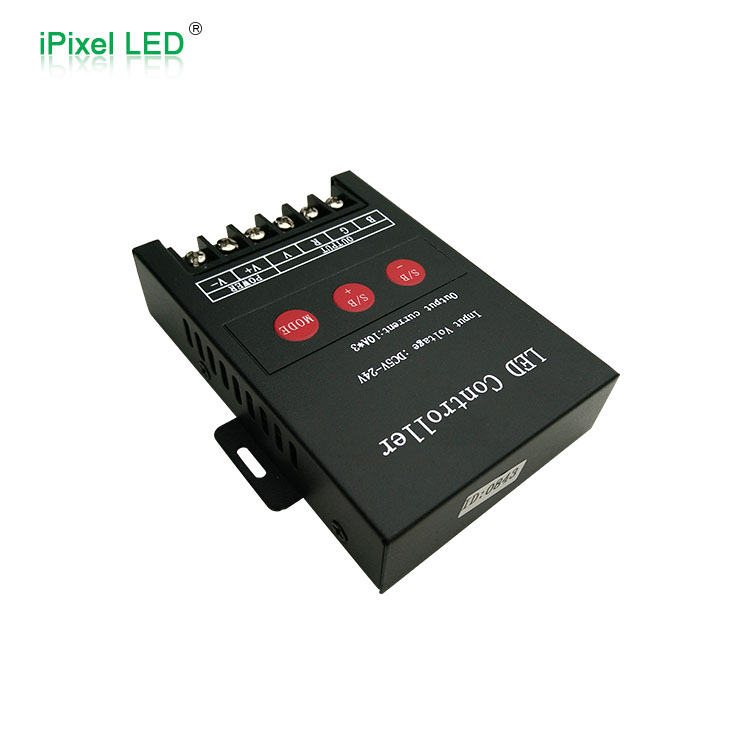

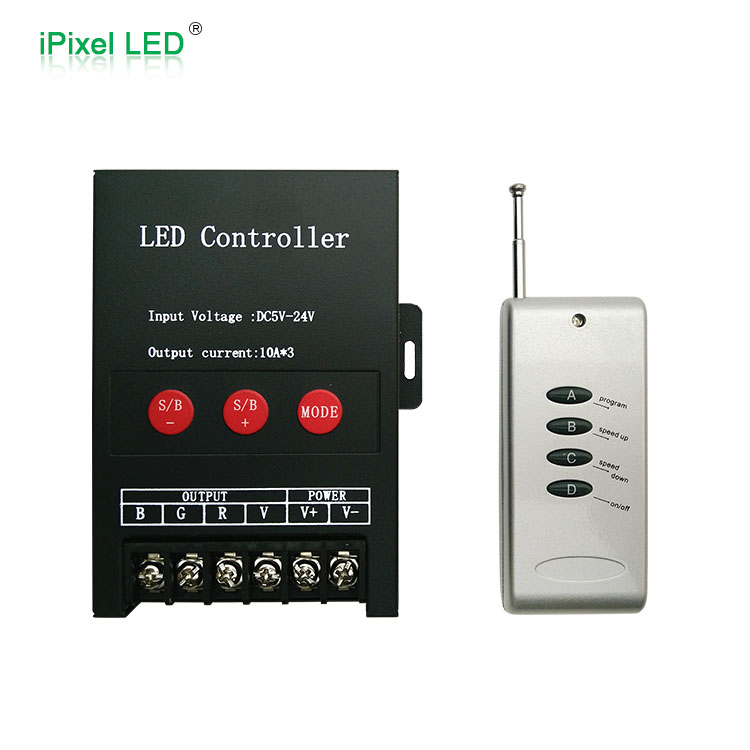

Main RGB Controller Parameters：
| Product number |
C-MRGB30A |
| Input Voltage |
DC5--24V |
| Output power |
360W |
|
control Method |
remote control |
| Output current |
≤10A(each channel) |
|
Product Size |
110*90*25mm |
|
Connecting mode |
common anode |
2.According to mode key to choose the different changing mode every time,when the key is pressed,the effects is changed,functional changes have been listed as follows:
3.Press speed key can change every effect's speed changing progression,"S/B" add one when you press the button every time,but "S/B-" will subtract one,totally 10 progressions to change the speed.
4.Standard functional changes have been listed as follows:
Mode
Mode
1
Static
Brightness adjustable
9
Seven color jumpy changing
Speed is adjustable
2
Static green
Brightness adjustable
10
Three color gradual changing
Speed is adjustable
3
Static Blue
Brightness adjustable
11
Seven color jumpy changing
Speed is adjustable
4
Static red and green
Brightness adjustable
12
RGB quickly change
Speed is adjustable
5
Static red and blue
Brightness adjustable
13
Mode 9 and mode 11
Speed is adjustable
6
Static green and blue
Brightness adjustable
14
RGB gradual changing at the same
Speed is adjustable
7
Static red and green and blue
Brightness adjustable
15
RGB changing like running water
Speed is adjustable
8
Three color jumpy changing
Speed is adjustable
