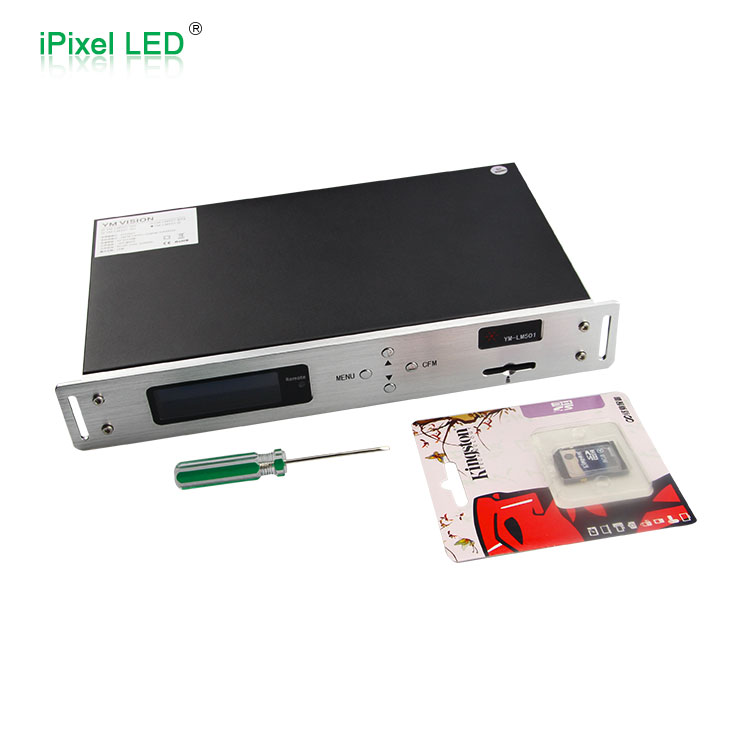

YM-LM501 Parameters：
|
Size
|
260*154*45mm
|
The output data signal
|
TTL
|
|
Weight
|
1085g
|
Storage Interface
|
SD card
|
|
Color
|
Gray
|
Gray levels
|
65536
|
|
Power Supply
|
AC220V 50Hz
|
Operating Temperature
|
-30~70℃
|
|
Power Consumption
|
Maximum 10W
|
Ambient temperature
|
-30~70℃
|
|
Output control port
|
4 port
|
Supporting software
|
LED control software
|
|
Maximum control pixels
|
4*512 Pixel
|
ControllableIC
|
|
Single line：TM1804、TM1829、UCS1903、TLS3001、TLS3008、、、
|
|
Two lines：DMX512、P9813、LPD6803、LPD8806、SM16716、WS2801、MBI6021、MBI6024、MY9221、、、
|
Product Features：
1. Control: Control online /
offline control;
2. IP address settings: with LCD
display, no DIP switch design, all IP and MAC is set to be completed by the
key;
3. Controller with SD card
memory, used to store data for offline playback;
4. Using Fast Ethernet, TCP /
IP communication protocol, host connectivity LED controller via standard network
cable;
5. Each controller has four
output ports, a single port output control 512 pixels;
6. The master controller, on-line
can be cascaded to 16 sub-controller, 31 units can be cascaded off of
control;
7. Playback speed: maximum speed
of 25 frames / sec;
8. Grayscale settings: Customers
can never light gray under the circumstances to 65,536 (64K) adjust the gray,
LED lights let you achieve the best display effect;
9. Brightness adjustment: 100
automatic brightness adjustment function allows you to adjust the display
brightness is more effective;
10. Power Supply:
AC100-230V;
11. EMC EMC design, with good
anti-jamming capability;

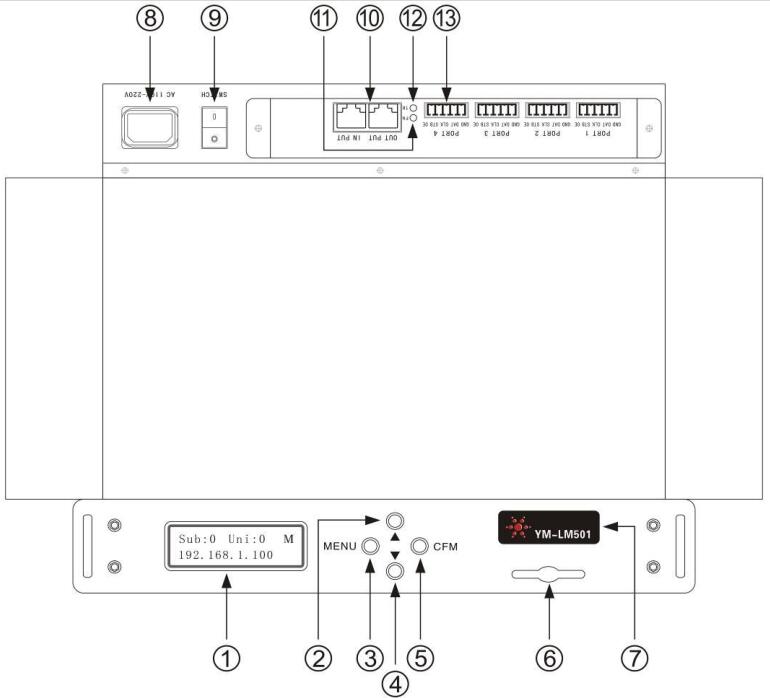

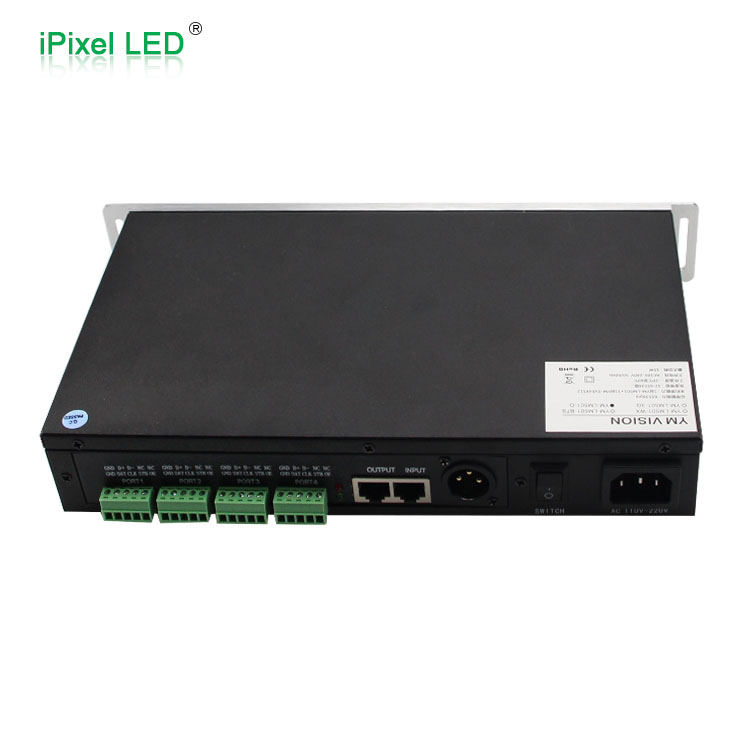

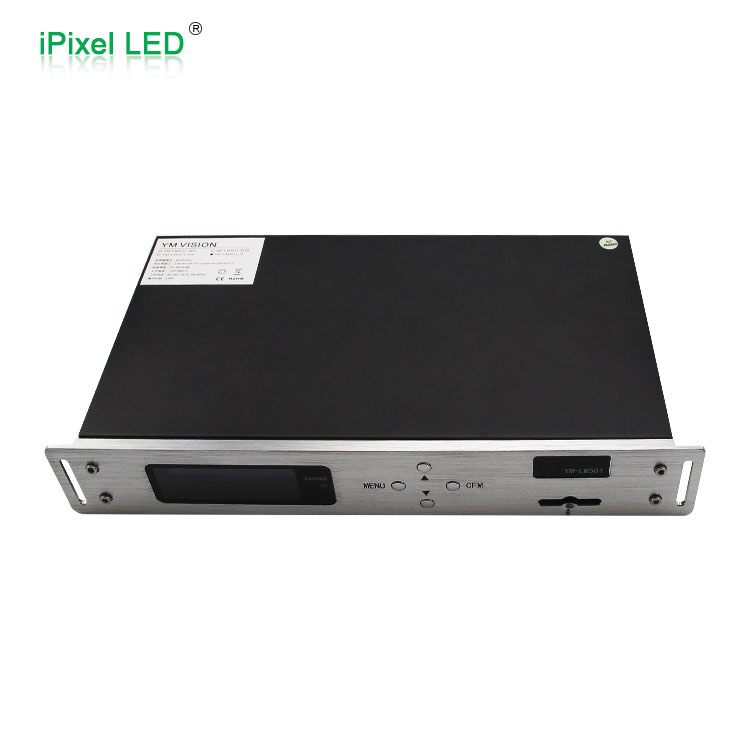

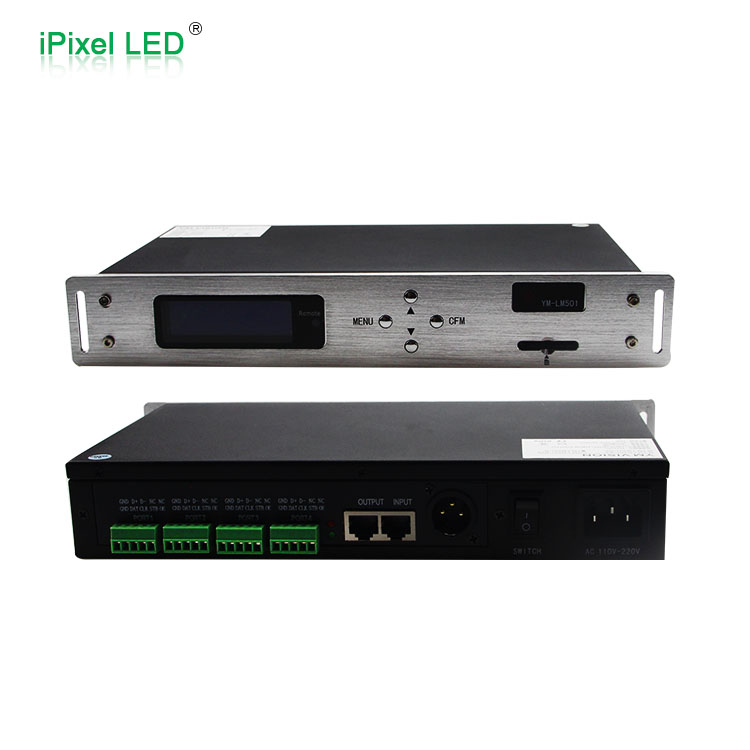

LM501 Key Description：
①：LCD Display
②：▲Increase the key: In the modified state (bottom left of the screen displays "+ -" sign) up cycle adjustment data value, otherwise the cycle selection menu with other levels;
③：MENU - Function keys: to enter or exit the menu settings;
④：▼- Reduce the key: In the modified state (bottom left of the screen displays "+ -" sign) down MENU cycle adjustment data value, otherwise choose another menu with circulating levels;
⑤：CFM - OK button: Select the menu item or data value is determined;
⑥：SD card reader；
⑦：Flag models;
⑧：Power supply AC100-220V;
⑨：Power switch;
⑩：Cable input / output ports；
⑪：FH red light;：TR green indicator light;
⑫：A signal output port, Switching languages
Chinese: In the main interface, press ▼ button for three seconds or more;
English: In the main interface, press ▲ button for three seconds or more. ,
⑬：LCD screen displays: After power-up, the controller enters normal working condition. LCD displays the main screen. Screen displays the IP address, host (M), MADRIX use to set Subnet and Universe .
