DMX512 LED Lighting Controller

ST4K Parameters：

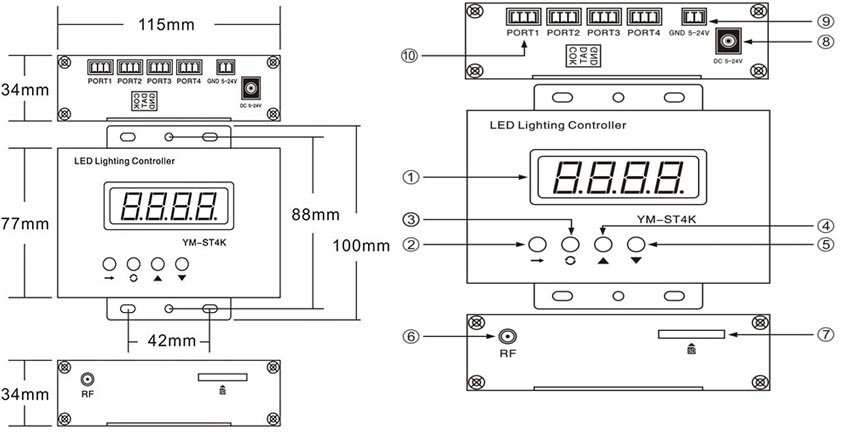

Panel function:

Ribbon Description：
1.Digital tube display.     2.Single mode / select program.    3.Cycle mode.                  4.Add speed(1-30).          5.Reduce speed(30-1).

6.Antenna port.               7.SD card                                          8.Power 1：DC 5-24V；9.Power 2：DC5-24V；（use one of power）

10.Output signal port.

Remote control settings:

1.the playback speed +   2.Single / cycle                            3.Play deceleration            4. Play the file plus

5. brightness plus             6. Clock plus                                7. Less Brightness             8. Clock Less

NOTE 1: “2”+“4”brightness add(1-10),“2”+“5”brightness reduce(10-1).
NOTE 2: switch of power, keeping press“3”and switch on power, the controller will
change mode. There are 3 mode, sender, receiver, and repeater.
NOTE 3: switch of power, keeping press“2”and switch on power, the controller will
reset: Speed 20, brightness 10, sender mode.

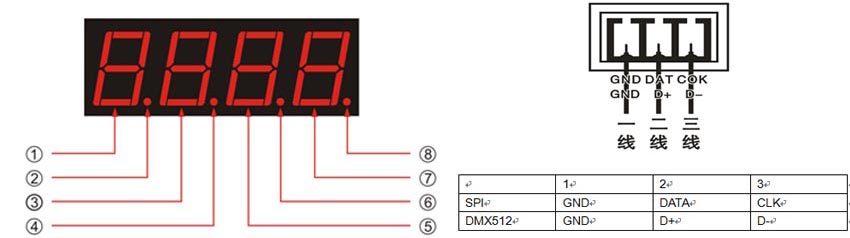

Digital tube define:

1.Number of program.(1,2,3,4,5,6,7,8,9,0,A,B,C,D,E,F)
2.Blinking indicator read SD card.
3.“”means single mode，“”means cycle mode.
5、7.Show plays speed.
