36 Channel PWM LED Decoder - LED Controller - Products

LED Controller

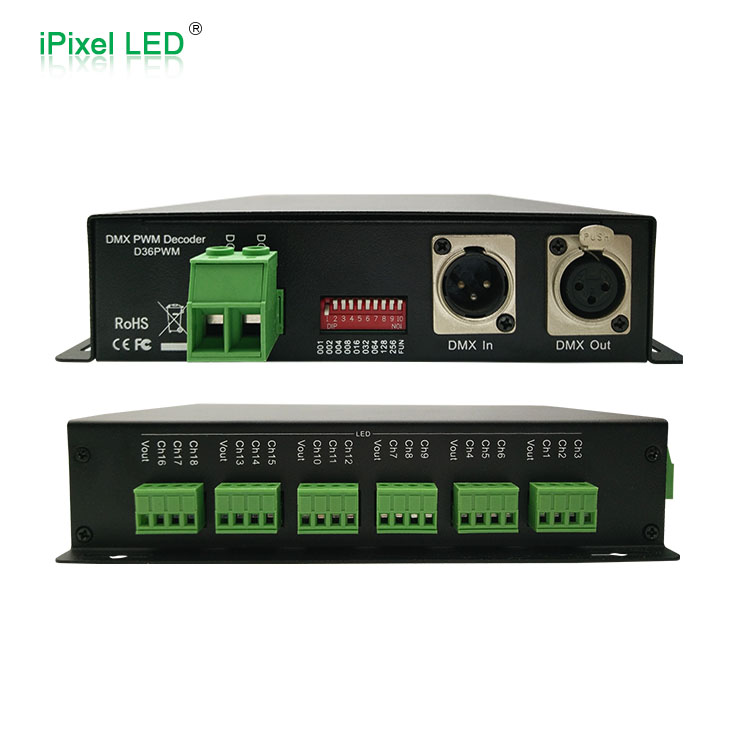

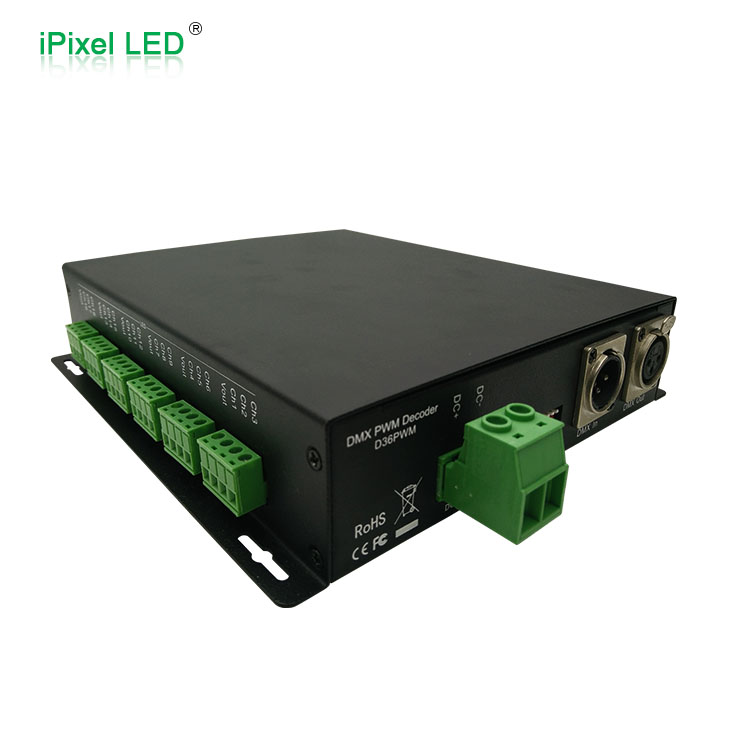

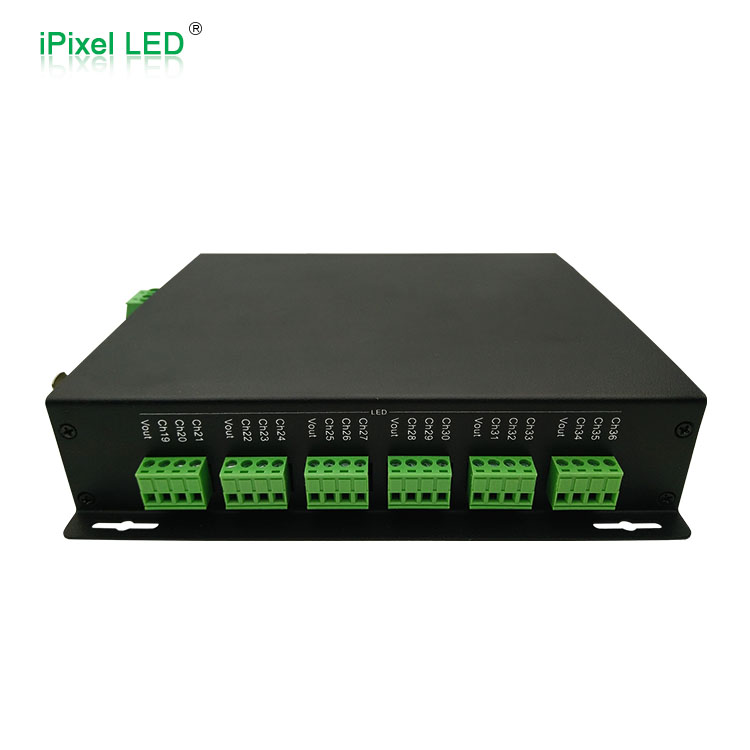

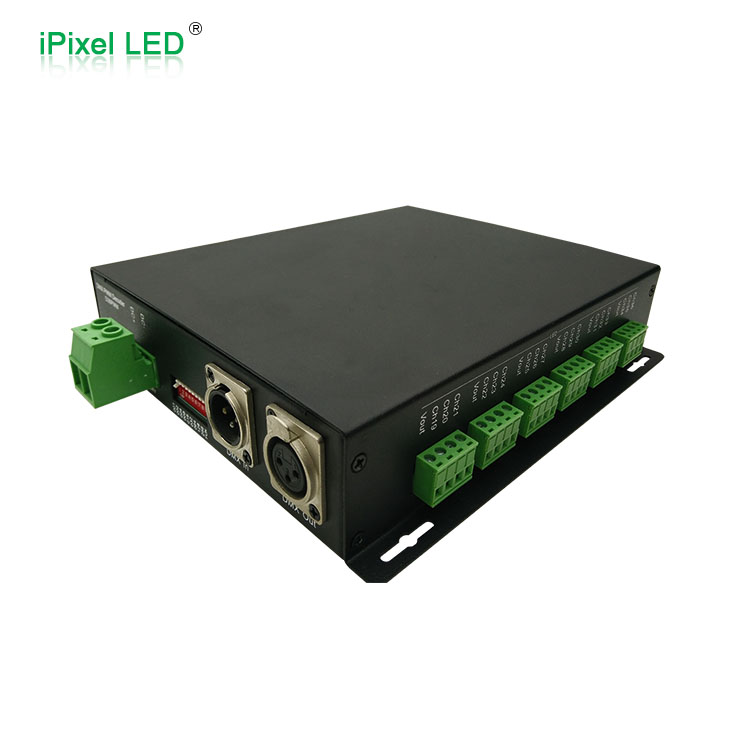

36 Channel PWM LED Decoder

Application:

1. DMX LED products.
2. LED pixel light,led pixel module.
3. LED strip,led light bar.

4.Outdoor Lighting Engineering.

Share to

Product Name	36 Channel PWM Led Decoder
Model	C-DMX-D36PWM
Power Supply	DC5-24V
Led Type	SMD5050, SMD3528, DIP
Led Color	RGB, Single, White
Dimension	21020245MM
Input Signal	DMX512/1990 Standard Digital Signal
Output Signal	0-24V,Max 5A/ch
Gray Level	256
Speed	1-40
Frequency	30KHz
Work mode	PWM Constant Voltage
Channel	36
Pixel	12
Warranty	1 Year

Safety Instructions and Limited Warranty

One year of limited manufacturers? warranty are granted to the purchaser of this product.
Warranty applies to material defect or incorrect assembly the manufacturer has caused or is to be held responsible for. Warranty is void if the PWM led decoder damaged through in appropriate handling and wrong usage, damage through electric(electri) current, or damage through any other cause.
